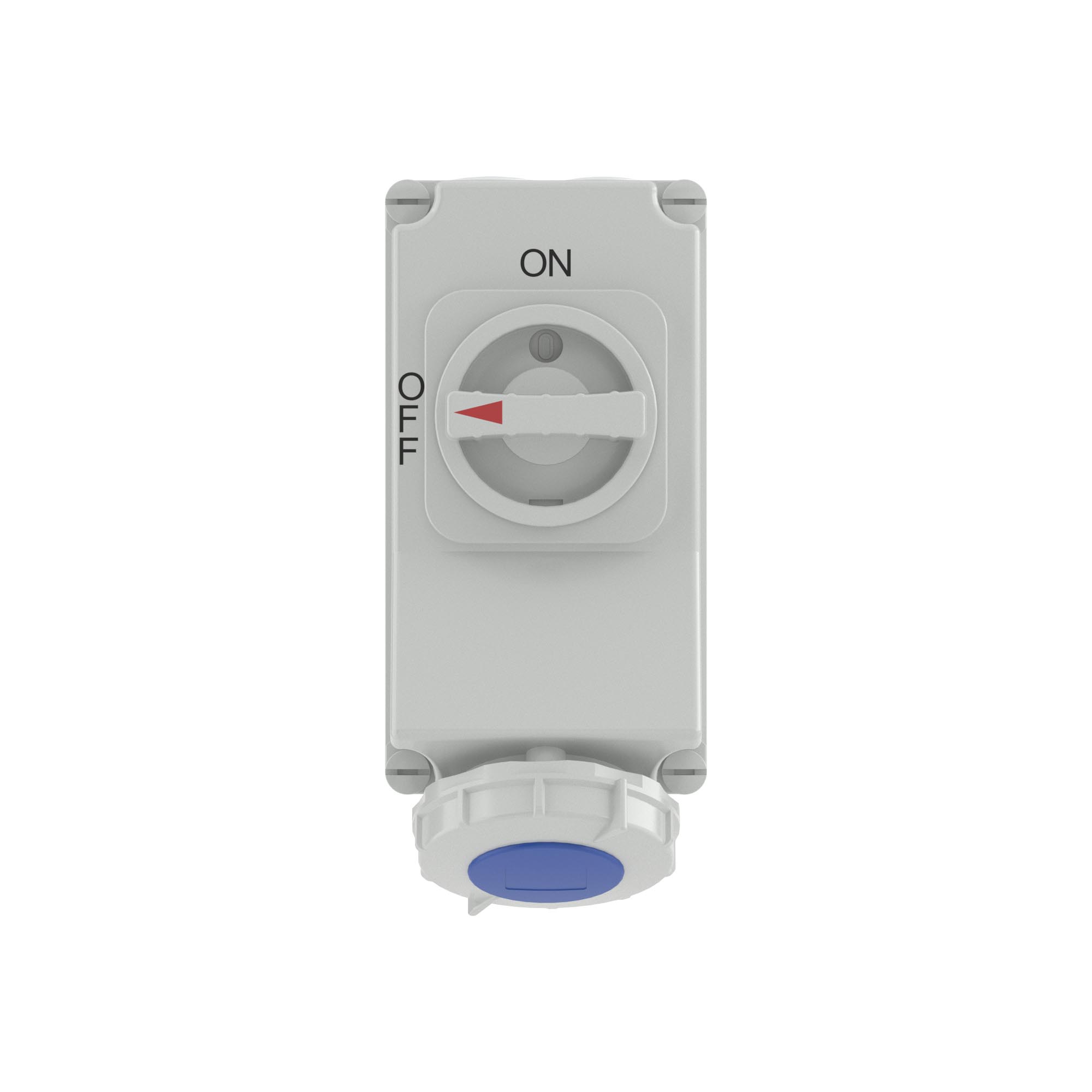

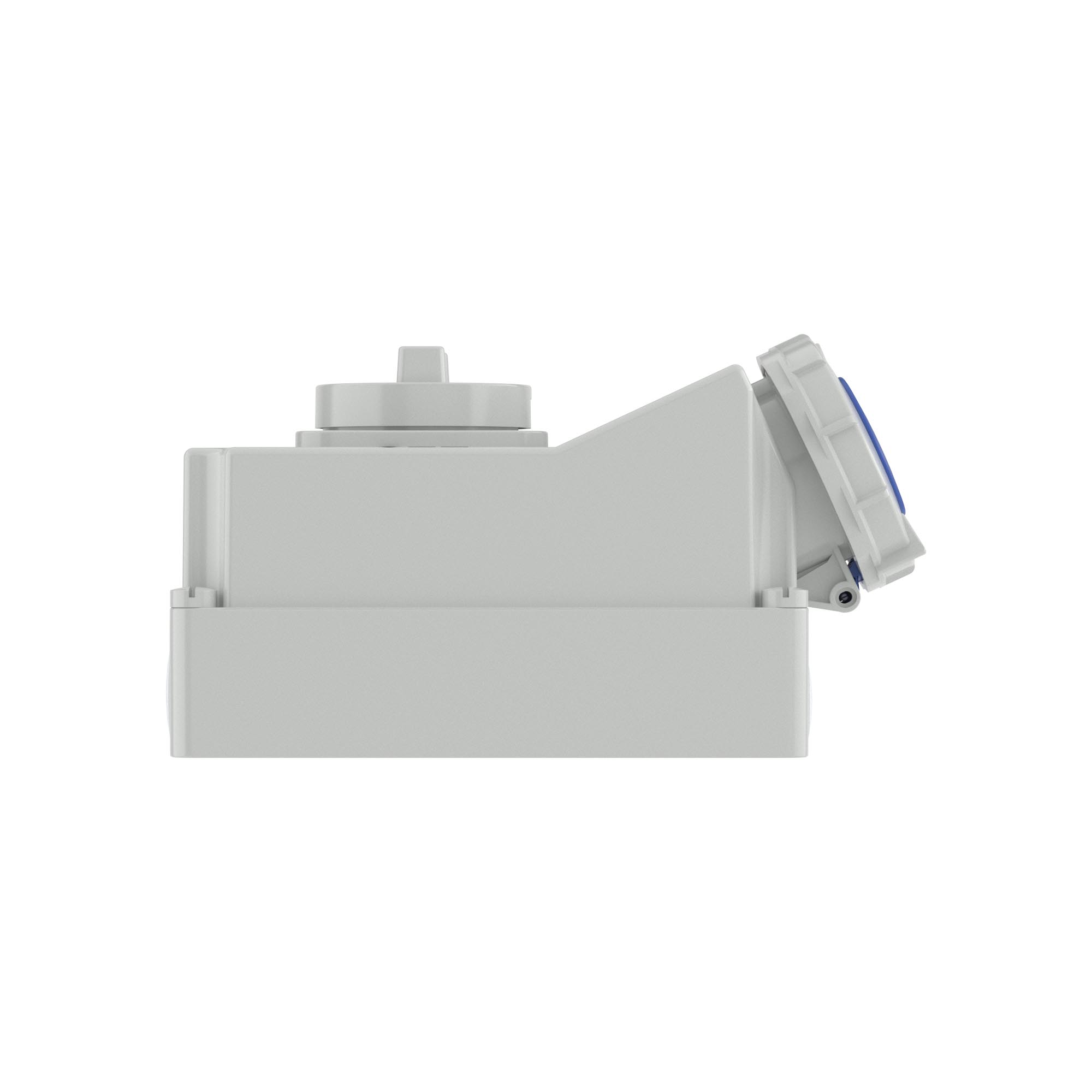

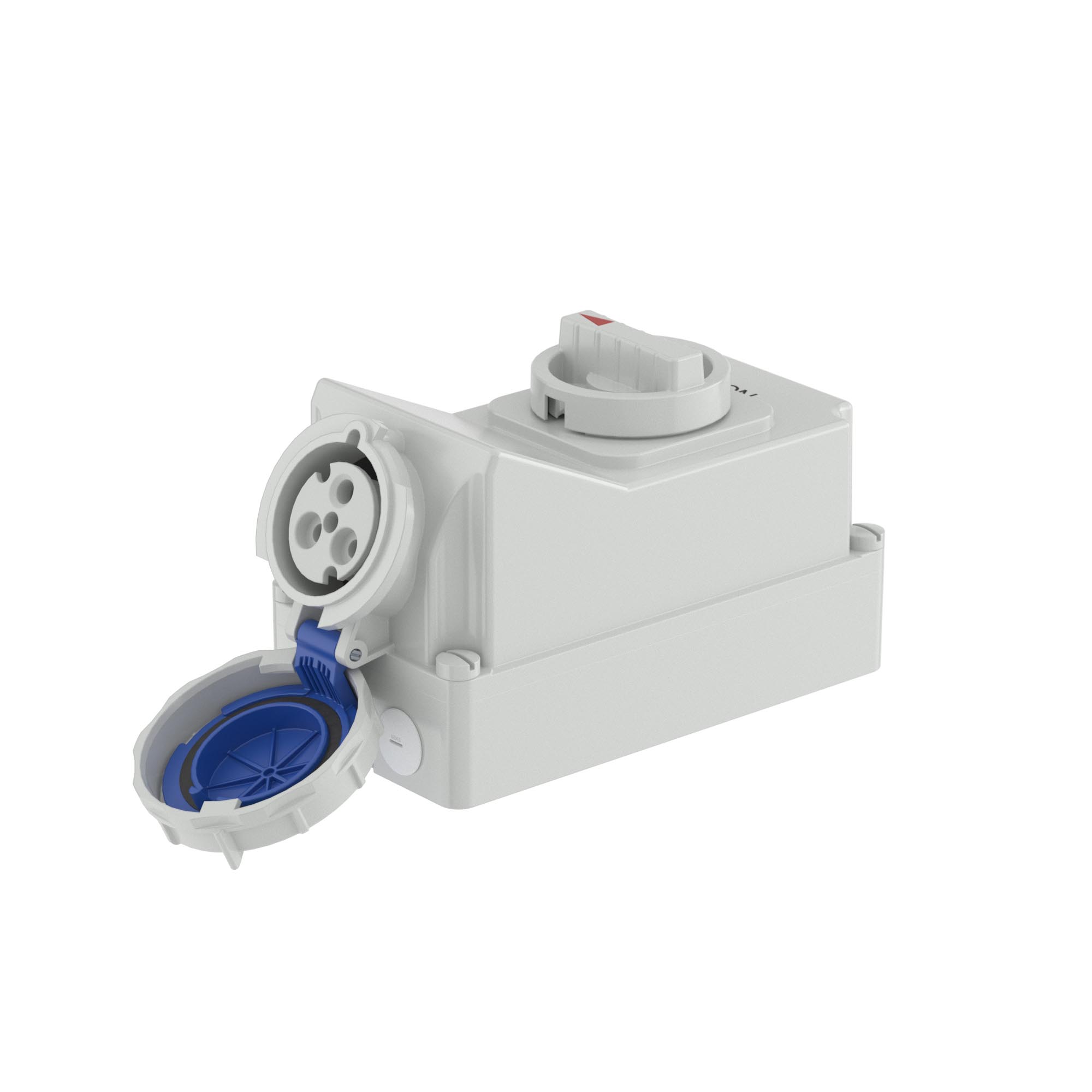

Interlocked socket. Surface mounting. IP67 16A 2P+E 230V
Code: DIS5611683
Interlocked socket. Surface mounting. IP67 16A 2P+E 230V
Code: DIS5611683
| Number of poles | 3 |
| Material | Plastic |
| IEC-amperage, A | 16 |
| Degree of protection (IP) | IP67 |
| Military model | No |
| Clock hour position, h | 6 |
| Identification colour | Blue |
| Voltage according to EN 60309-2 | 230 V (50+60 Hz) blue |
| Flange size vertical, mm | 240 |
| Flange size horizontal, mm | 106 |
| Angle of plug | Angled |
| Connection system | Screwed terminal |
| Contact less detection of the sense of rotation | No |
| For heavy conditions (according to VDE) | No |
| Phase inverter | No |
| Empty locations on mounting rail | No |
| Number of height units | 1 |
| With earth leakage switch | No |
| Total number of groups | 1 |
| Width of device | 106 |
| Height of device | 259 |
| Depth of device | 126 |
| Height, mm | 261 |
| Width, mm | 106 |
| Temperature of operation, °C | 60 |
| Shock resistance, J | 2 |
| Depth, mm | 145 |
| Product type | Surface mounting interlocked socket |
| Voltage | 230 V |

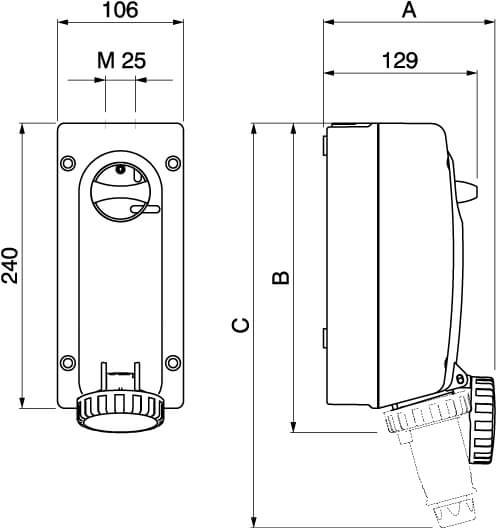

Drawings
| Seria | Name | DWG | Eplan |
|---|---|---|---|
|
