Interlocked socket. Surface mounting. IP44 32A 2P+E 230V

Code: DIS5603283
Interlocked socket. Surface mounting. IP44 32A 2P+E 230V
  • To ask a question
Number of poles 3
Material Plastic
IEC-amperage, A 32
Degree of protection (IP) IP44
Military model No
Clock hour position, h 6
Identification colour Blue
Voltage according to EN 60309-2 230 V (50+60 Hz) blue
Flange size vertical, mm 240
Flange size horizontal, mm 106
Angle of plug Angled
Connection system Screwed terminal
Contact less detection of the sense of rotation No
For heavy conditions (according to VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Width of device 106
Height of device 266
Depth of device 136
Height, mm 256
Width, mm 106
Temperature of operation, °C 60
Shock resistance, J 2
Depth, mm 129
Product type Surface mounting interlocked socket
Voltage 230 V

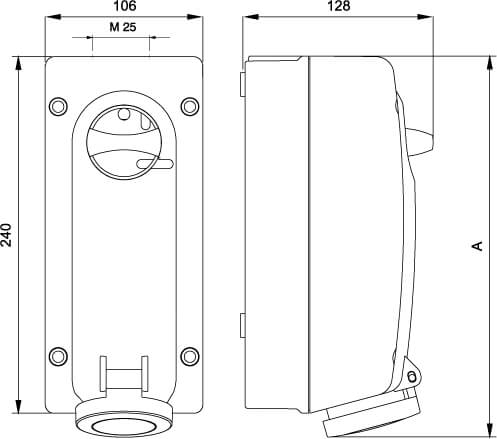

Drawings
