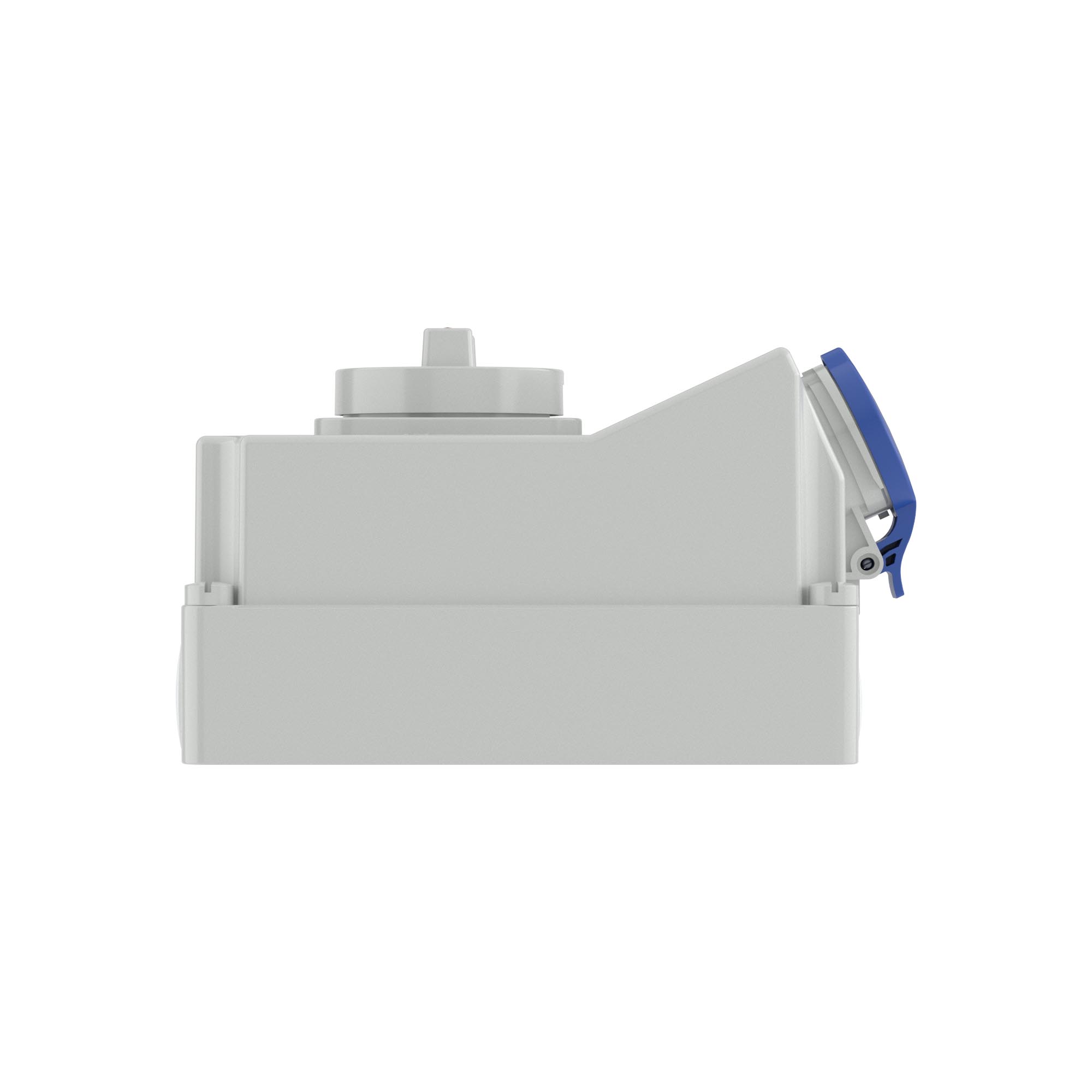

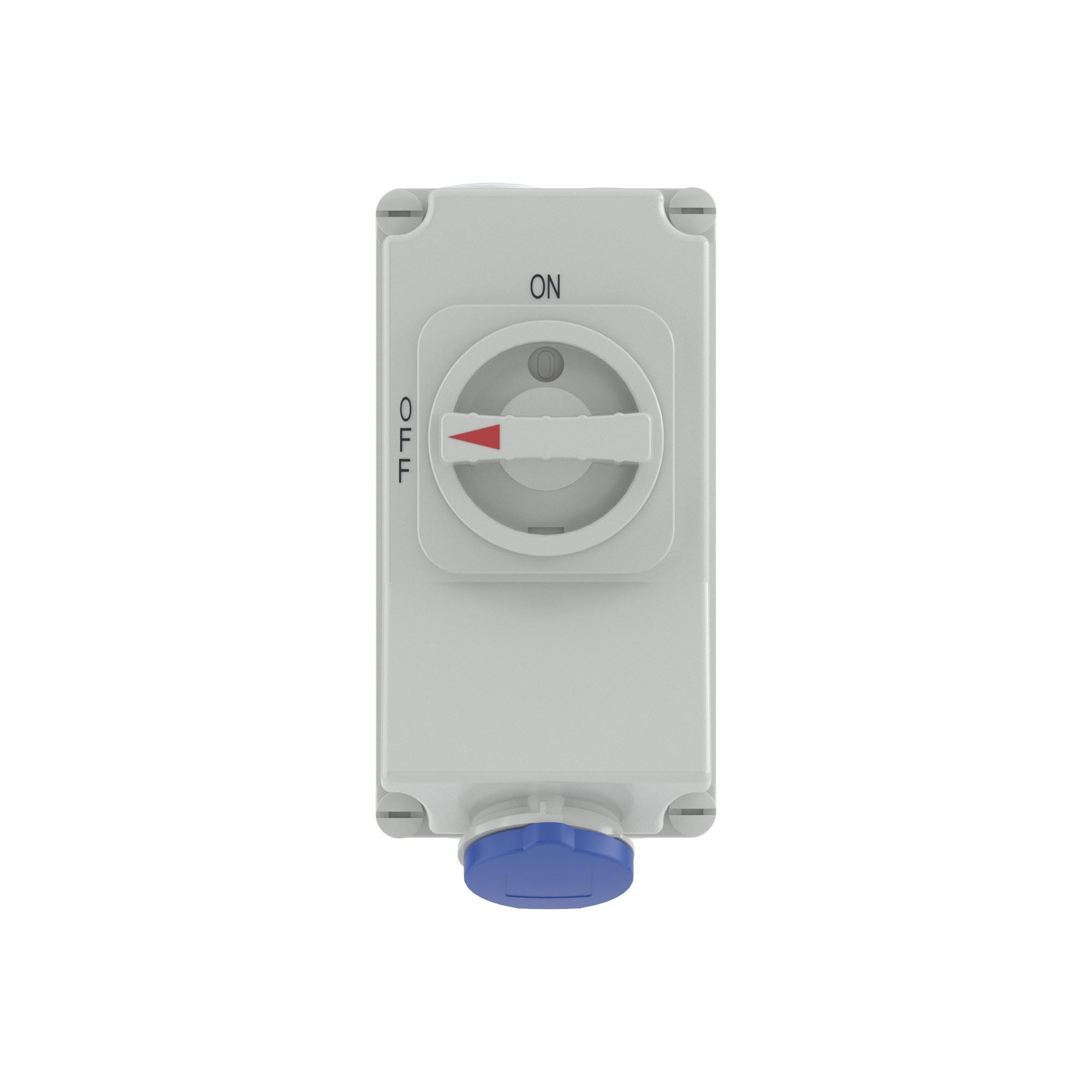

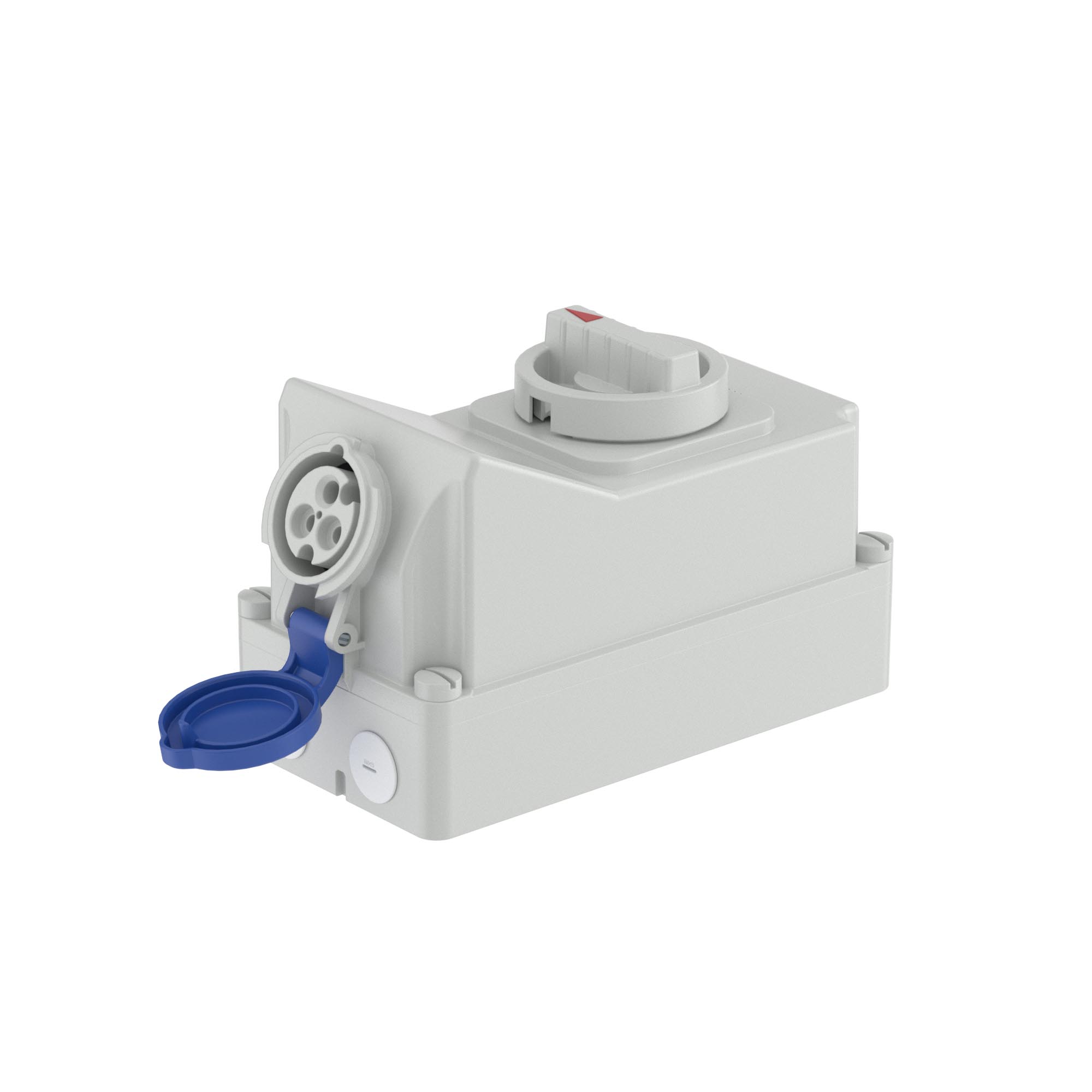

Interlocked socket. Surface mounting. IP44 16A 2P+E 230V

Code: DIS5601683
Interlocked socket. Surface mounting. IP44 16A 2P+E 230V
Interlocked socket. Surface mounting. IP44 16A 2P+E 230V
Height, mm 256
Width, mm 106
Temperature of operation, °C 60
Shock resistance, J 2
Depth, mm 129
Number of poles 3
Material Plastic
IEC-amperage, A 16
Degree of protection (IP) IP44
Military model No
Clock hour position, h 6
Identification colour Blue
Voltage acc. EN 60309-2 230 V (50+60 Hz) blue
Flange size vertical, mm 240
Flange size horizontal, mm 106
Angle of plug Angled
Connection system Screwed terminal
Contact less detection of the sense of rotation No
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Width of device 135
Height of device 160
Depth of device 350

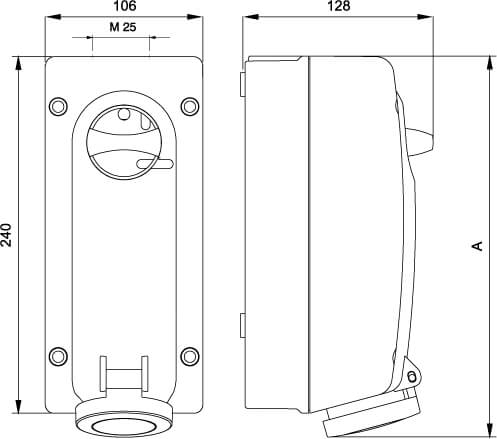

Drawings
Seria Name Eplan DWG
Quadro - industrial plugs
The System "Quadro"
RAR
27.23 MB
Quadro - industrial plugs
The system "Quadro" industrial connectors
ZIP
31.52 MB
Certificates
Name Document
The certificate of expert opinion on an electrical plug connectors for industrial use series “SCAME PARRE S.p.A.”
PDF
5.39 MB
Certificate of conformity to for the sockets and plugs (50 – 400 V) SCAME PARRE S.P.A.
PDF
4.91 MB
