Switched socket outlets with interlock IP67 125A 2P+E 230V

Code: DIS50312583

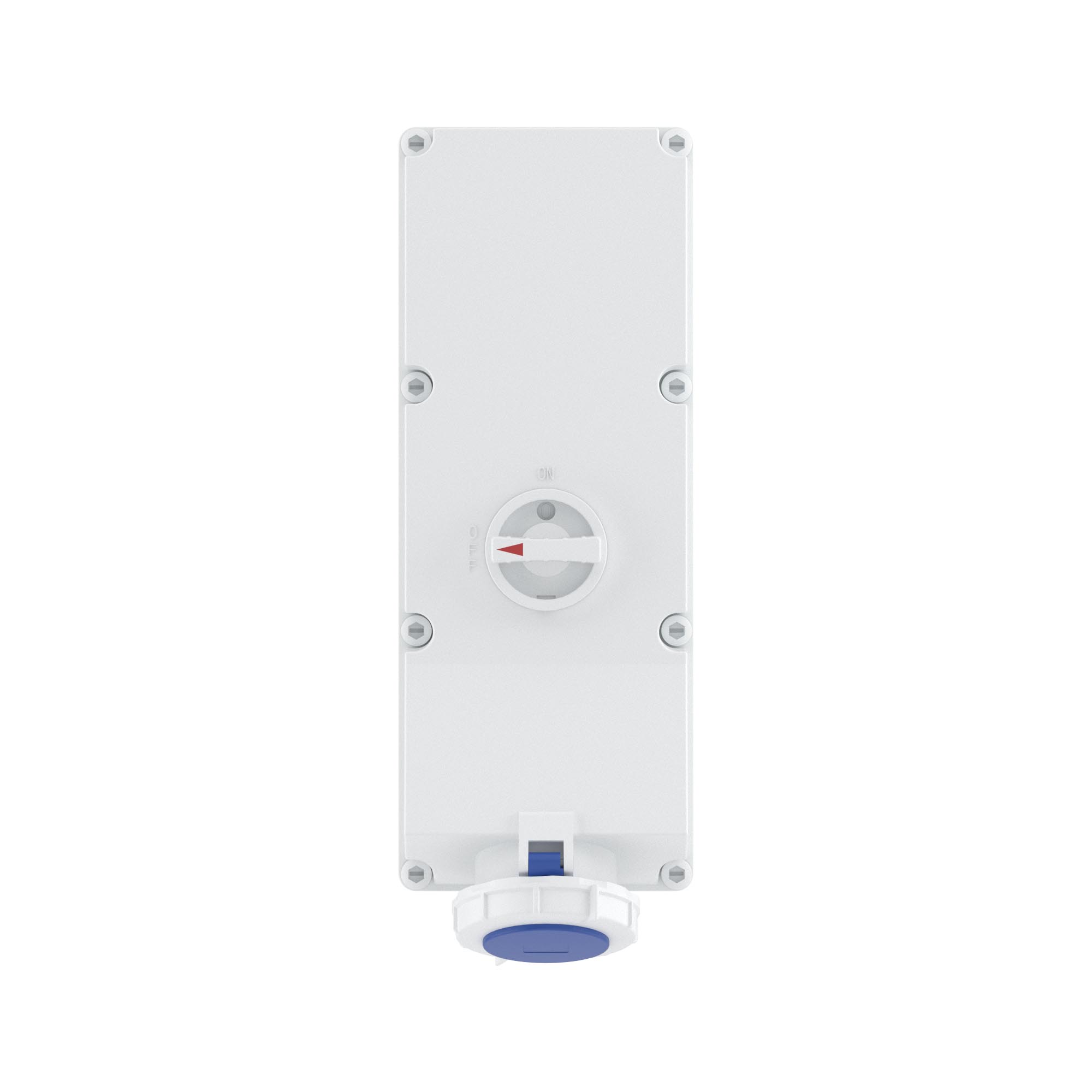

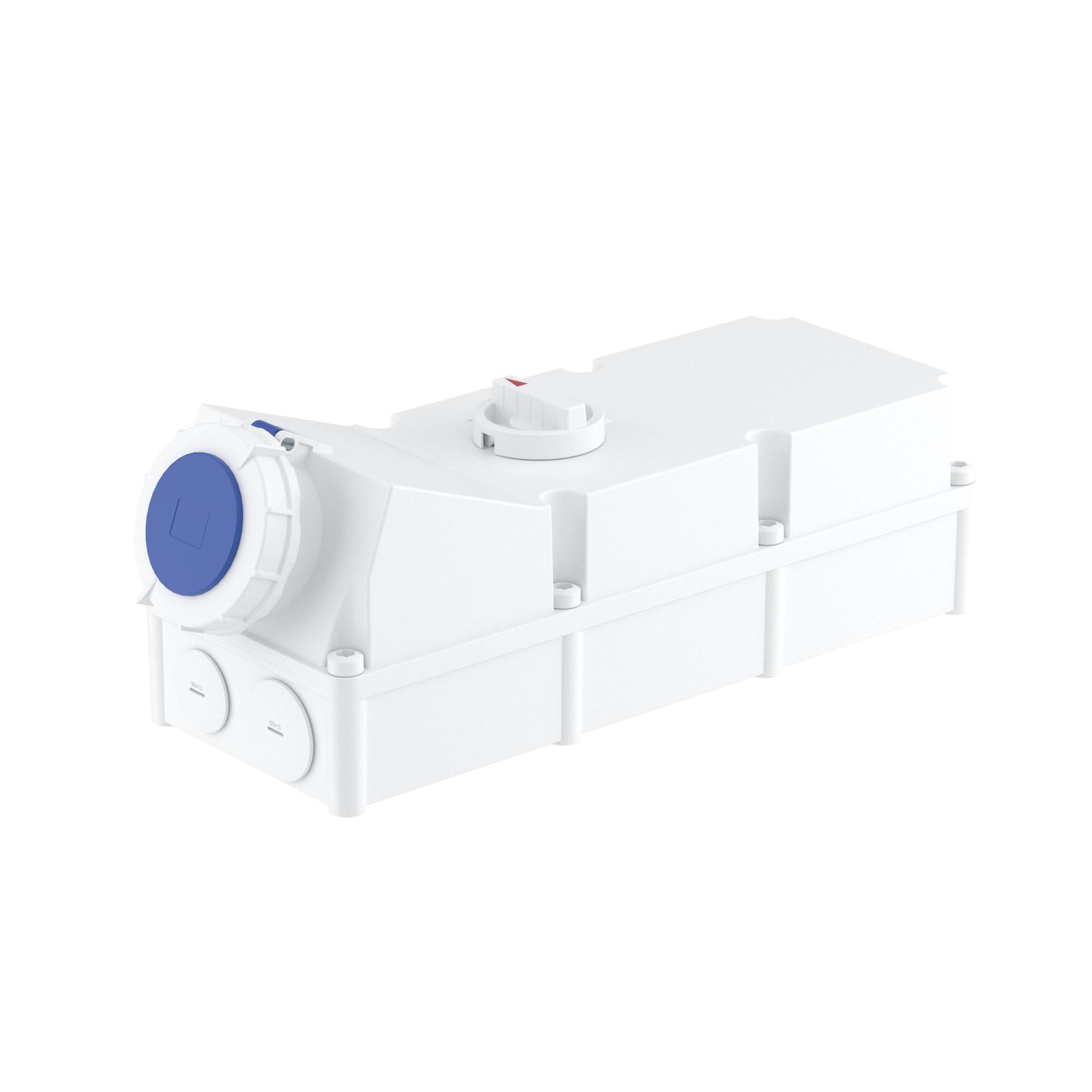

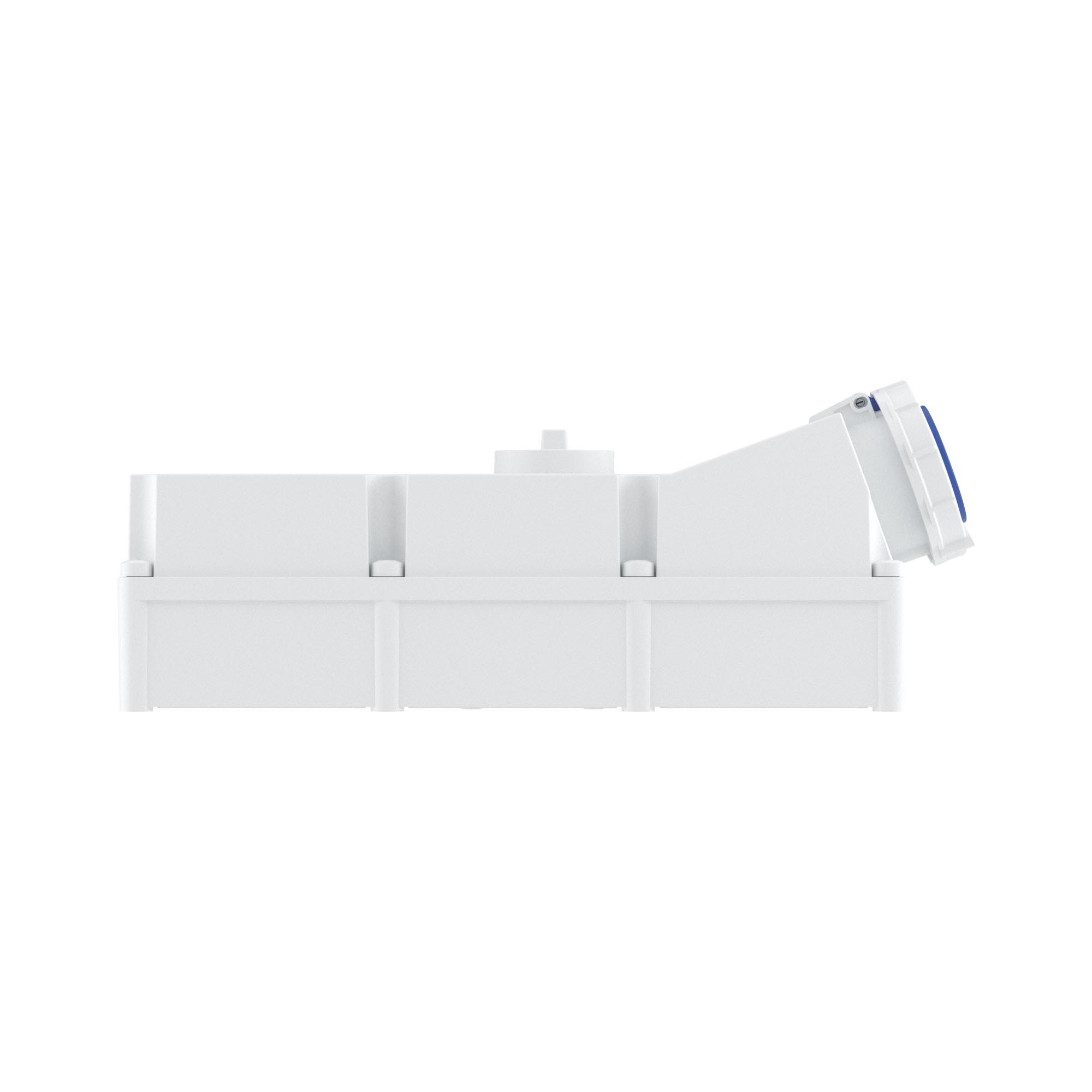

Switched socket outlets with interlock IP67 125A 2P+E 230V
Switched socket outlets with interlock IP67 125A 2P+E 230V
Color gray
Material of case GRP
Height, mm 800
Width, mm 280
Temperature of mounting, °C -50...+60
Ingress Protection rating, IP IP67
Temperature of operation, °C -50 - +60
Temperature of operation, °C 90
Shock resistance, J 20
Depth, mm 253
Number of poles 3
Material Plastic
IEC-amperage, A 125
Degree of protection (IP) IP67
Military model No
Clock hour position, h 6
Identification colour Blue
Voltage acc. EN 60309-2 230 V (50+60 Hz) blue
Flange size vertical, mm 575
Flange size horizontal, mm 280
Angle of plug Angled
Connection system Screwed terminal
Contact less detection of the sense of rotation No
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Width of device 70
Height of device 70
Depth of device 153

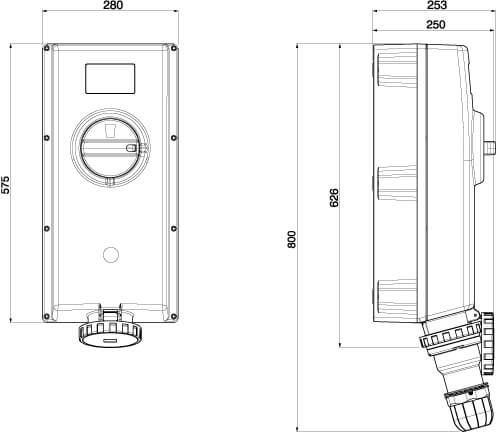

Drawings
