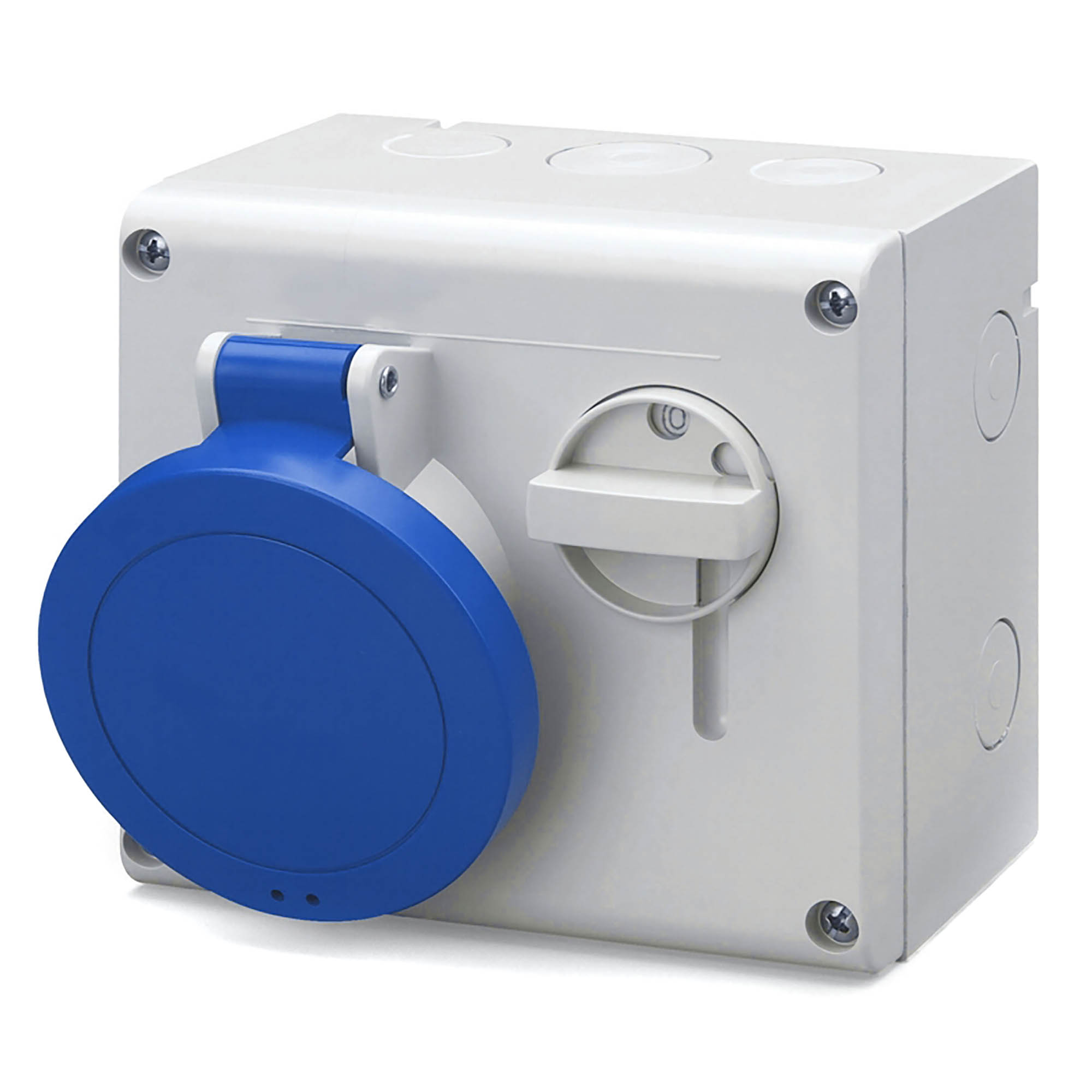

Interlocked socket. Surface mounting. IP44 16A 2P+E 230V

Code: DIS5001683
Interlocked socket. Surface mounting. IP44 16A 2P+E 230V
Interlocked socket. Surface mounting. IP44 16A 2P+E 230V
Height, mm 125
Width, mm 136
Temperature of operation, °C 60
Shock resistance, J 2
Depth, mm 85
Number of poles 3
Material Plastic
IEC-amperage, A 16
Degree of protection (IP) IP44
Military model No
Clock hour position, h 6
Identification colour Blue
Voltage acc. EN 60309-2 230 V (50+60 Hz) blue
Flange size vertical, mm 125
Flange size horizontal, mm 136
Angle of plug Angled
Connection system Screwed terminal
Contact less detection of the sense of rotation No
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Width of device 110
Height of device 110
Depth of device 133

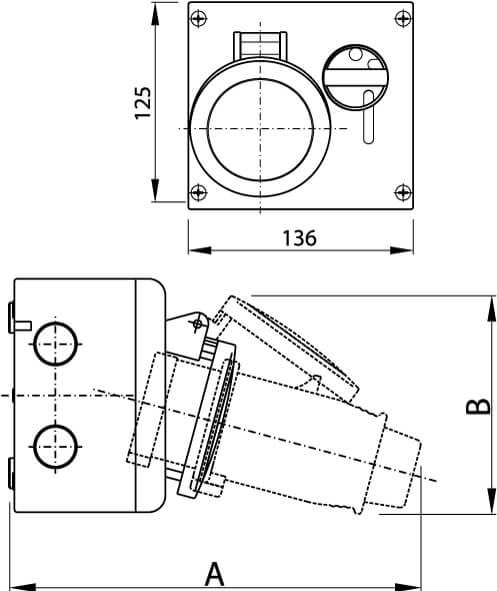

Drawings
