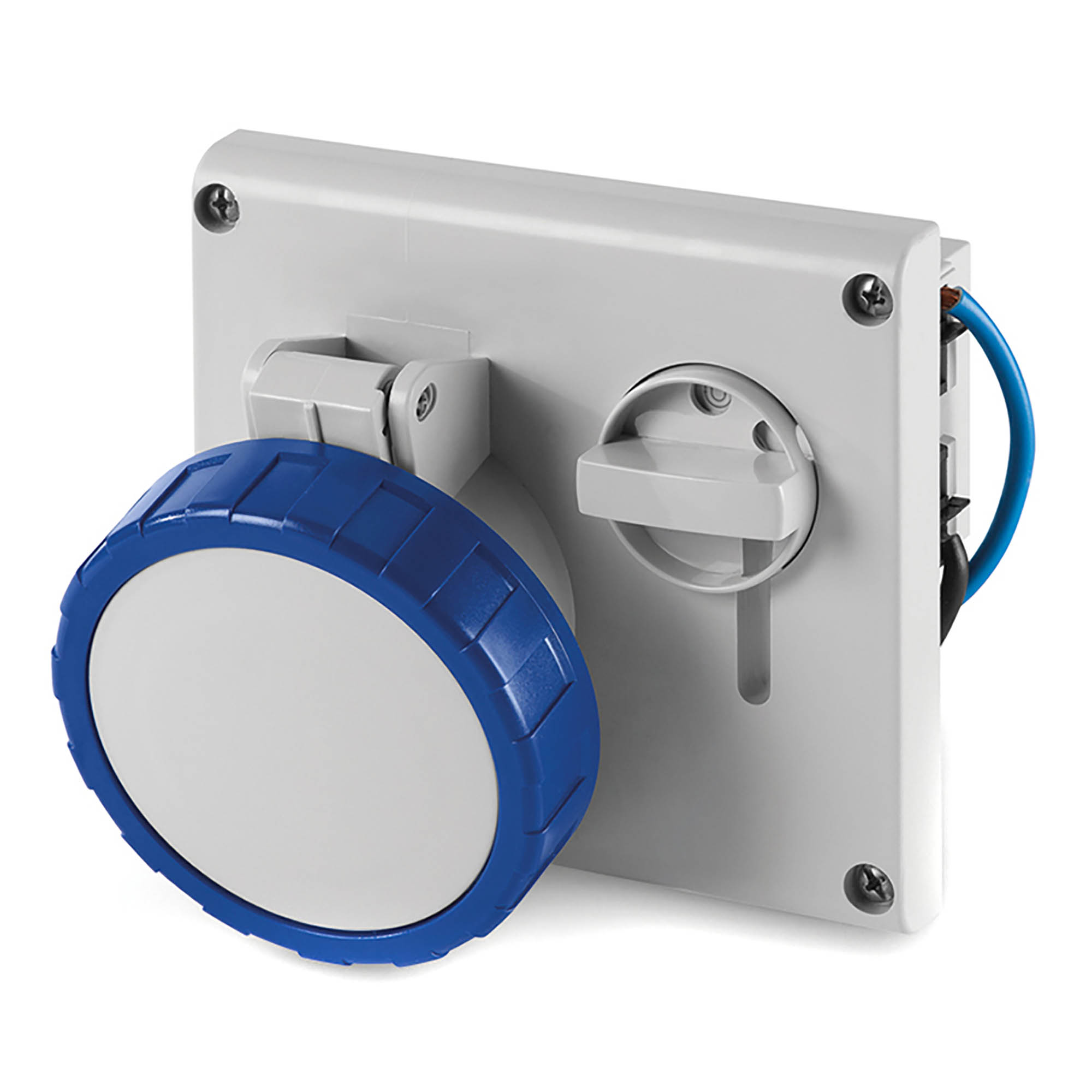

Interlocked socket. Flush mounting. IP67 32A 2P+E 230V

Code: DIS4053283
Interlocked socket. Flush mounting. IP67 32A 2P+E 230V
  • To ask a question
Number of poles 3
Material Plastic
IEC-amperage, A 32
Degree of protection (IP) IP67
Military model No
Clock hour position, h 6
Identification colour Blue
Voltage according to EN 60309-2 230 V (50+60 Hz) blue
Flange size vertical, mm 125
Flange size horizontal, mm 136
Angle of plug Angled
Connection system Screwed terminal
Contact less detection of the sense of rotation No
For heavy conditions (according to VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Width of device 136
Height of device 125
Depth of device 105
Height, mm 125
Width, mm 136
Temperature of operation, °C 60
Shock resistance, J 2
Depth, mm 119
Product type Flush-mounting interlocked socket
Voltage 230 V

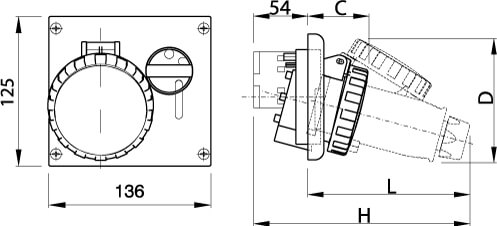

Drawings
