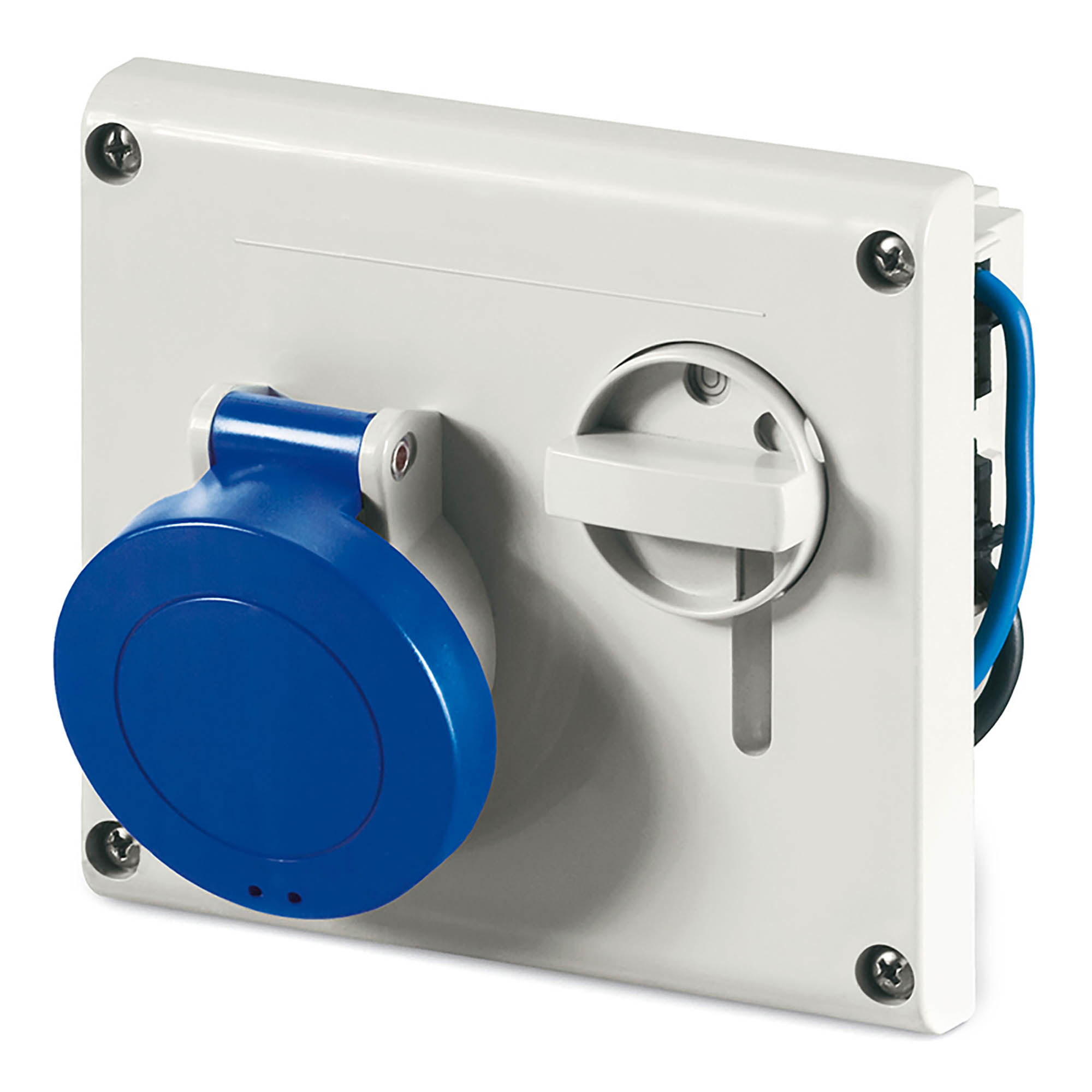

Interlocked socket. Flush mounting. IP44 16A 2P+E 230V

Code: DIS4001683
Number of poles 3
Material Plastic
IEC-amperage, A 16
Degree of protection (IP) IP44
Military model No
Clock hour position, h 6
Identification colour Blue
Voltage acc. EN 60309-2 230 V (50+60 Hz) blue
Flange size vertical, mm 125
Flange size horizontal, mm 136
Angle of plug Angled
Connection system Screwed terminal
Contact less detection of the sense of rotation No
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Width of device 70
Height of device 70
Depth of device 153
Height, mm 125
Width, mm 136
Temperature of operation, °C 60
Shock resistance, J 2
Depth, mm 105

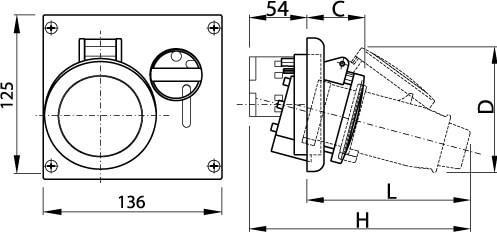

Drawings
