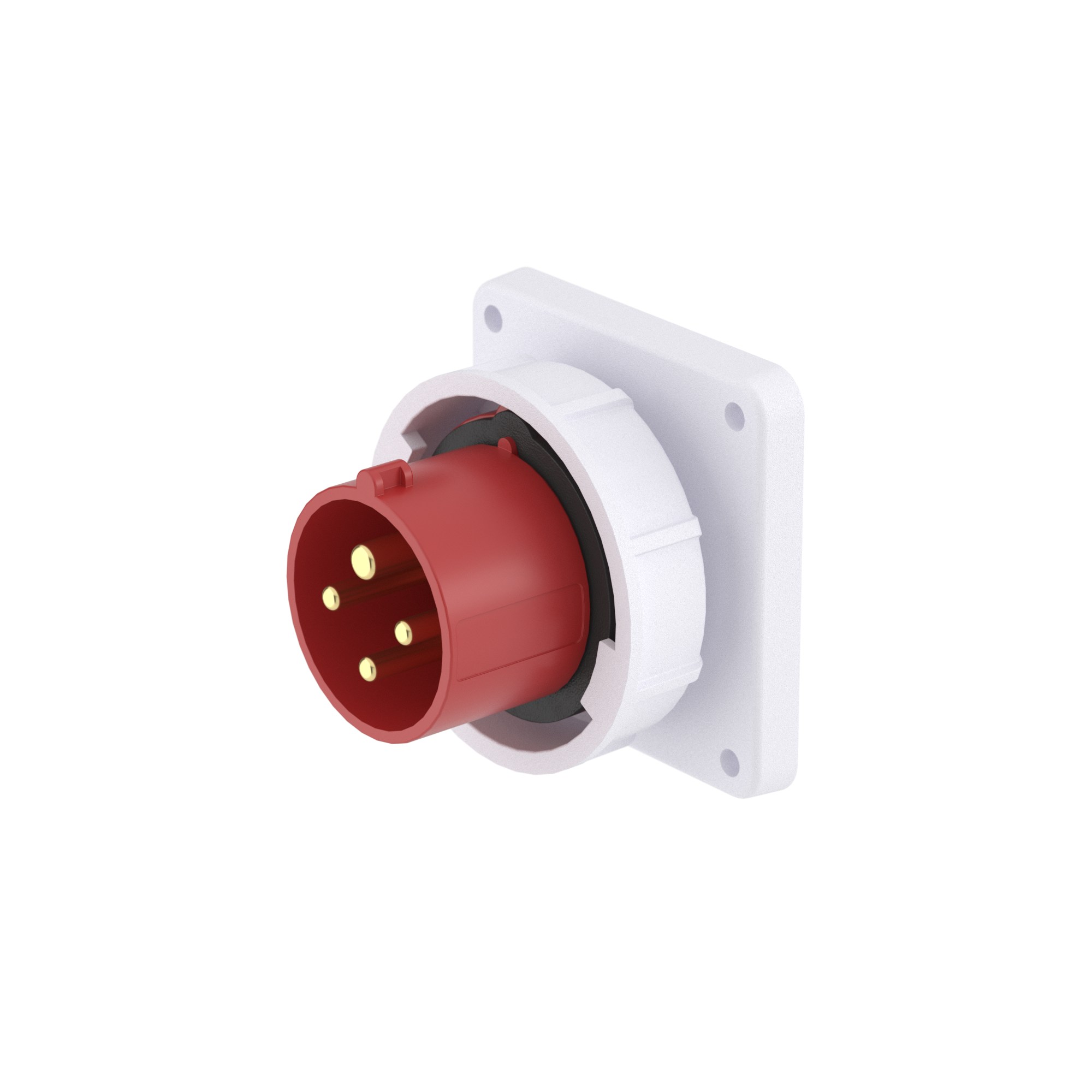

APPLIANCE INLET 3P+E IP66/IP67 32A 6h

Code: DIS2483296

APPLIANCE INLET 3P+E IP66/IP67 32A 6h

Code: DIS2483296
Width 75
Height 75
Depth 74
Lockable No
With hinged lid No
With socket outlet No
Number of phases 3
With child-protection No
Frequency 50
Cable entry Swivel
Extension possible No
With transparent cover No
Fault current protection No
Number of poles 4
Contact less detection of the sense of rotation No
Material Plastic
IEC-amperage, A 32
For heavy conditions (according to VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Degree of protection (IP) IP67
Total number of groups 1
Clock hour position, h 6
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Drill hole distance vertical 60
Drill hole distance horizontal 60
Width of device 93
Height of device 93
Depth of device 90
Angle of plug Right-angled
Connection system Screwed terminal
Product type Flush-mounting plug
Voltage 400V
