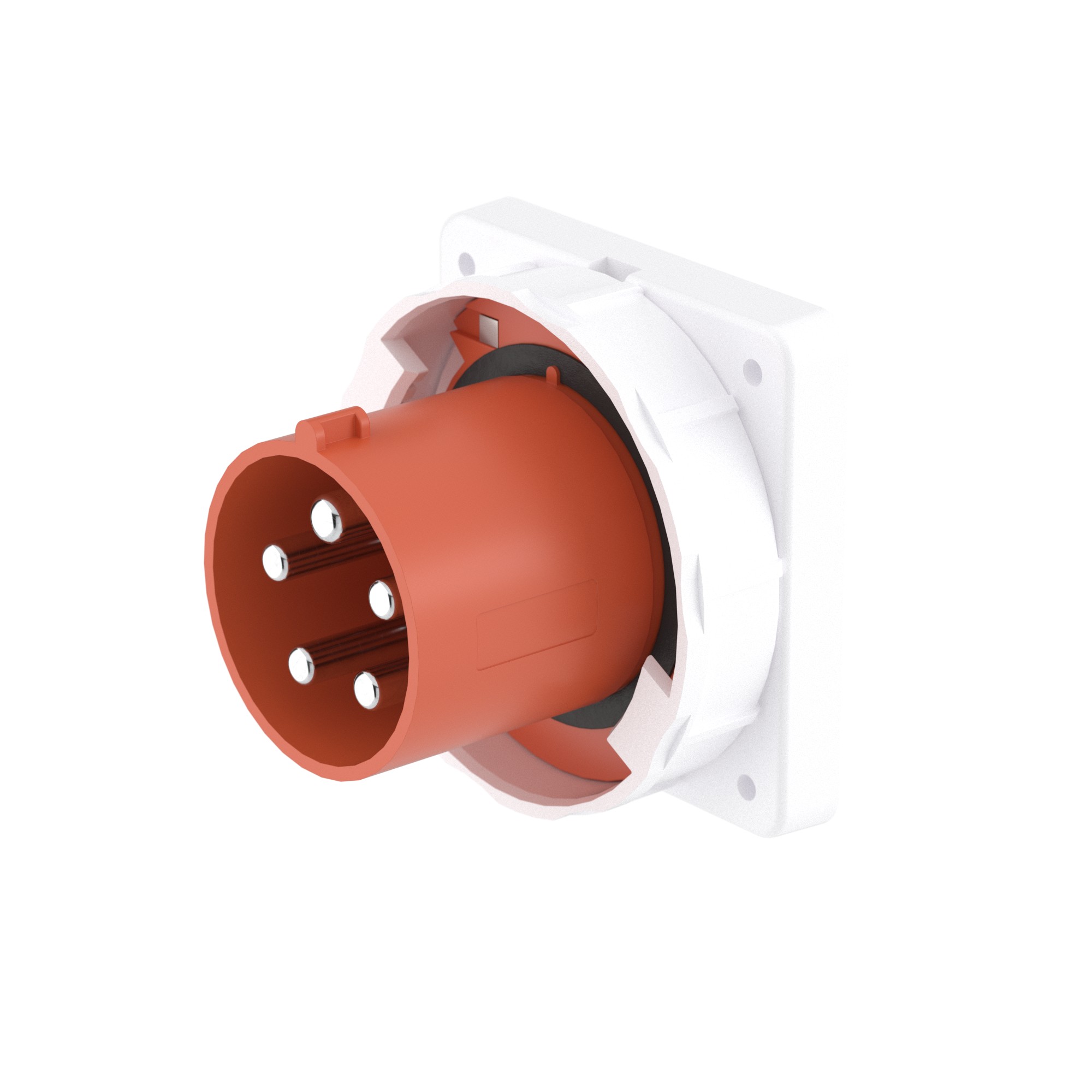

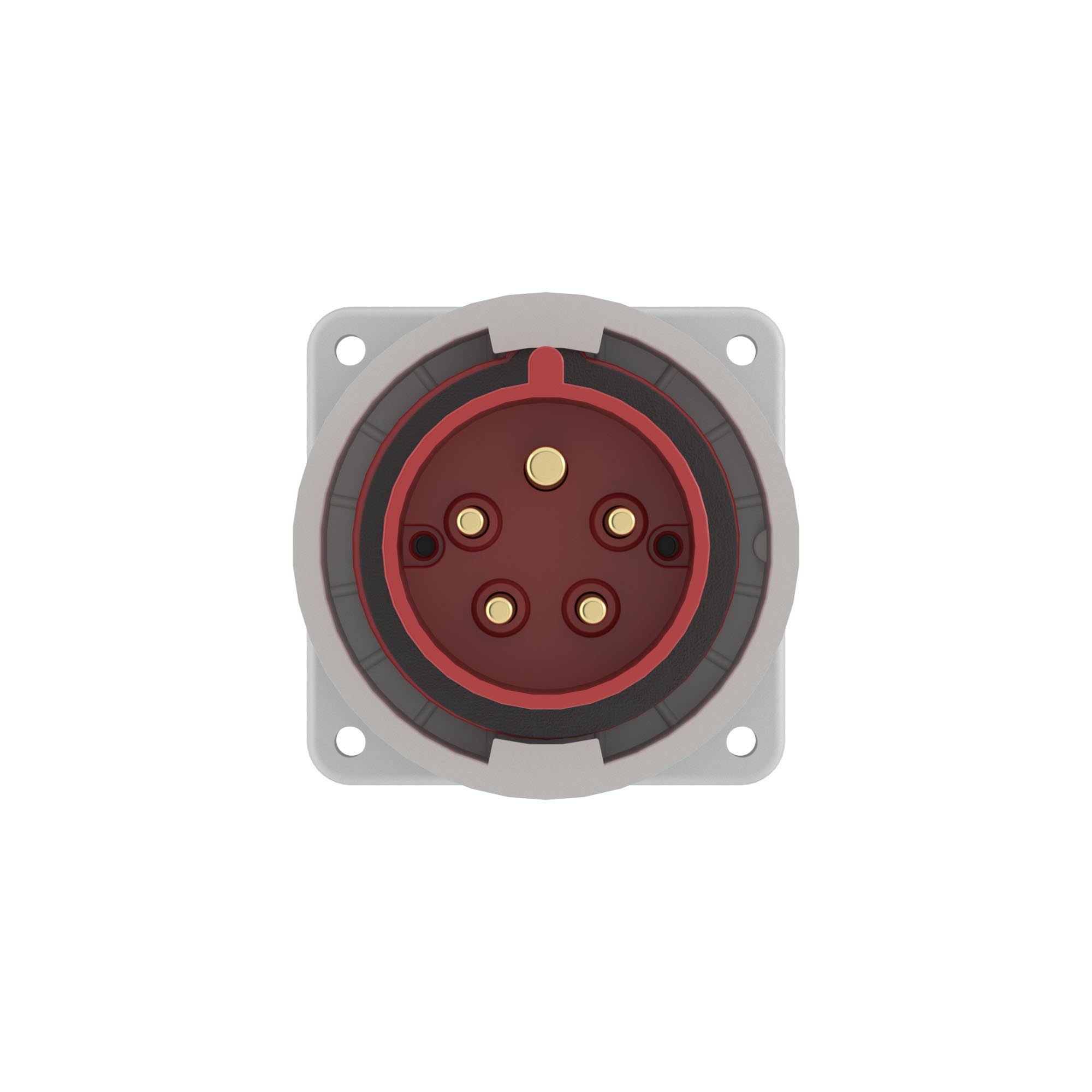

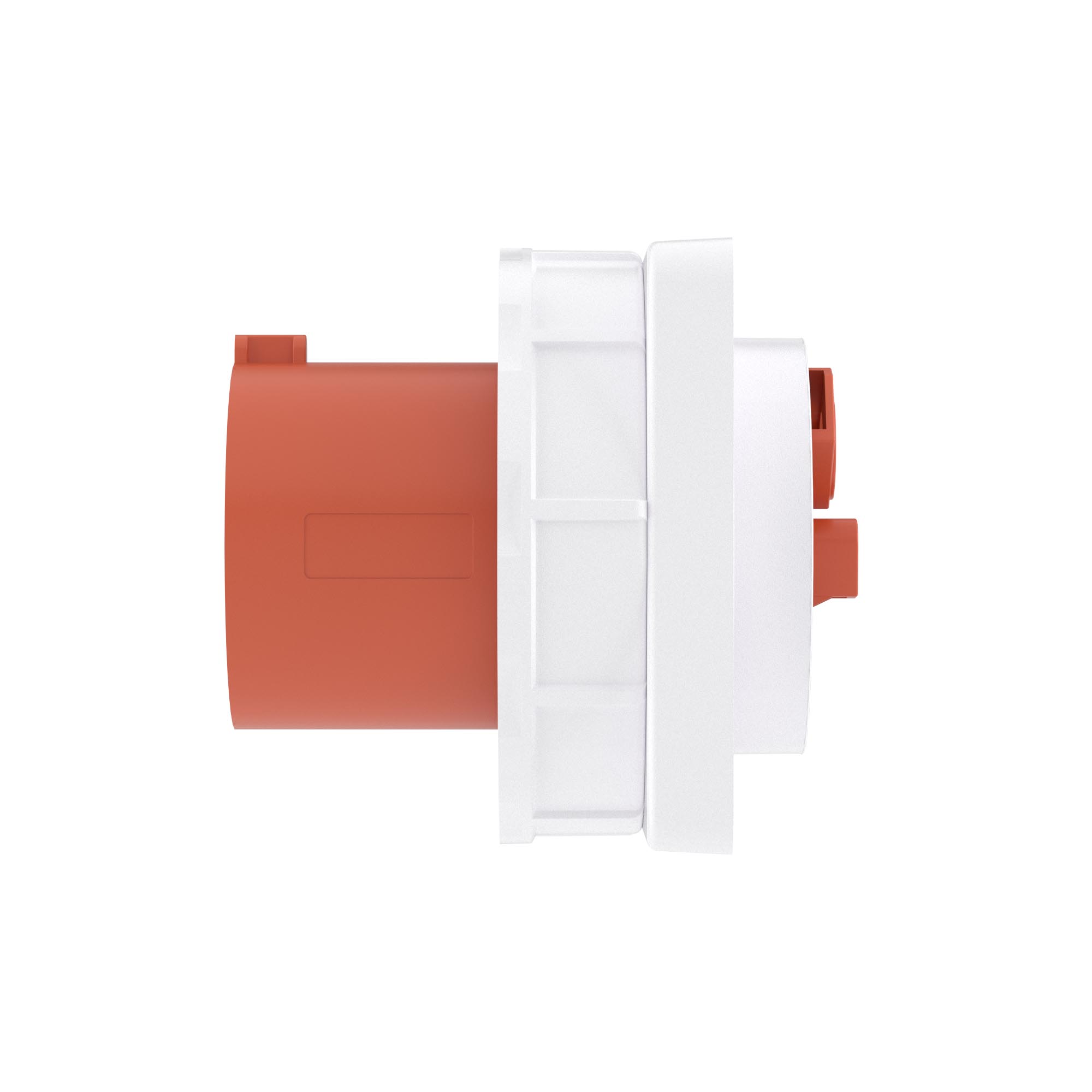

APPLIANCE INLET 3P+E+N IP66/IP67 125A 6h

Code: DIS24612597

APPLIANCE INLET 3P+E+N IP66/IP67 125A 6h

Code: DIS24612597
Width 114
Height 114
Depth 114
Lockable No
With hinged lid No
With socket outlet No
Number of phases 3
With child-protection No
Frequency 50
Cable entry Swivel
Extension possible No
With transparent cover No
Fault current protection No
Number of poles 4
Contact less detection of the sense of rotation No
Material Plastic
IEC-amperage, A 125
For heavy conditions (according to VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Degree of protection (IP) IP67
Total number of groups 1
Clock hour position, h 6
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Drill hole distance vertical 100
Drill hole distance horizontal 100
Width of device 128
Height of device 128
Depth of device 114
Angle of plug Right-angled
Connection system Screwed terminal
Product type Flush-mounting plug
Voltage 400V
Accessories

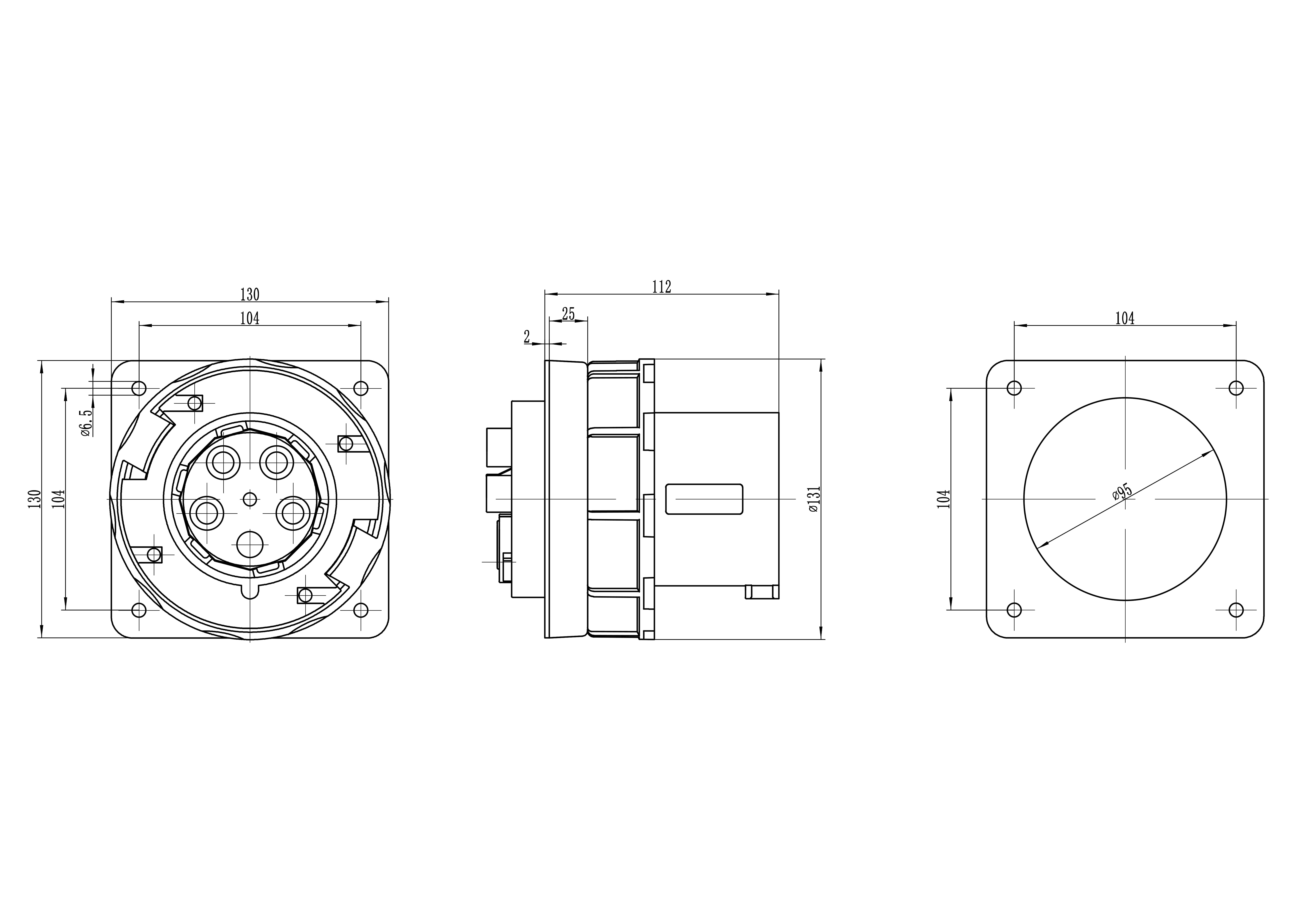

Drawings
