Code: DIS24612596
Width, mm114
Height, mm114
Depth, mm150.5
LockableNo
With hinged lidNo
With socket outletNo
Number of phases3
With child-protectionNo
Frequency, MHz50
Extension possibleNo
With transparent coverNo
Switch-off functionNo
Fault current protectionNo
Number of poles4
Contact less detection of the sense of rotationNo
MaterialPlastic
IEC-amperage, A125
For heavy conditions (in accordance with VDE)No
Phase inverterNo
Empty locations on mounting railNo
Number of height units1
With earth leakage switchNo
Degree of protection (IP)IP67
Total number of groups1
Clock hour position, hClock hour position, hClock hour position, hClock hour position, hClock hour position, hClock hour position, h6
Identification colourRed
Voltage acc. EN 60309-2400 V (50+60 Hz) red

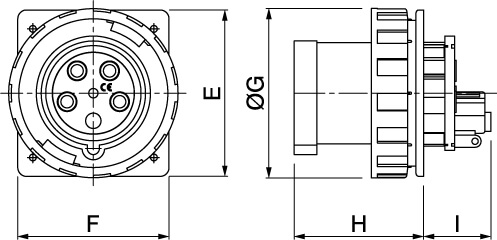

Drill hole distance vertical, mm100
Drill hole distance horizontal, mm100
Width of device, mm114
Height of device, mm114
Depth of device, mm150,5
