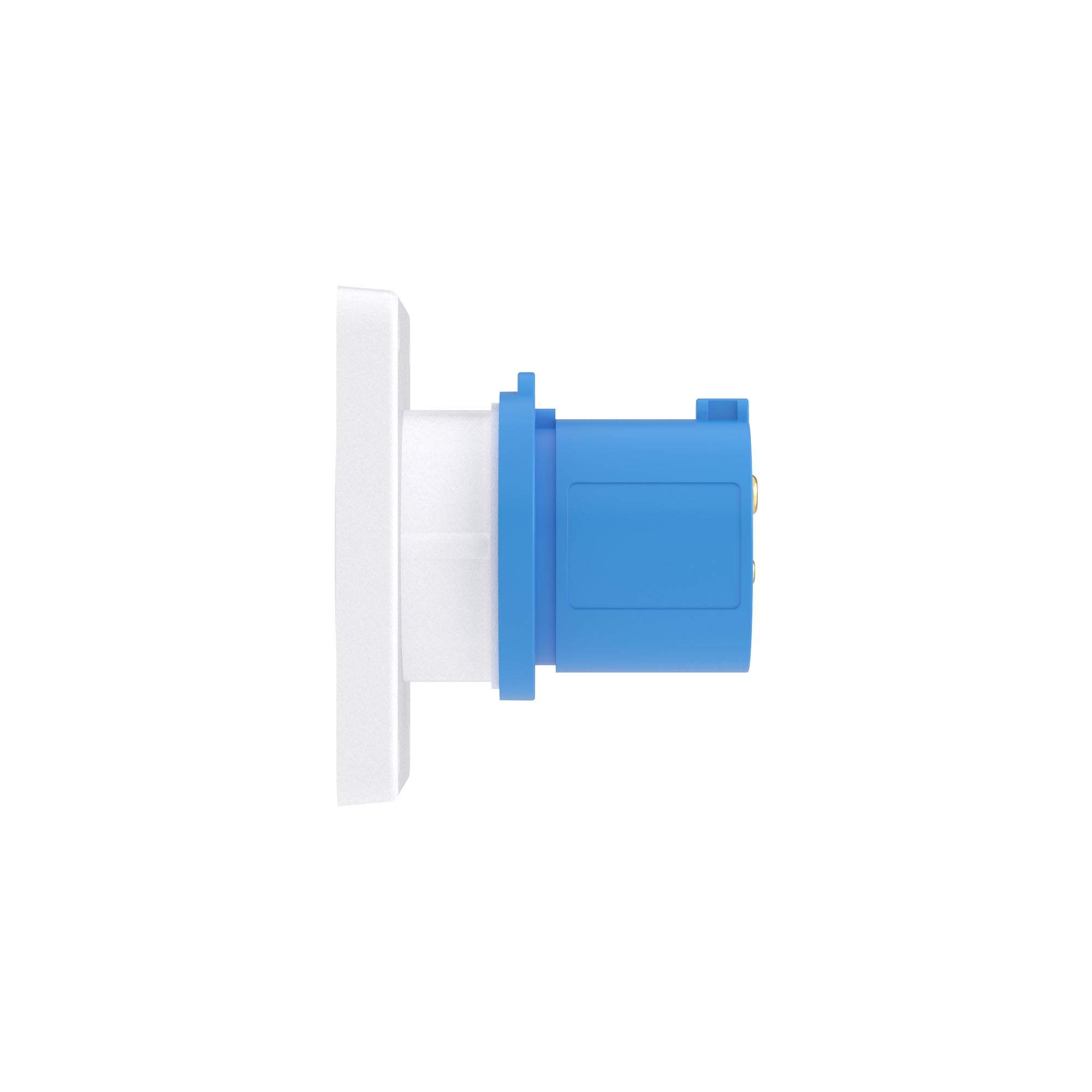

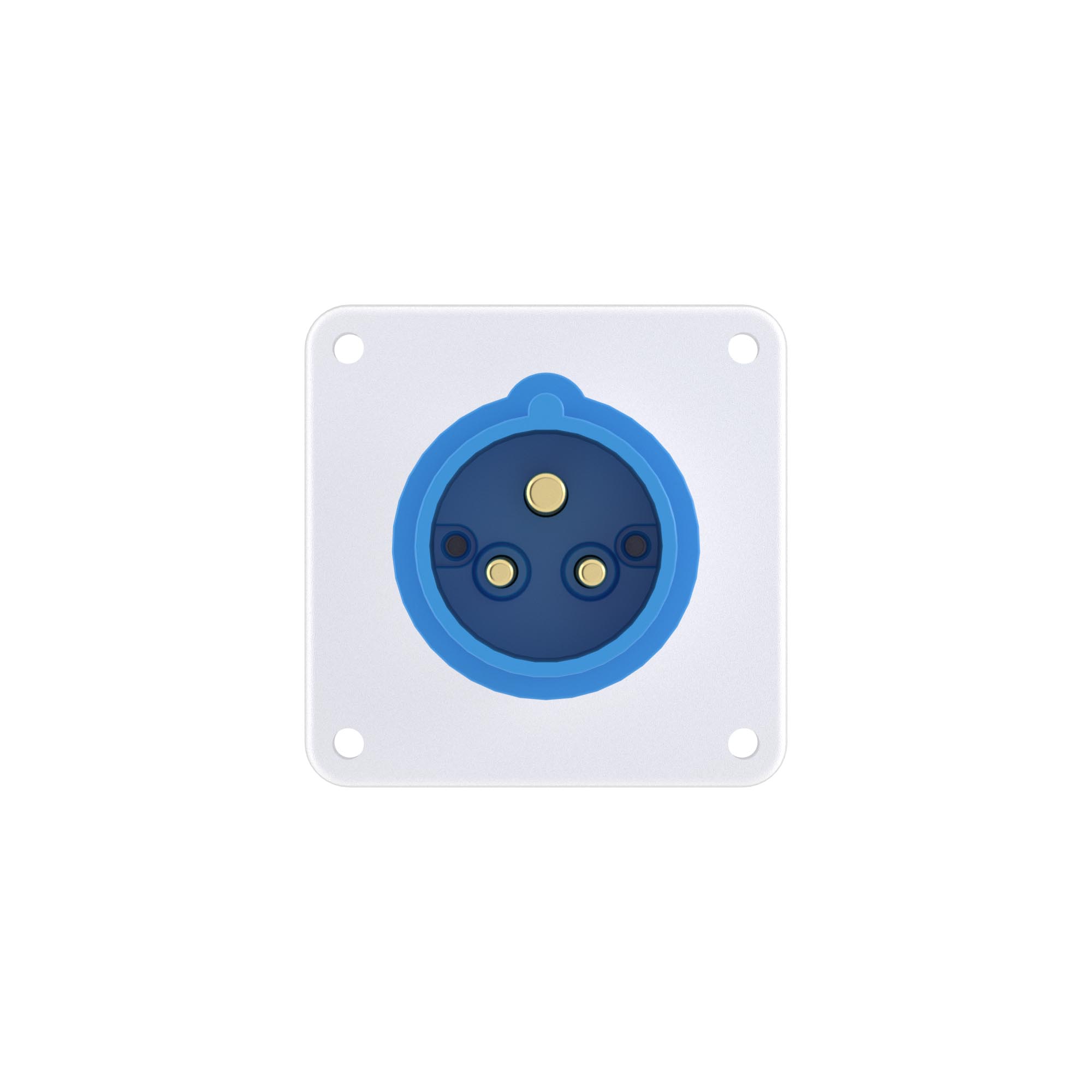

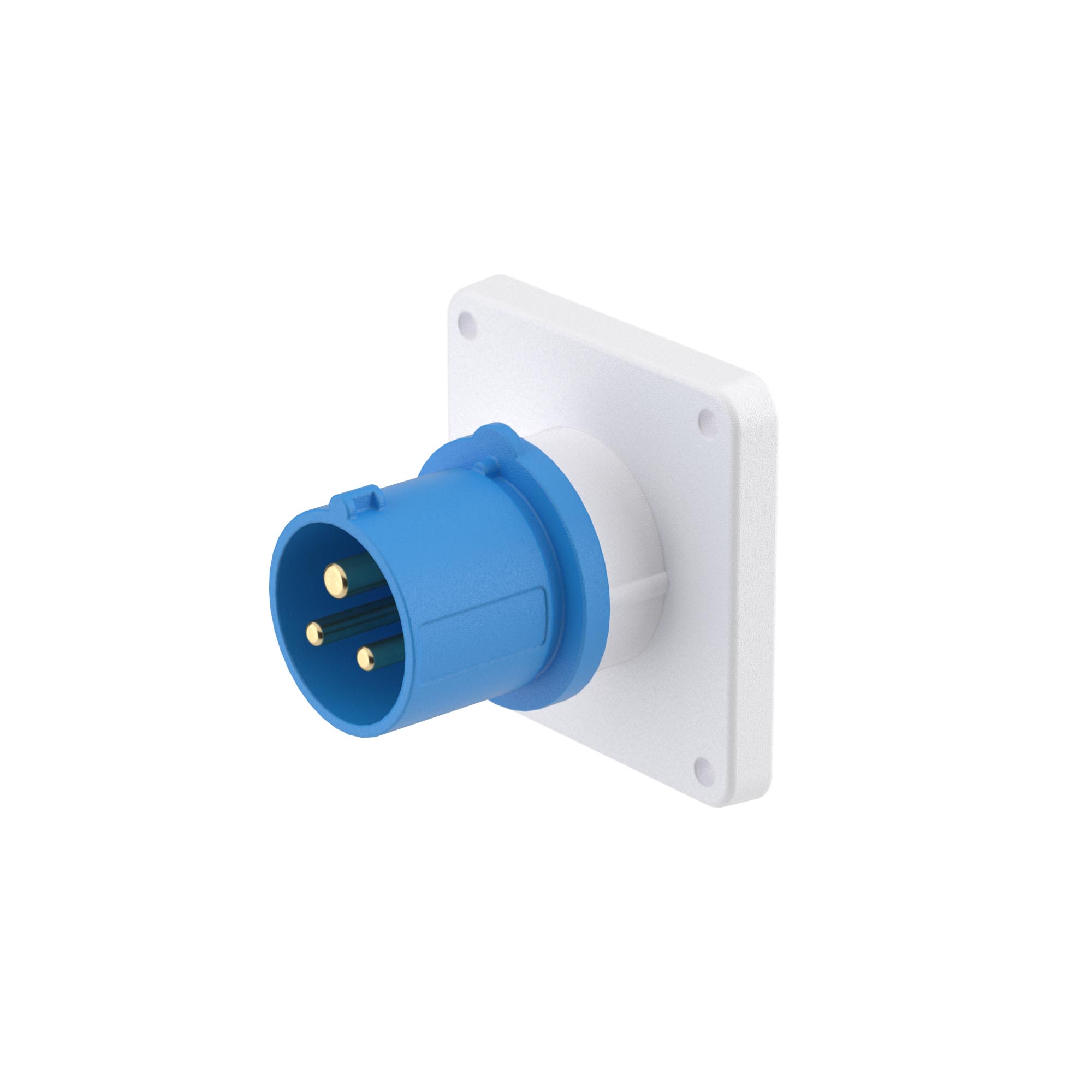

Flanged plug IP44 16A 2P+E 230V

Code: DIS2431693
Width, mm 75
Height, mm 75
Depth, mm 75
Lockable No
With hinged lid No
With socket outlet No
Number of phases 1
With child-protection No
Frequency, Hz 50
Cable entry Gland nut
Extension possible No
With transparent cover No
Switch-off function No
Fault current protection No
Number of poles 3
Contact less detection of the sense of rotation No
Material Plastic
IEC-amperage, A 16
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Degree of protection (IP) IP44
Total number of groups 1
Clock hour position, h 6
Identification colour Blue
Voltage acc. EN 60309-2 230 V (50+60 Hz) blue

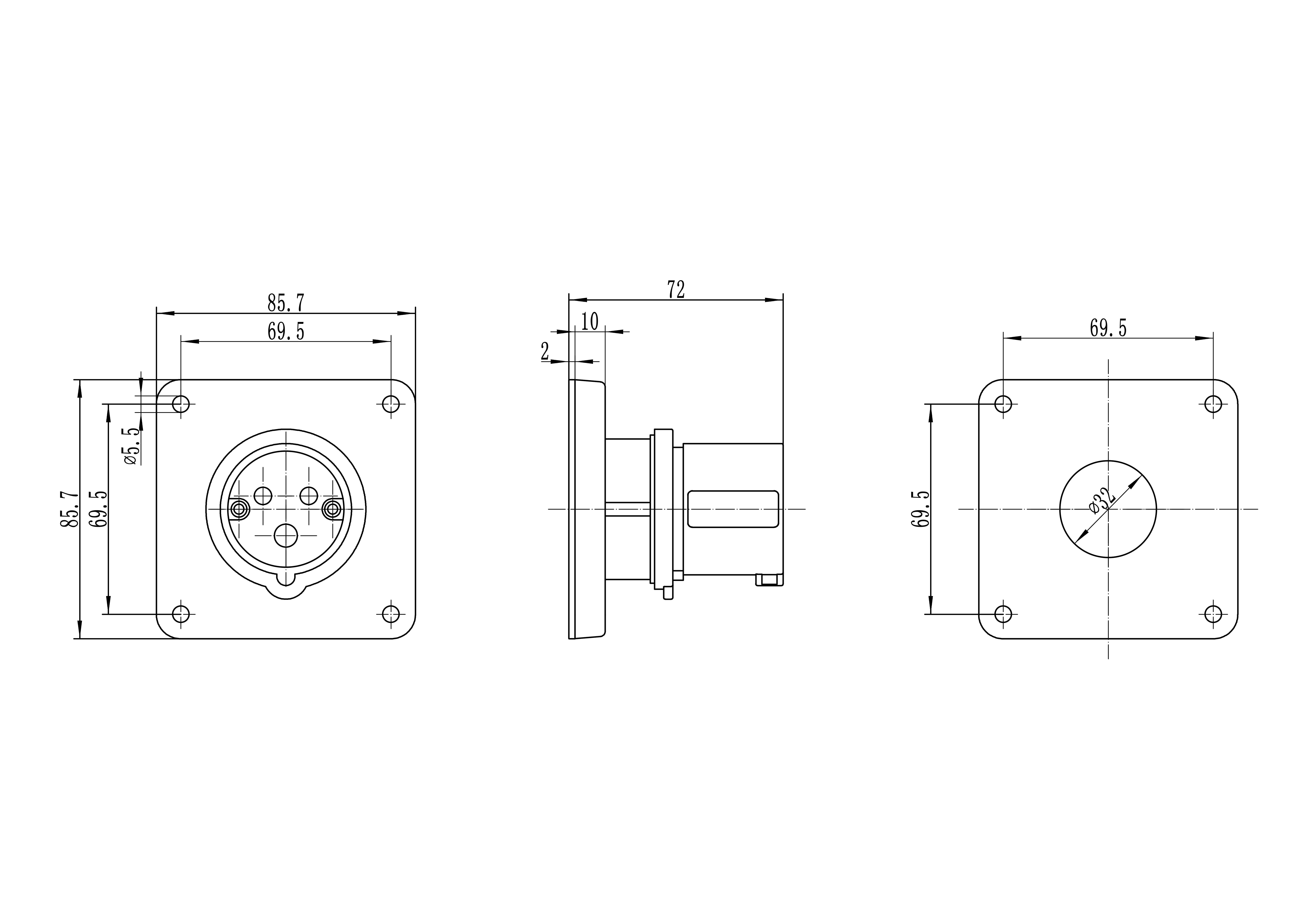

Drill hole distance vertical, mm 60
Drill hole distance horizontal, mm 60
Width of device, mm 75
Height of device, mm 75
Depth of device, mm 75
Angle of plug Right-angled
Connection system Screwed terminal
Height, mm 75
Width, mm 75
Temperature of operation, °C 60
Shock resistance, J 5
Depth, mm 65
