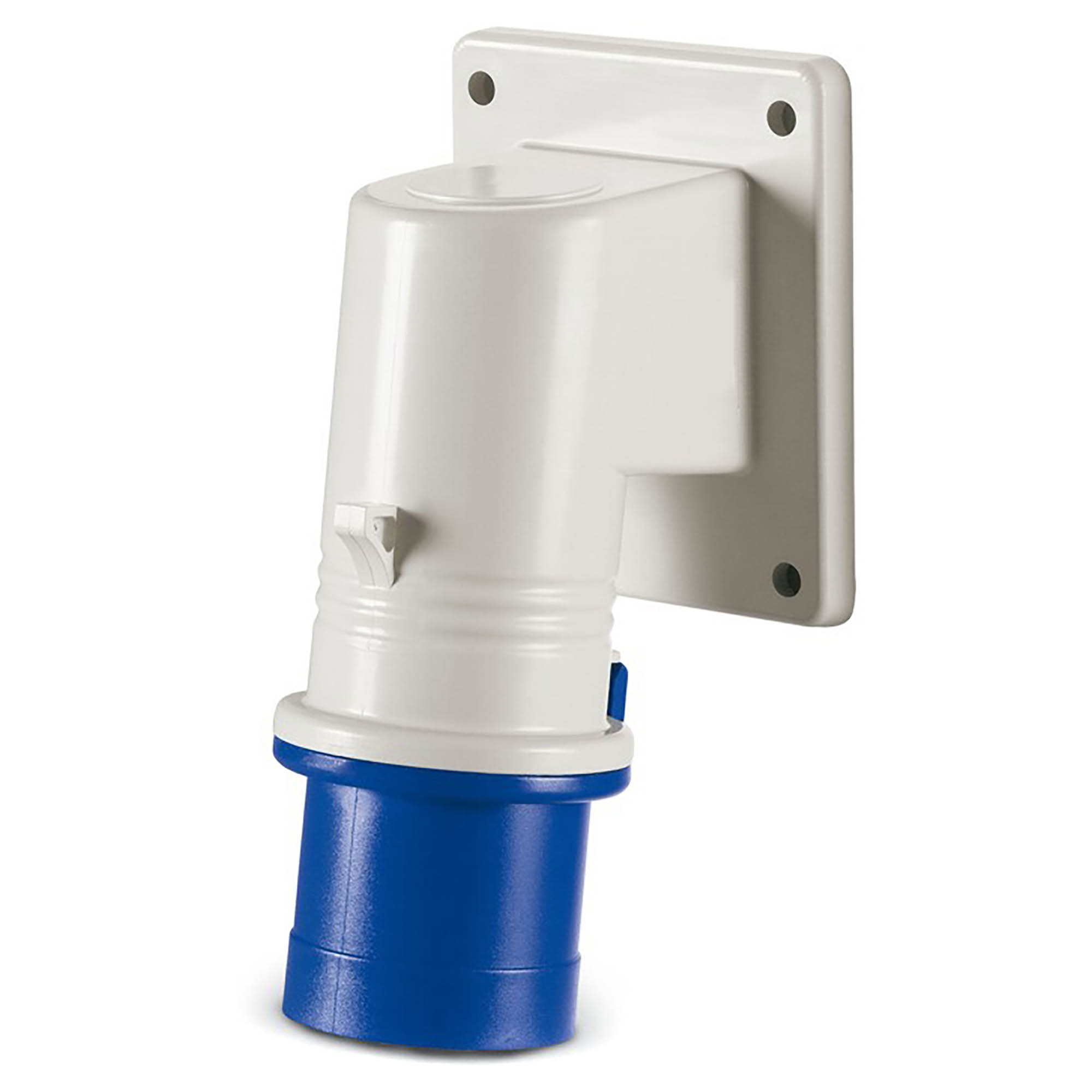

APPLIANCE INLET 2P+E IP44 32A 6h

Code: DIS2423293

To ask a question

ETIM

Width, mm	70
Height, mm	70
Depth, mm	153
Lockable	No
With hinged lid	No
With socket outlet	No
Number of phases	1
With child-protection	No
Frequency, Hz	50
Cable entry	Gland nut
Extension possible	No
With transparent cover	No
Switch-off function	No
Fault current protection	No
Number of poles	3
Contact less detection of the sense of rotation	No
Material	Plastic
IEC-amperage, A	32

For heavy conditions (in accordance with VDE)	No
Phase inverter	No
Empty locations on mounting rail	No
Number of height units	1
With earth leakage switch	No
Degree of protection (IP)	IP44
Total number of groups	1
Clock hour position, h	6
Identification colour	Blue
Voltage acc. EN 60309-2	230 V (50+60 Hz) blue

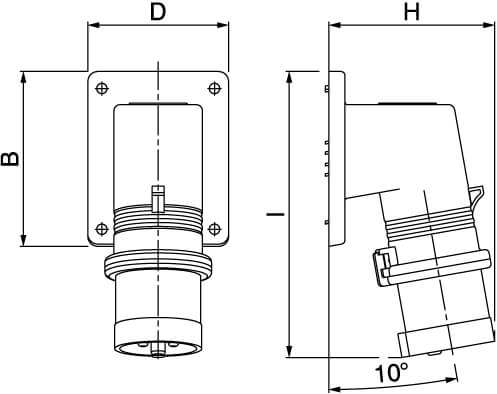

Drill hole distance vertical, mm	70
Drill hole distance horizontal, mm	56
Width of device, mm	70
Height of device, mm	70
Depth of device, mm	153
Angle of plug	Angled
Connection system	Screwed terminal
