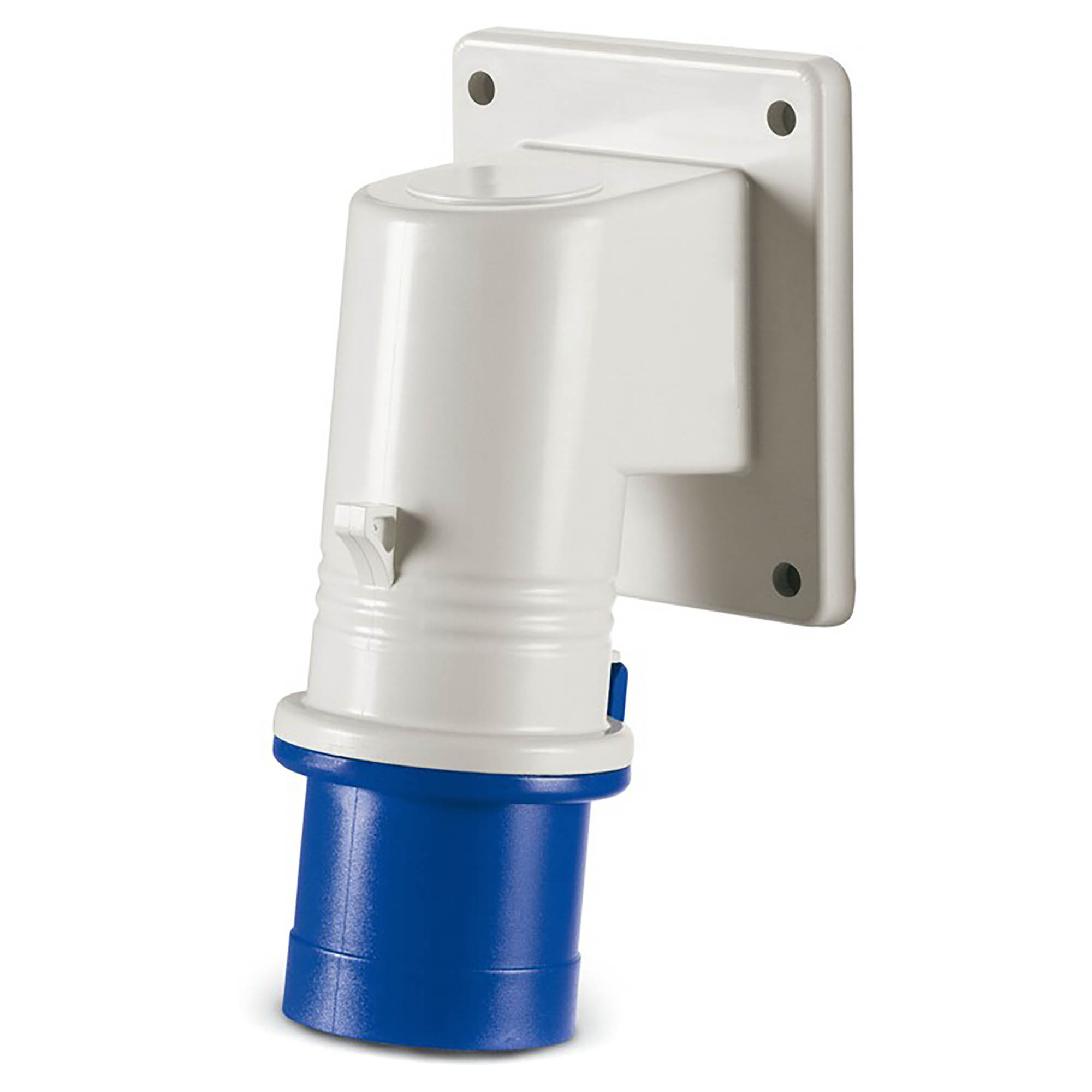

Code: DIS2421693
Width, mm70
Height, mm70
Depth, mm142
LockableNo
With hinged lidNo
With socket outletNo
Number of phases1
With child-protectionNo
Frequency, MHz50
Extension possibleNo
With transparent coverNo
Switch-off functionNo
Fault current protectionNo
Number of poles3
Contact less detection of the sense of rotationNo
MaterialPlastic
IEC-amperage, A16
For heavy conditions (in accordance with VDE)No
Phase inverterNo
Empty locations on mounting railNo
Number of height units1
With earth leakage switchNo
Degree of protection (IP)IP44
Total number of groups1
Clock hour position, hClock hour position, hClock hour position, hClock hour position, hClock hour position, hClock hour position, h6
Identification colourBlue
Voltage acc. EN 60309-2230 V (50+60 Hz) blue

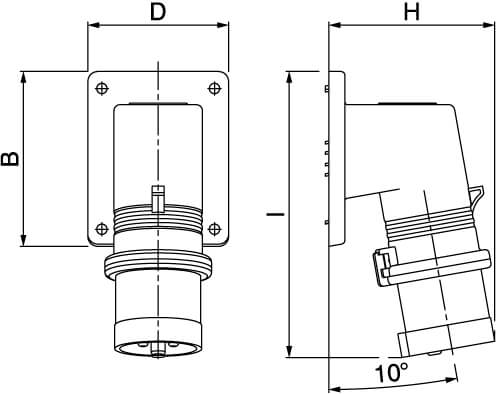

Drill hole distance vertical, mm70
Drill hole distance horizontal, mm56
Width of device, mm70
Height of device, mm70
Depth of device, mm142
