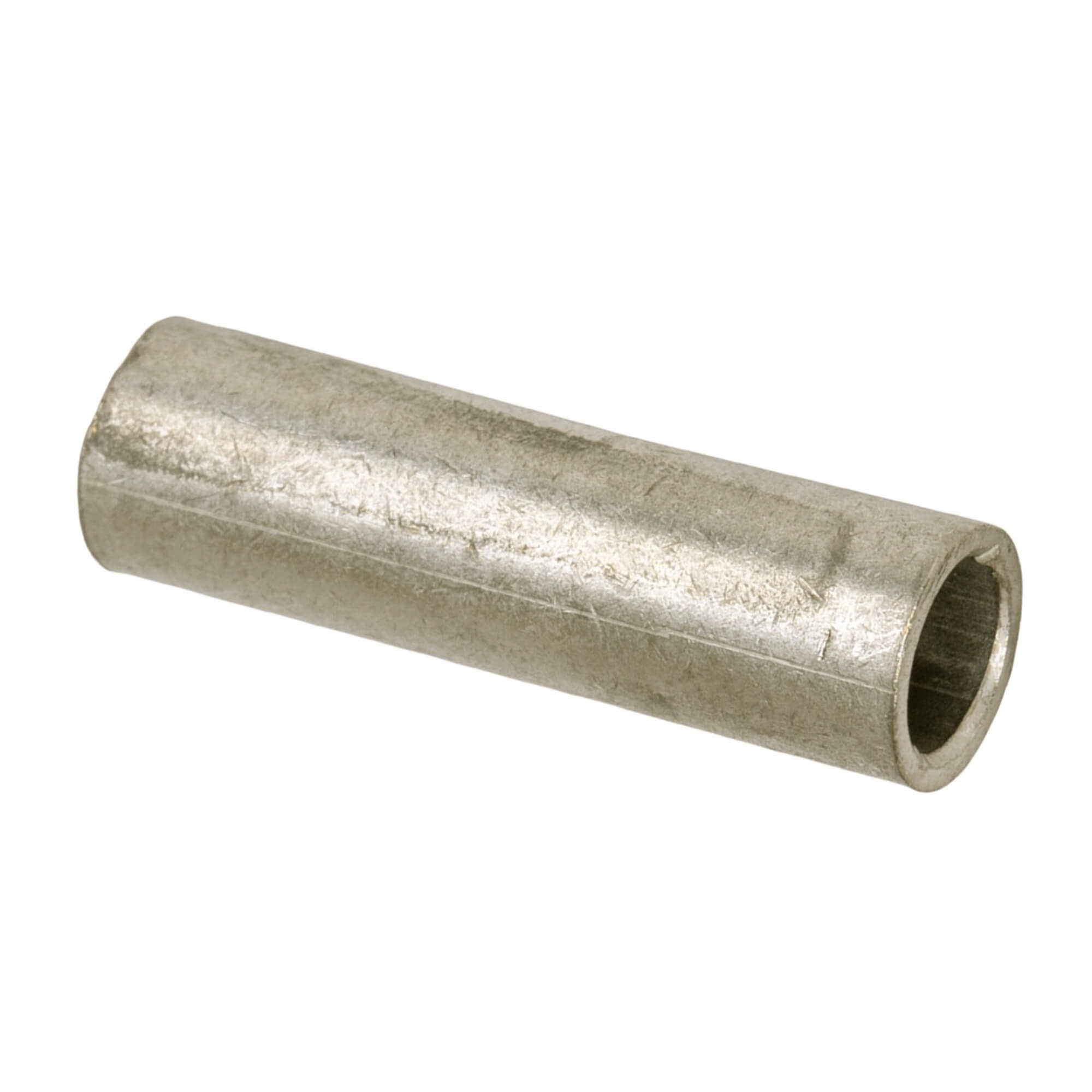

Butt-connectors 1000 mm²

Code: 2V20
Butt-connectors 1000 mm²
Butt-connectors 1000 mm²
Surface protection Tinned
Material Copper
Model Standard version
Type of connection Percussion connector
Insulation None
Oil stop/centre bar No
For pull protected connections Yes
Colour insulation None
Number of branches 1
Nominal cross section, mm² 1000
Suitable for fine strand conductors Yes
Suitable for flat conductors No
Suitable for high temperatures (to 650 No
Suitable for insulated varnish Yes
Suitable for solid cores Yes
Useful for stranded conductors Yes
Suitable for round conductors Yes
Sleeve form Long
Insulation Not isolated
Flange shape Sleeve
