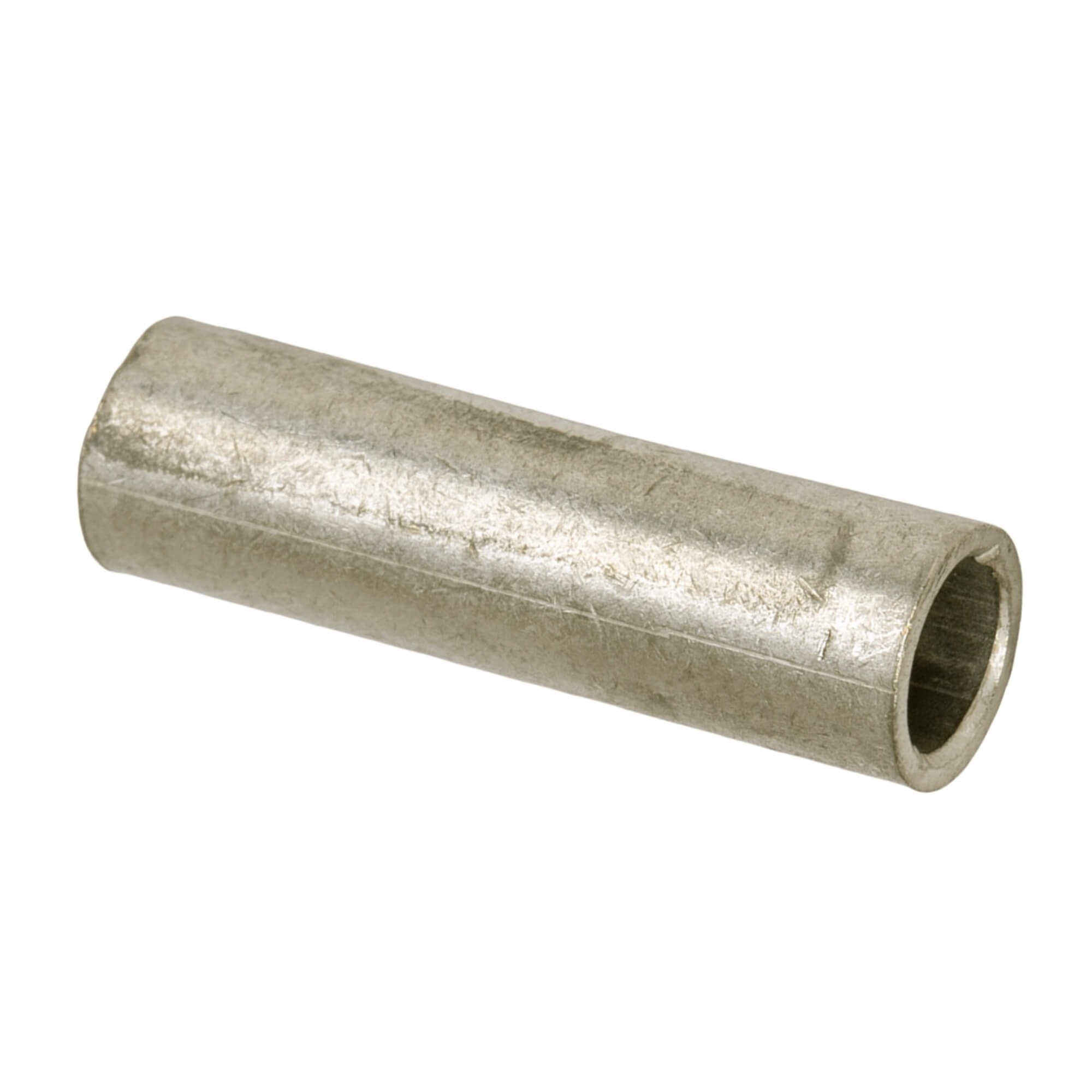

Butt-connectors 240 mm²

Code: 2P20

Butt-connectors 240 mm²

Code: 2P20
Surface protection Tinned
Material Copper
Model Standard version
Type of connection Percussion connector
Insulation None
Oil stop/centre bar No
For pull protected connections Yes
Colour insulation None
Number of branches 1
Nominal cross section, mm² 240
Suitable for fine strand conductors Yes
Suitable for flat conductors No
Suitable for high temperatures (to 650 °C) No
Suitable for insulated varnish Yes
Suitable for solid cores Yes
Useful for stranded conductors Yes
Suitable for round conductors Yes
Sleeve form Long
Insulation Not isolated
Flange shape Sleeve
Product type Non insulated terminals
nominal cross section 240 mm²
