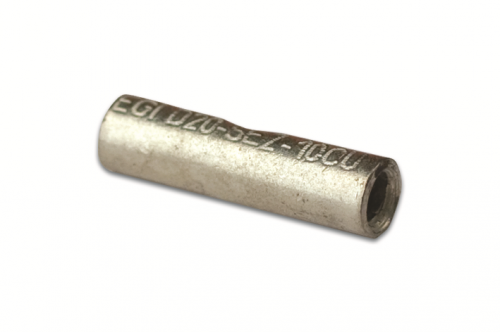

Butt-connectors 95 mm²

Code: 2L20

To ask a question

Surface protection	Tinned
Material	Copper
Model	Standard version
Type of connection	Percussion connector
Insulation	None
Oil stop/centre bar	No
For pull protected connections	Yes
Colour insulation	None
Number of branches	1

Nominal cross section, mm²	95
Suitable for fine strand conductors	Yes
Suitable for flat conductors	No
Suitable for high temperatures (to 650	No
Suitable for insulated varnish	Yes
Suitable for solid cores	Yes
Useful for stranded conductors	Yes
Suitable for round conductors	Yes
Sleeve form	Long

Insulation

Not isolated

Flange shape

Sleeve

Accessories

Crimping tool for terminals 10-150mm²

Code: 2ARTCT150

Crimping tool for terminals 10-120mm²

Code: 2ARTHX120B

Matrix CSV for insulated terminals 0.5-2.5 sq.mm

Code: 2ART3722

Matrix CSV for insulated terminals 4-6 sq.mm

Code: 2ART3724

Hydraulic crimping tool for terminals 10-240mm²

Code: 2ART55

Hydraulic crimping tool for terminals 10-300mm²

Code: 2ART58

Matrix CSV for crimp connectors 4P (RG11)

Code: 2ART37I4

Matrix CSV for crimp connectors 6P (RG12)

Code: 2ART37I6

Matrix CSV for crimp connectors 8P (RG45)

Code: 2ART37I8

Matrix 95mm² for 2ART55

Code: M35595E

Matrix 95mm² for 2ART58

Code: M35895E

Hydraulic crimping tool for terminals 10-120 sq.mm

Code: 2ARTHX120GEB

Electro-hydraulic tool with adapter for matrices CSV

Code: 2ART215

Hand tool for matrices CSV

Code: 2ART360

CSV adapter for electro-hydraulic tool

Code: 2ART210A

Drawings

Seria	Name	Eplan
Quadro - cable terminals	The System "Quadro"	RAR 27.23 MB

Certificates

Name	Document
Quadro_ Exemption Letter for shrink tubes_DIN-rail, braid, frames and frames for EUI, drawing, accessories_1	PDF 1.30 MB
"Quadro"_cable lugs_EGI_1	PDF 4.29 MB
Declaration of conformity to TR TS 004/2011 for pre-insulated spade terminals	PDF 1.36 MB
Declaration of conformity to TR TS 004/2011 for pre-insulated spade terminals_1	PDF 2.65 MB
Declaration of conformity for pre-insulated spade terminals	PDF 1.89 MB
