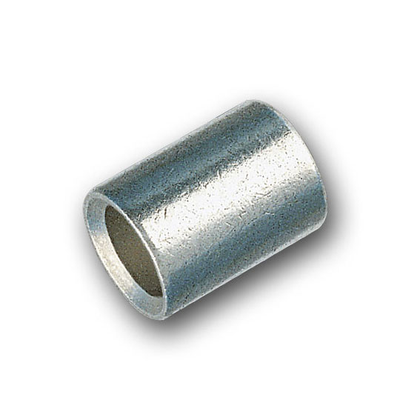

No name

Code: 2E20C

To ask a question

Surface protection	Tinned
Material	Copper
Model	Standard version
Type of connection	Percussion connector
Insulation	None
Oil stop/centre bar	No
For pull protected connections	Yes
Colour insulation	None
Number of branches	1

Nominal cross section, mm²	16
Suitable for fine strand conductors	Yes
Suitable for flat conductors	No
Suitable for high temperatures (to 650	No
Suitable for insulated varnish	Yes
Suitable for solid cores	Yes
Useful for stranded conductors	Yes
Suitable for round conductors	Yes
Sleeve form	Short

Insulation	Not isolated
Flange shape	Sleeve

Product type	Non insulated terminals
nominal cross section	16 mm²

Drawings

Seria	Name	Eplan
Quadro - cable terminals	The System "Quadro"	RAR 27.23 MB

Certificates

Name	Document
Quadro_ Exemption Letter for shrink tubes_DIN-rail, braid, frames and frames for EUI, drawing, accessories_1	PDF 1.30 MB
Declaration of conformity to TR TS 004/2011 for pre-insulated spade terminals	PDF 1.36 MB
Declaration of conformity to TR TS 004/2011 for pre-insulated spade terminals_1	PDF 2.65 MB
Declaration of conformity for pre-insulated spade terminals	PDF 1.89 MB
