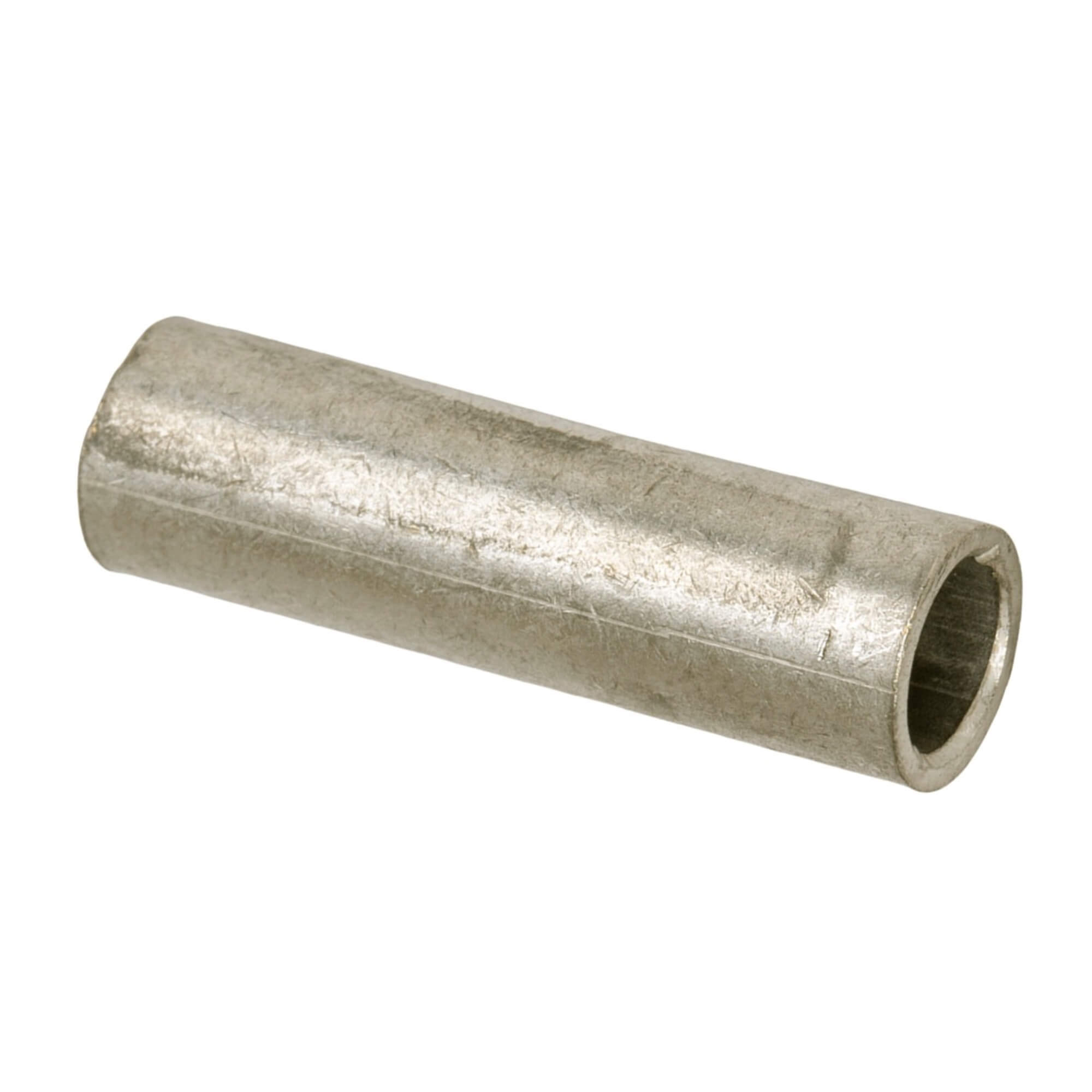

No name
Code: 2D20C
No name
Code: 2D20C
| Surface protection | Tinned |
| Material | Copper |
| Model | Standard version |
| Type of connection | Percussion connector |
| Insulation | None |
| Oil stop/centre bar | No |
| For pull protected connections | Yes |
| Colour insulation | None |
| Number of branches | 1 |
| Nominal cross section, mm² | 10 |
| Suitable for fine strand conductors | Yes |
| Suitable for flat conductors | No |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | Yes |
| Suitable for solid cores | Yes |
| Useful for stranded conductors | Yes |
| Suitable for round conductors | Yes |
| Sleeve form | Long |
| Insulation | Not isolated |
| Flange shape | Sleeve |
| Product type | Non insulated terminals |
| nominal cross section | 10 mm² |
Drawings
| Seria | Name | Eplan |
|---|---|---|
|
Cable terminals -"Quadro"
|
