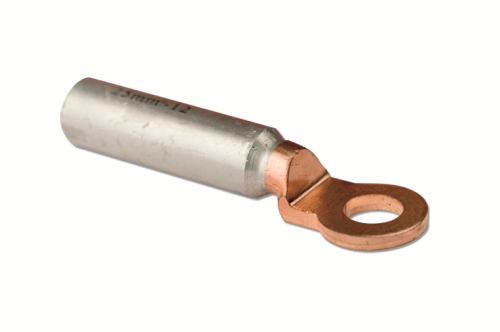

Power terminals screw bimetallic 300mm²

Code: 2Q16B

Suitable for Al/St-cables	Yes
Cross section form	Round stranded/sector stranded
St nominal cross section, mm²	300

Insulation

Not isolated

Flange shape

Ring shape
