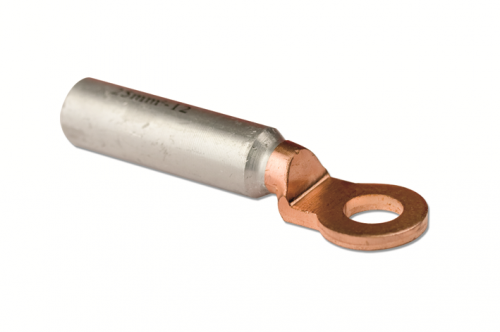

Power terminals screw bimetallic 120mm²

Code: 2M12B

To ask a question

Material	Al/Cu
Longitudinal sealed	Yes
Al-rated cross section, mm²	120

Suitable for Al/St-cables	Yes
Cross section form	Round stranded/sector stranded
St nominal cross section, mm²	120

Insulation

Not isolated

Flange shape

Ring shape

Accessories

Crimping tool for terminals 10-150mm²

Code: 2ARTCT150

Crimping tool for terminals 10-120mm²

Code: 2ARTHX120B

Matrix CSV for insulated terminals 0.5-2.5 sq.mm

Code: 2ART3722

Matrix CSV for insulated terminals 4-6 sq.mm

Code: 2ART3724

Hydraulic crimping tool for terminals 10-240mm²

Code: 2ART55

Hydraulic crimping tool for terminals 10-300mm²

Code: 2ART58

Matrix CSV for crimp connectors 4P (RG11)

Code: 2ART37I4

Matrix CSV for crimp connectors 6P (RG12)

Code: 2ART37I6

Matrix CSV for crimp connectors 8P (RG45)

Code: 2ART37I8

Matrix 120mm² for 2ART55

Code: M355120E

Matrix 120mm² for 2ART58

Code: M358120E

Hydraulic crimping tool for terminals 10-120 sq.mm

Code: 2ARTHX120GEB

Electro-hydraulic tool with adapter for matrices CSV

Code: 2ART215

Hand tool for matrices CSV

Code: 2ART360

CSV adapter for electro-hydraulic tool

Code: 2ART210A
