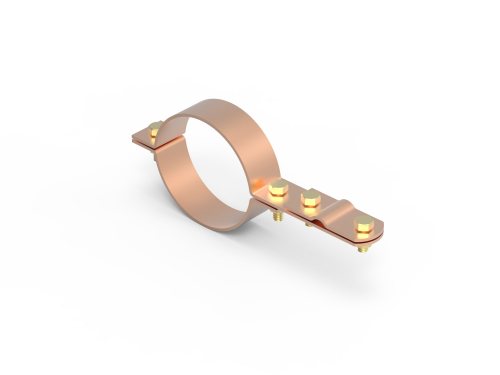

Pipe clamp, D80 mm, copper
Code: NG3002CU
Pipe clamp, D80 mm, copper
Code: NG3002CU
| Mounting type conductor | With screw clamp |
| Mounting type holder | Rain pipe |
| Material of holder | Copper |
| Material of carrier | Copper |
| Tube diameter, mm | 20 |
| Thread size (metric) | 6 |
| Suitable for diameter round conductor, mm | 8...10 |
| Pipe chucking range, mm | 80...80 |
| Suitable for width flat conductor, mm | 25...25 |
| Product type | Holders |
| Material | copper |
| Fixed conductor | wire, 8-10 mm/ strip, 25 mm |
| Application area | metal pipe |
| Mounting type conductor | screw clamp |
| Clamping range | 80 mm |
