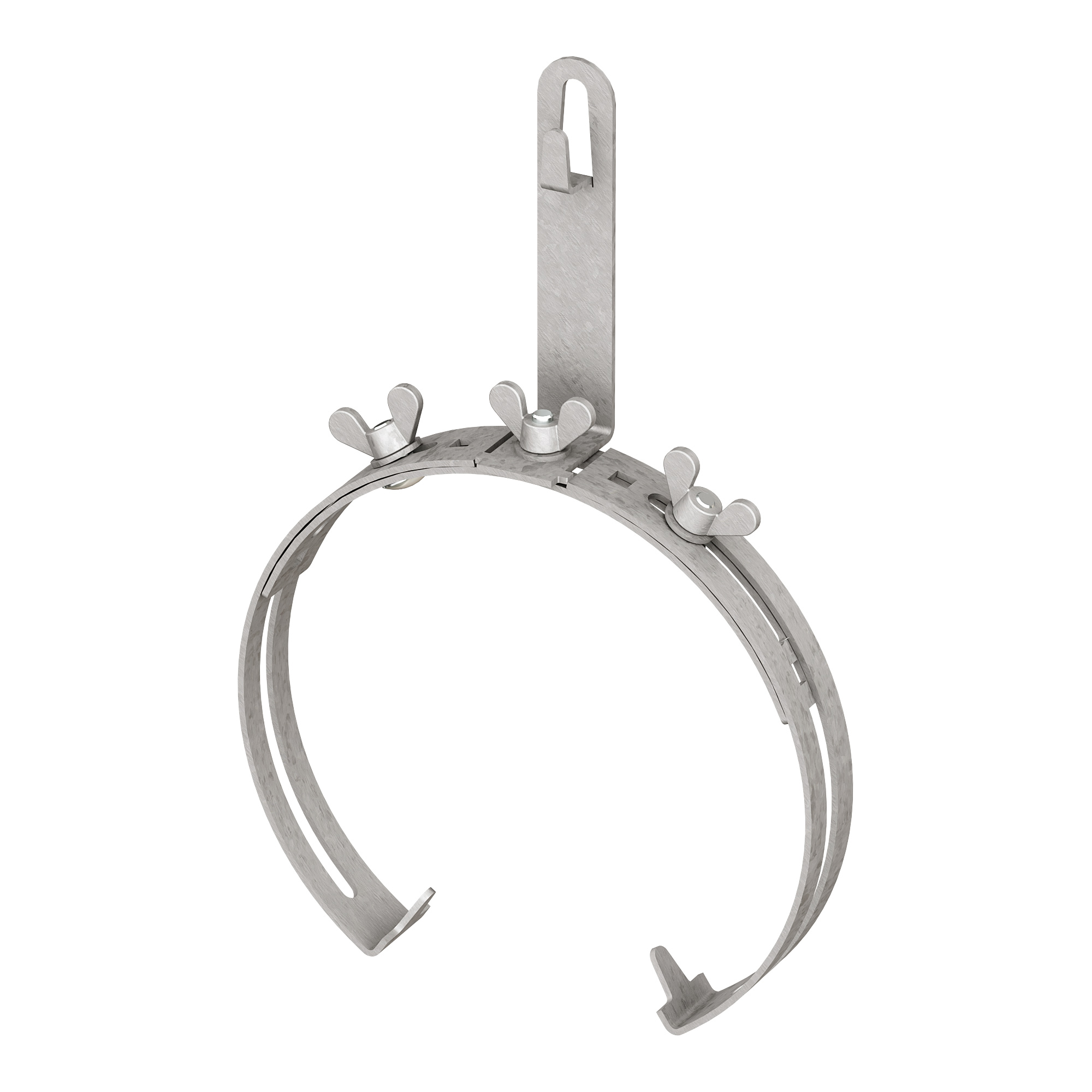

Adjustable oversized ridge clamp
Code: ND2203
Adjustable oversized ridge clamp
Code: ND2203
| Mounting method | Stretchable |
| Application | Ridge/hip |
| Mounting type conductor | With grip clamp |
| Conductor diameter, mm | 8 |
| Material of holder | Thermo galvanized steel |
| Material of carrier | Thermo galvanized steel |
| Chucking range, mm | 240...300 |
| Length carrier, mm | 92 |
| Product type | Holders |
| Material | hot dip galvanized steel |
| Fixed conductor | wire, 8-10 mm |
| Application area | roof ridge |
| Mounting type conductor | staple bending |
| Clamping range | 240-300 mm |
