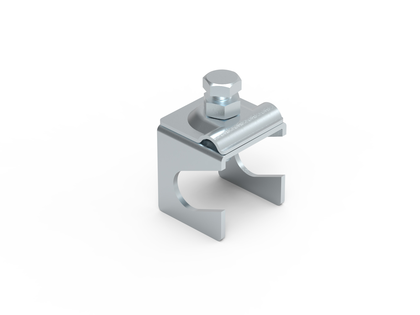

Connecting clamp for reinforcements with clamping frame
Code: ND2004
Connecting clamp for reinforcements with clamping frame
Code: ND2004
| Surface protection | Galvanic/electrolytic zinc plated |
| Type of connector | Construction clamp |
| Type of fastening screws | Hexagon screw |
| Material | Steel |
| Clamping range, mm | 22...22 |
| Suitable for diameter round conductor, mm | 8...10 |
| Product type | Holders |
| Material | galvanic zinc plated steel |
| Fixed conductor | wire, 8-10 mm/ strip, 25-40 mm |
| Application area | reinforcement |
| Mounting type conductor | screw clamp |
| Clamping range | 22 mm |
