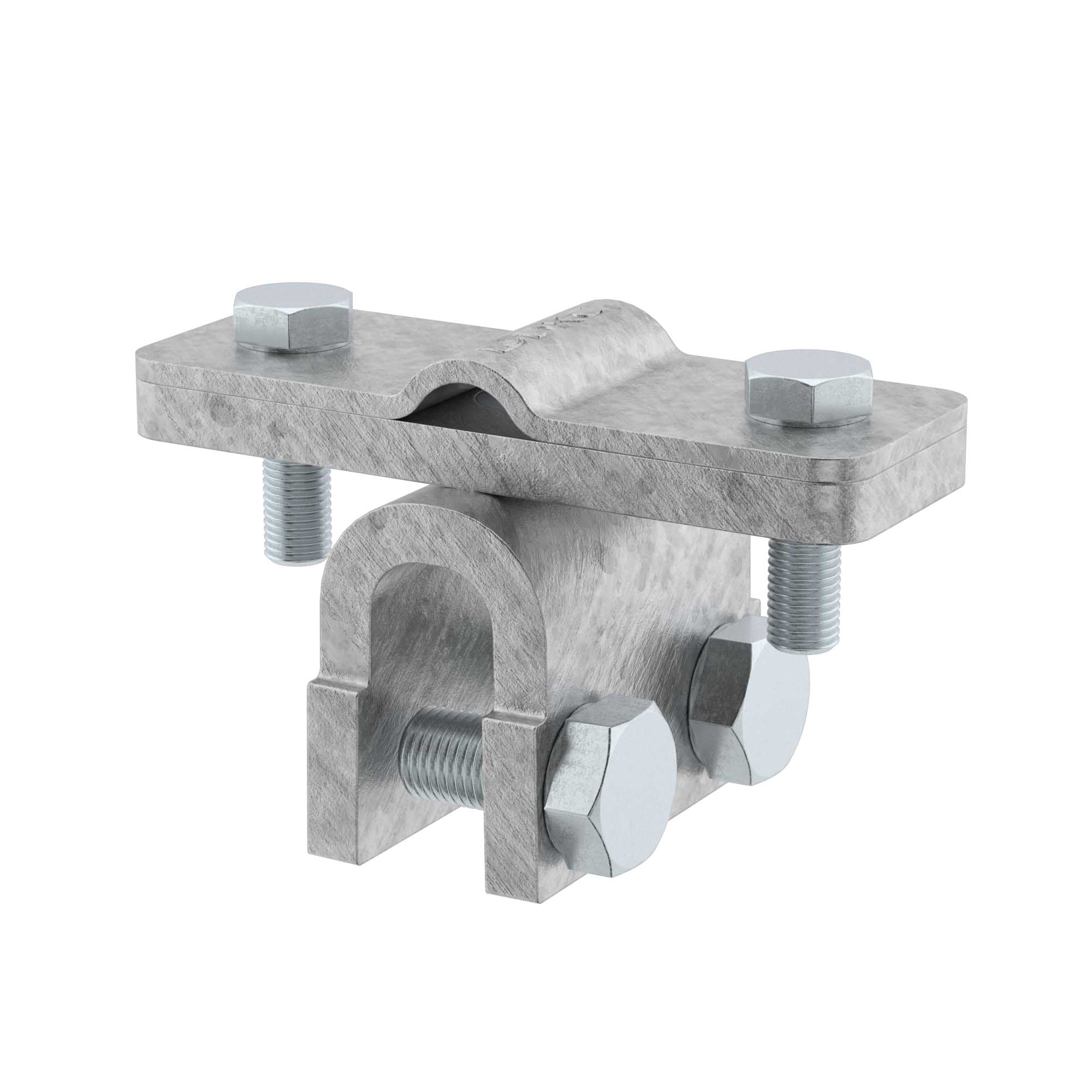

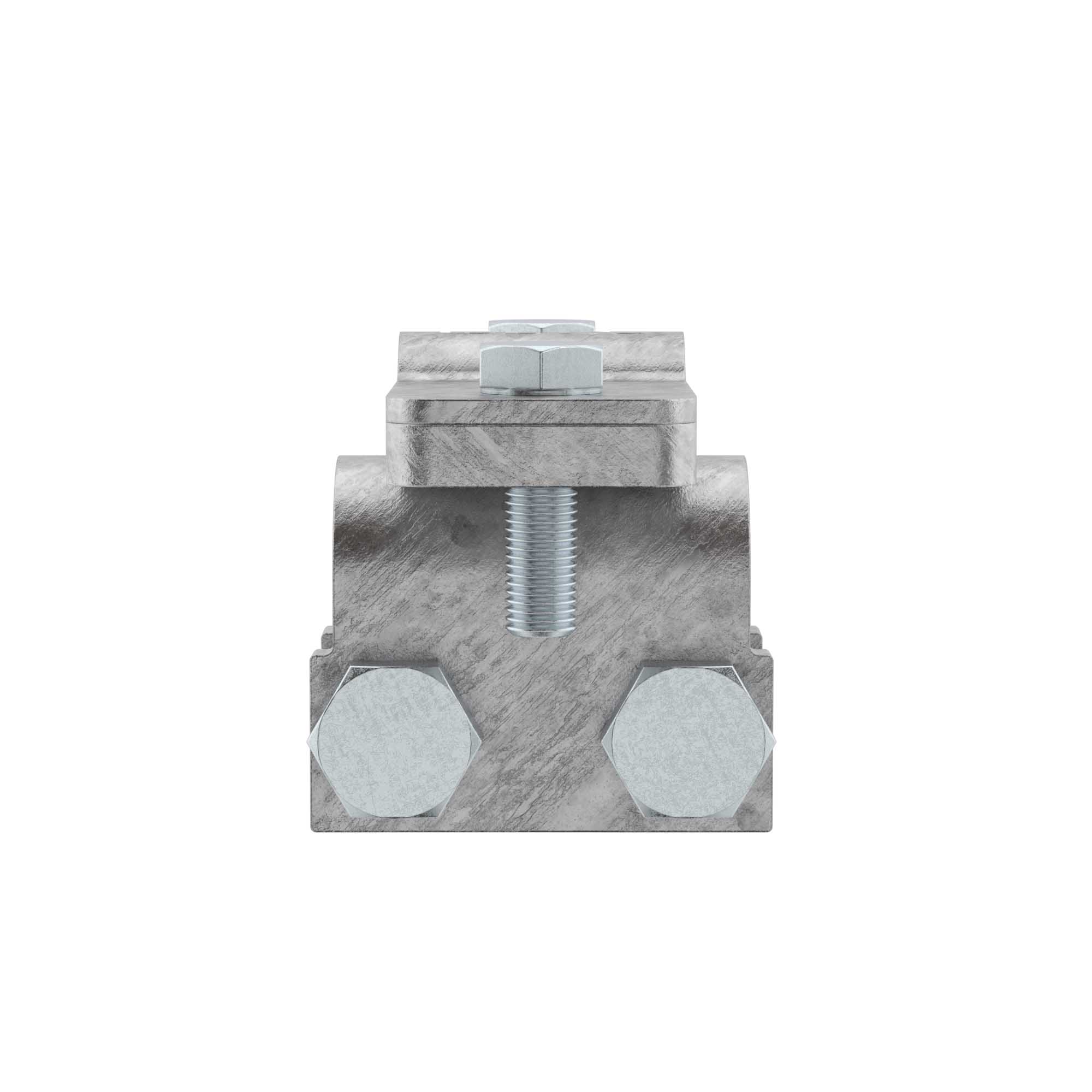

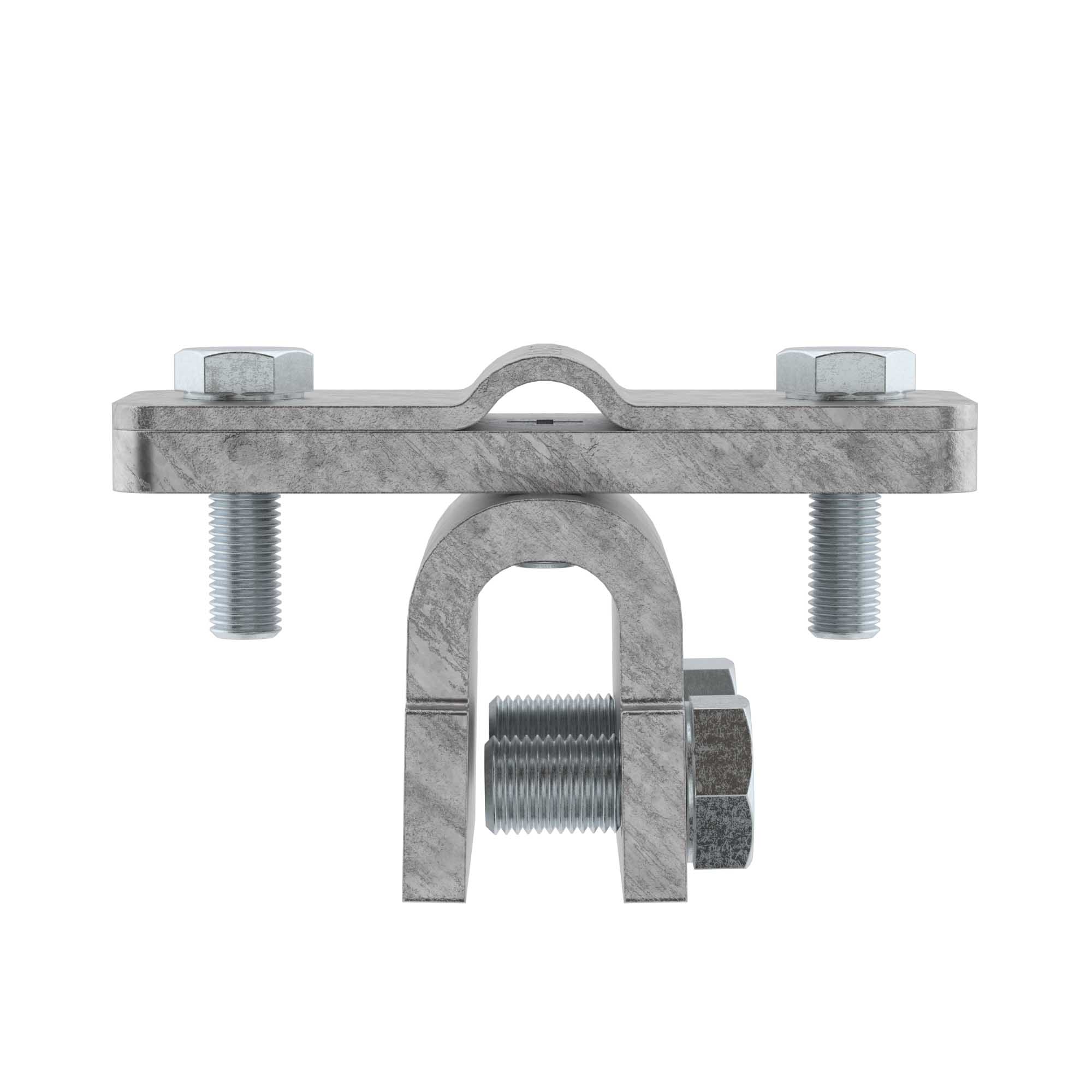

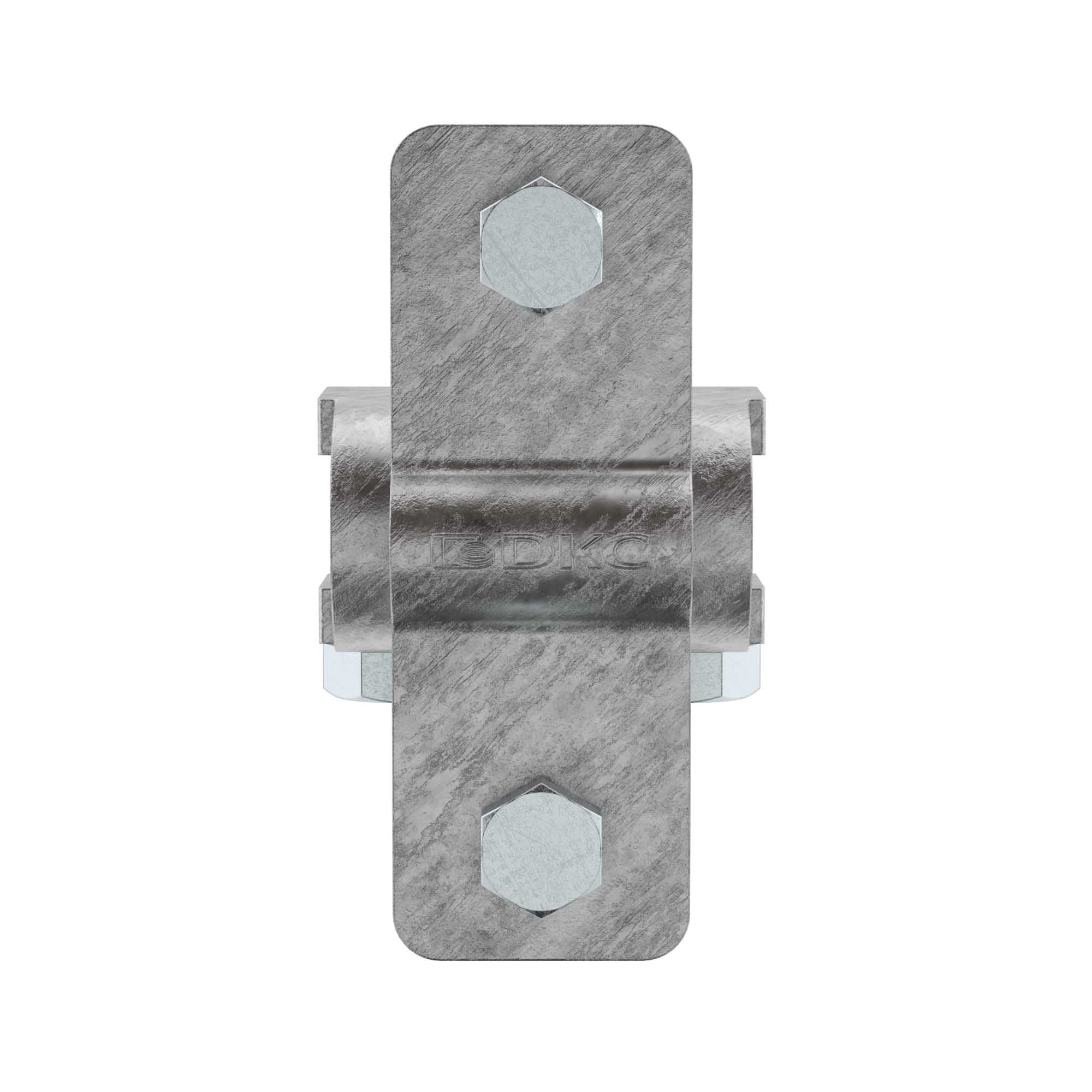

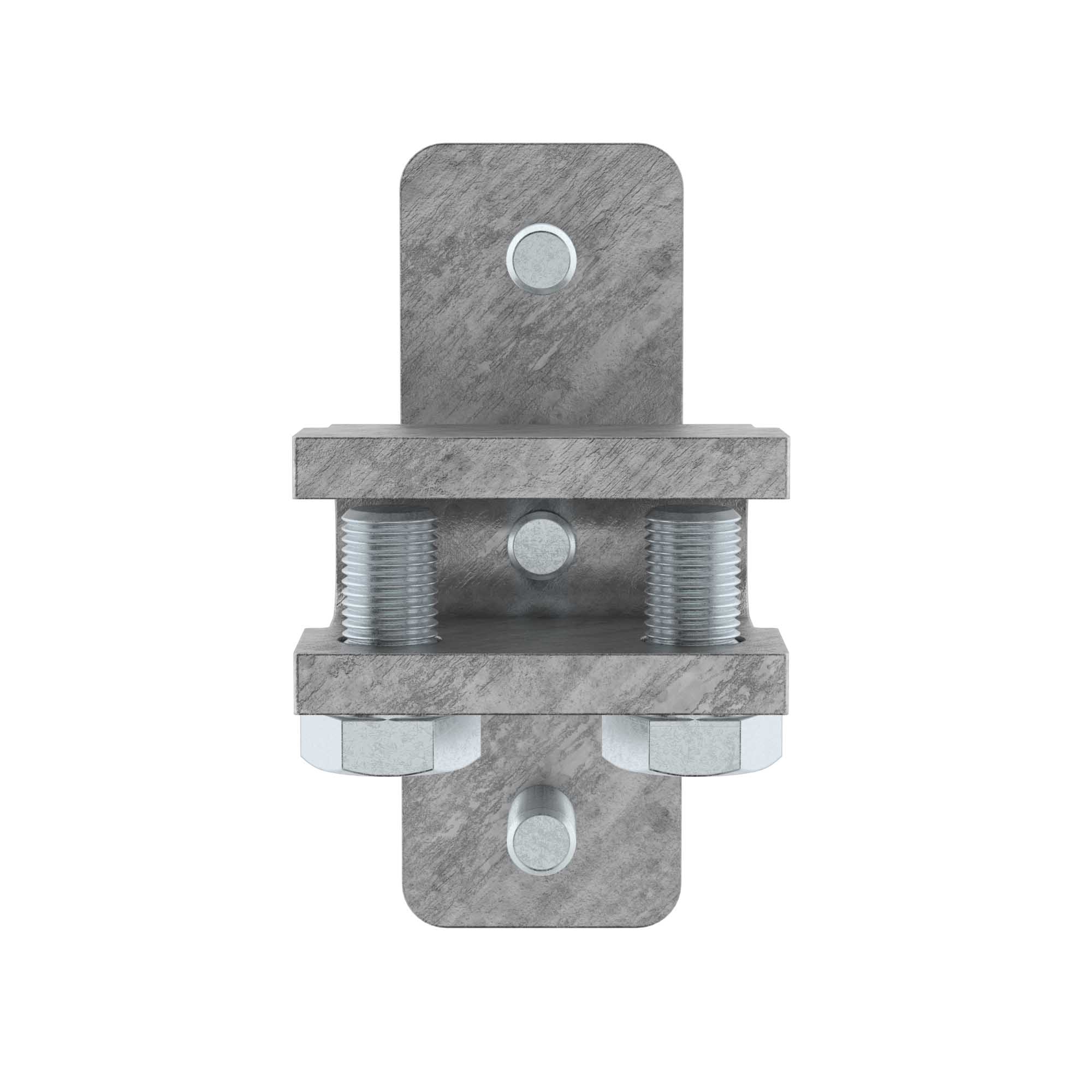

Folding clamp

Code: ND2001
Code: ND2001
  • To ask a question
Mounting method Clampable
Application Metal roof
Chucking range, mm 12...12
Mounting type conductor With screw clamp
Length carrier, mm 70
Conductor diameter, mm 8...10
Material of holder Steel
Product type Holders
Material hot dip galvanized steel
Fixed conductor wire, 8-10 mm/ strip, 25-40 mm
Application area metal structure
Mounting type conductor screw clamp
Clamping range 12 mm
