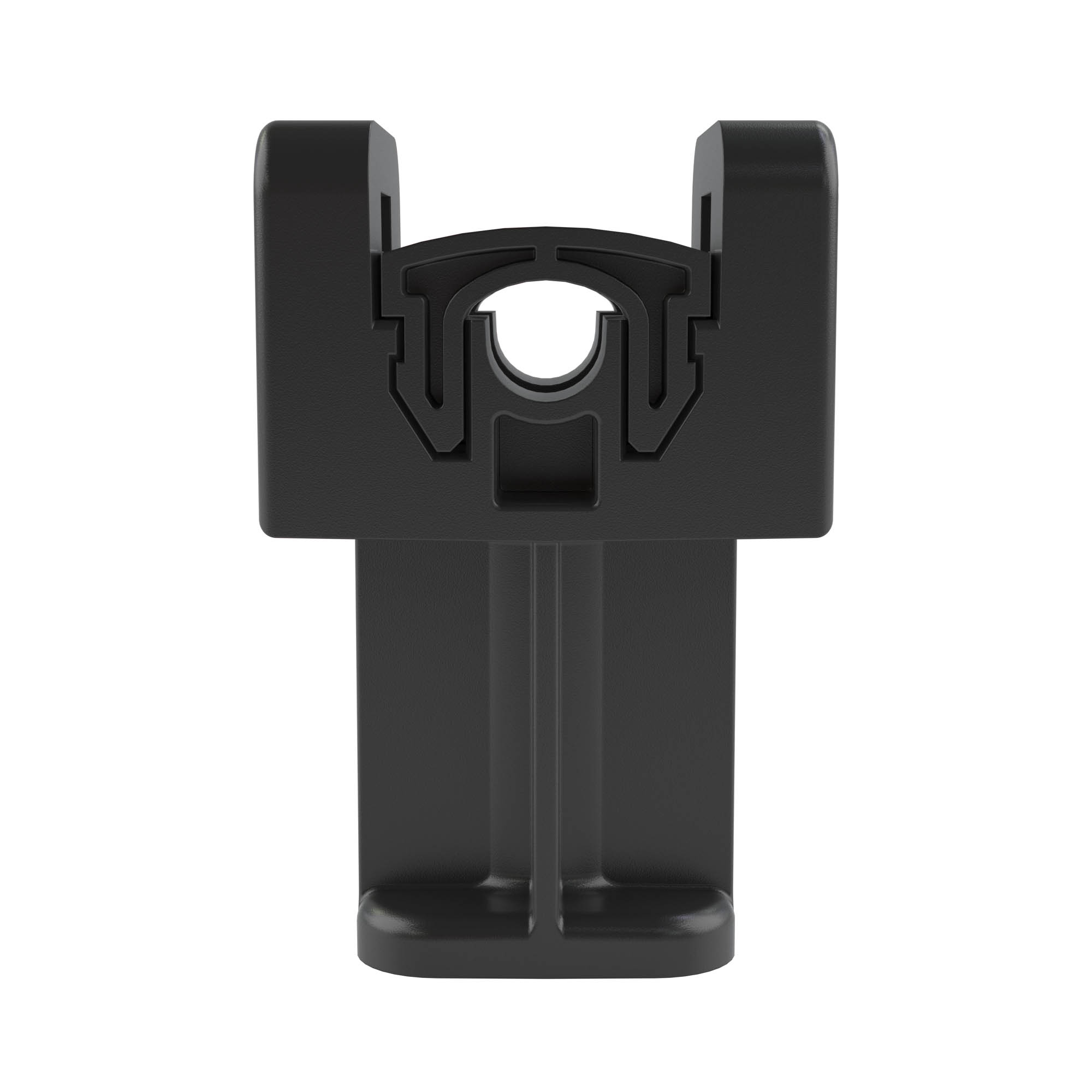

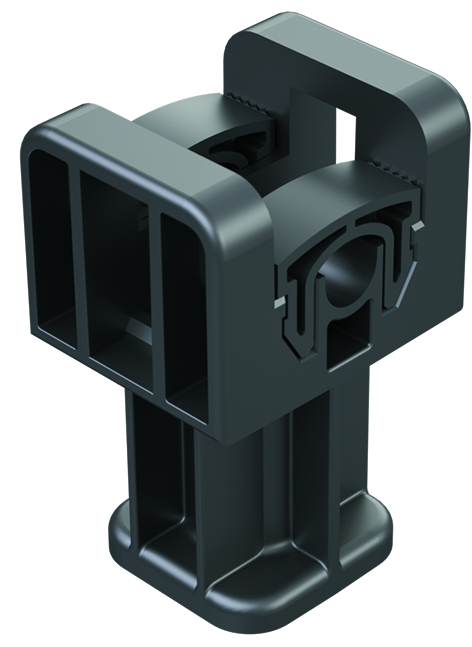

Universal holder

Code: ND2000
Universal holder
Universal holder
Material PBT-plastic

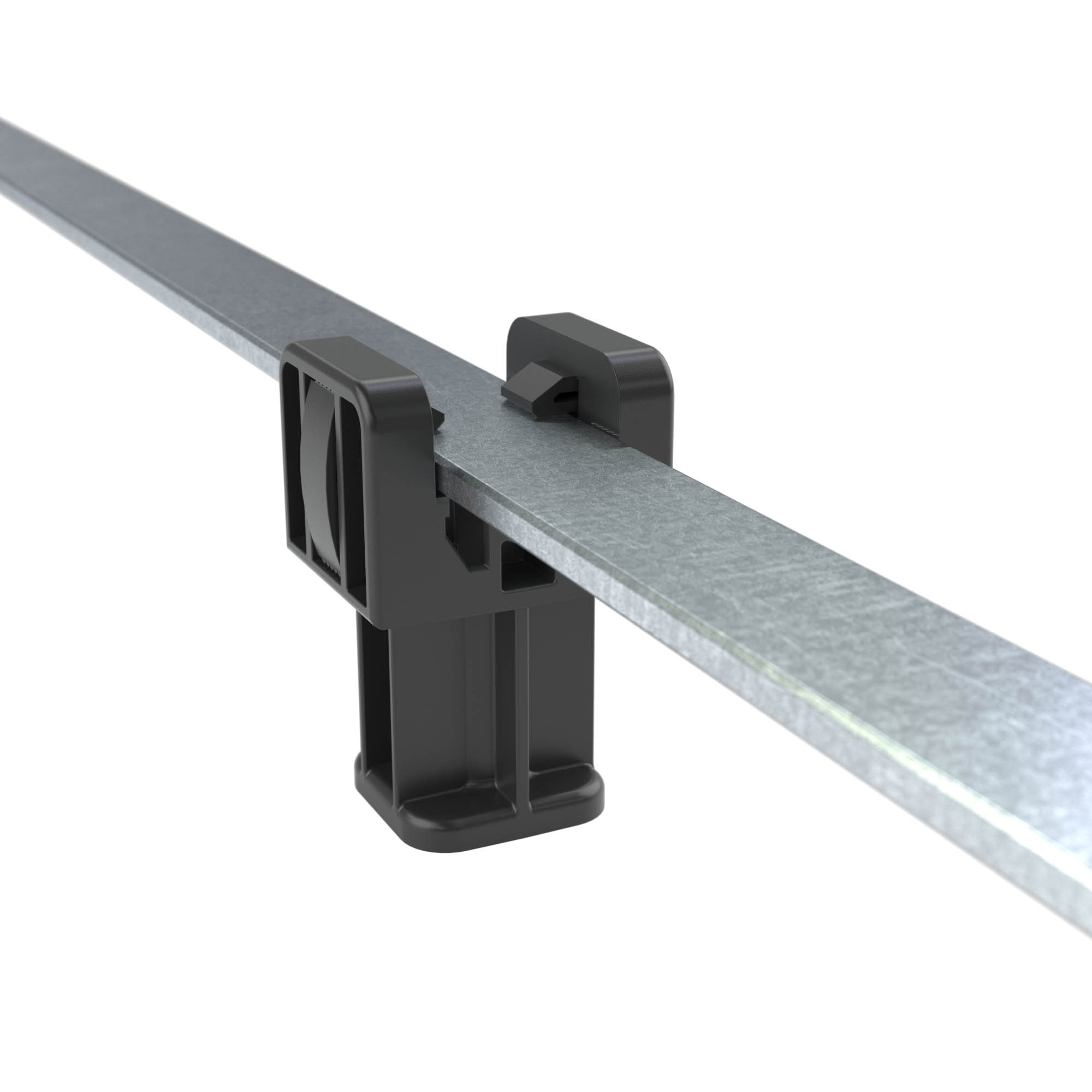

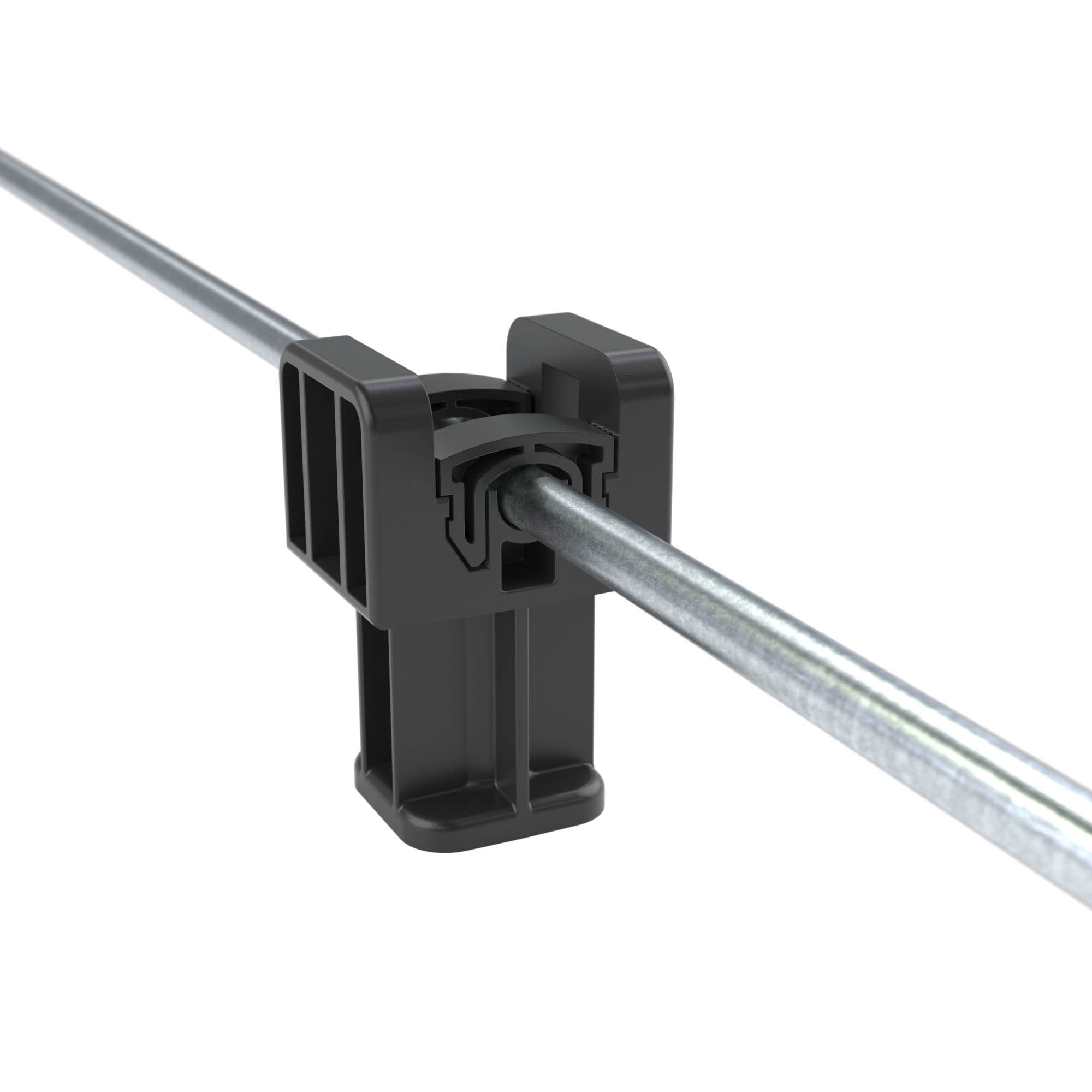

Fixed conductor wire, 8 mm/ strip, 25 mm
Application area roof surface/façade
Mounting type conductor grid clamp
Mounting type conductor With snap clamp
Mounting type holder Bore hole with M thread
Conductor dimension Other
Material of holder Plastic
Material of carrier Plastic
Certificates
Name Document
Jupiter - Exemption letter for the lighting protection and grounding
PDF
693.33 kB
“Jupiter”_ Exemption Letter for accessories for an isolated current lead (cable)
PDF
541.89 kB
Exemption Letter for the system of Lightning protection and grounding
PDF
3.31 MB
