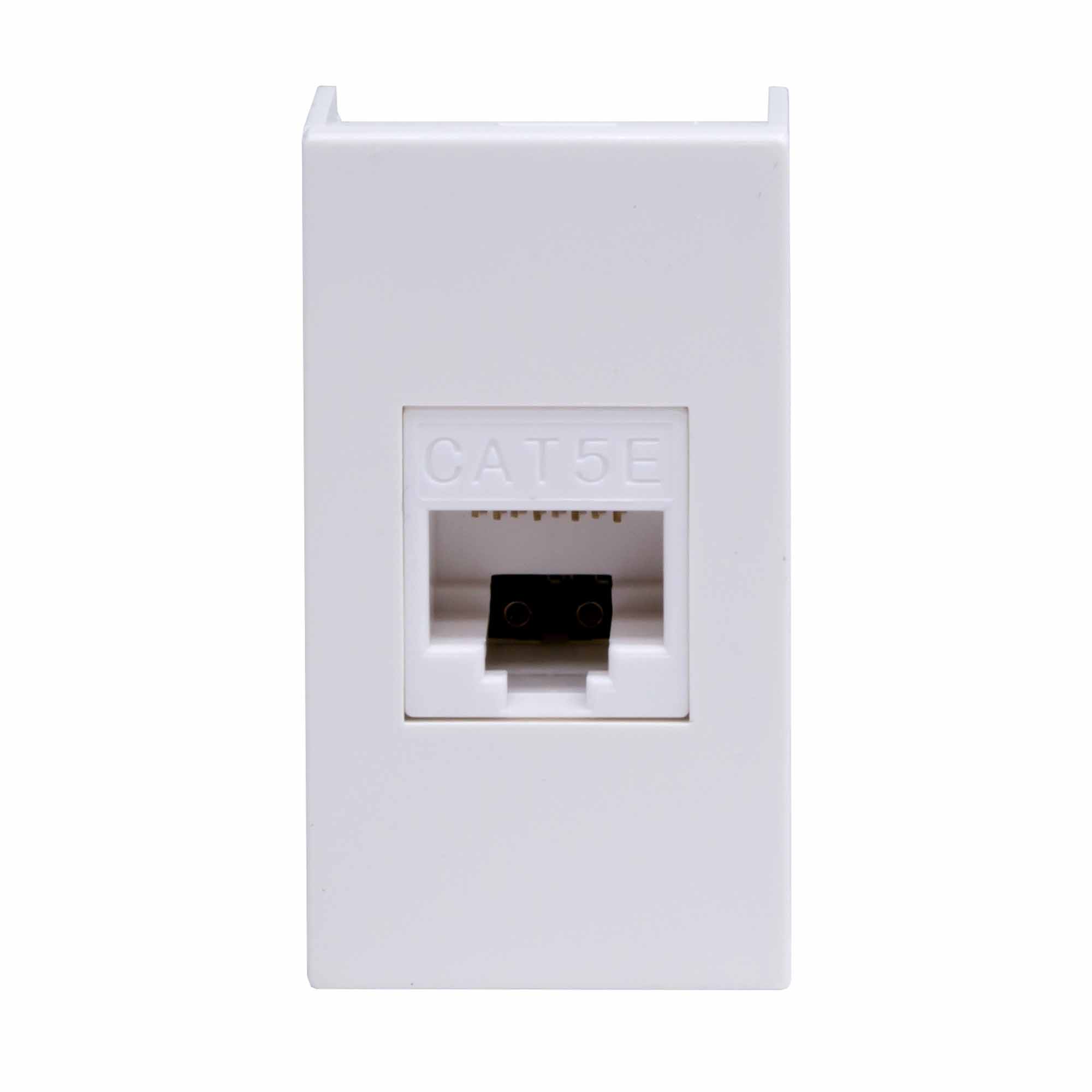

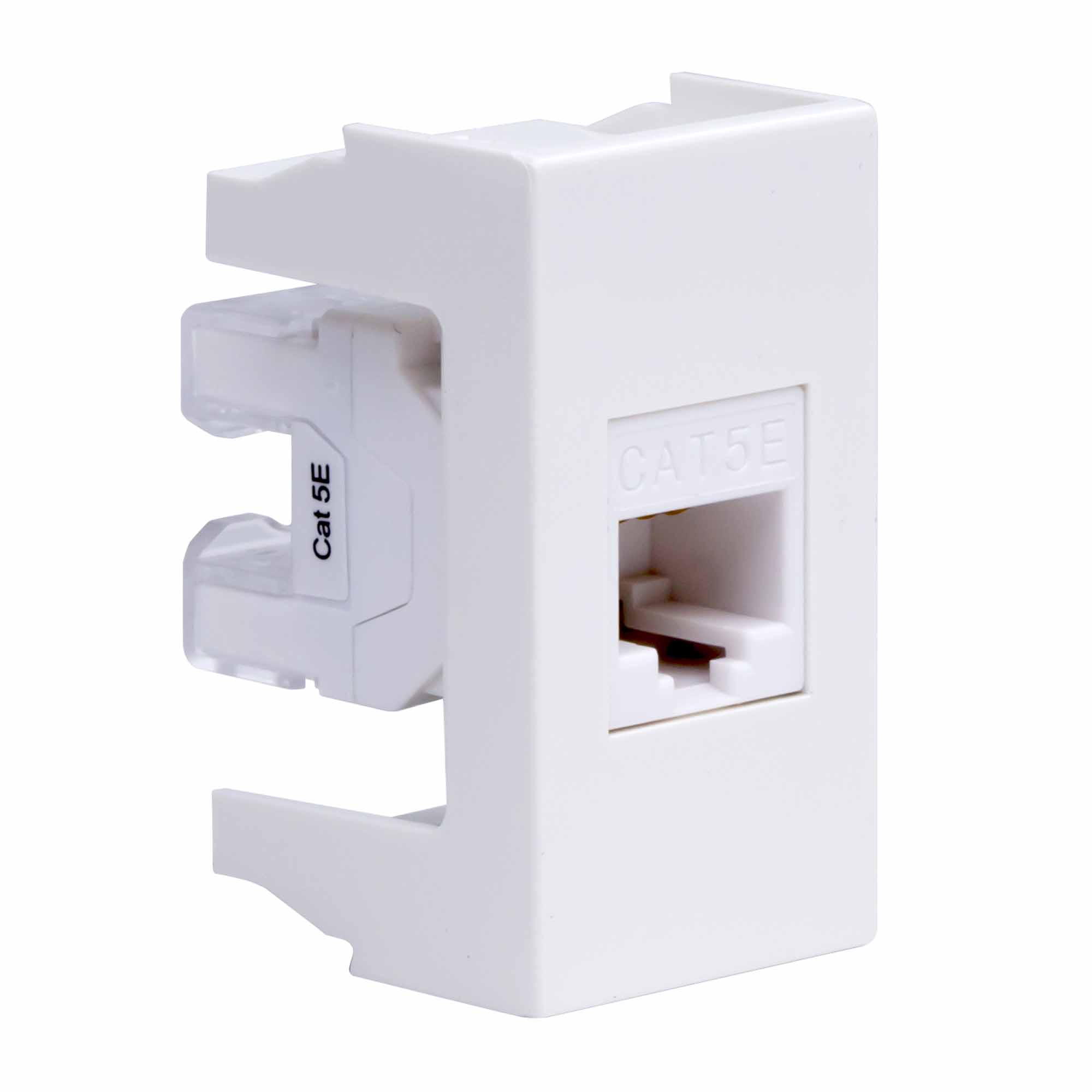

Computer socket RJ-45, 5e (8P8C, Hyperline, Dual IDC: 110&Krone) Viva, 1 mod., white
Code:
45038
Code:
45038
| Modular version | Yes |
| Category | 5E |
| Duct installation | Yes |
| Type of connector | RJ45 8(8) |
| Floor box/sub-floor mounted | Yes |
| With label space | No |
| Design suitable | Yes |
| Degree of protection (IP) | IP20 |

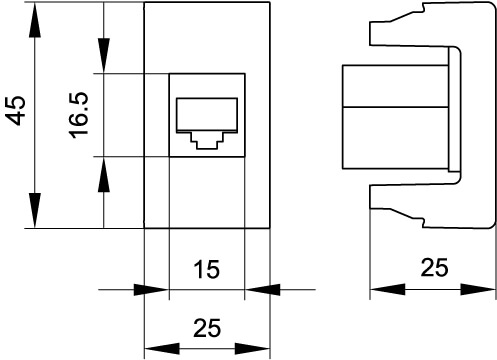

| Width of device, mm | 25 |
| Height of device, mm | 45 |
| Depth of device, mm | 25 |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Basic element with central cover plate |
| Colour | White |
| Outlet direction | Straight |
| Suitable for number of connectors | 1 |
| Type of fastening | Engage (snap) |
| Shielded buses | No |
| With dust cover | No |
| With buses/couplings | Yes |
| Connection type | Other |
| Material | Plastic |
| Surface finishing | Glossy |
| Color | White |
| Material of case | ABC-plastic |
| Ingress Protection rating, IP | IP20 |
| Climate version | UHL3 |
| Fire protection | It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012 |
| Number of modules | 1 |
| Product type | Computer socket |
| Type of installation | Modular product |
