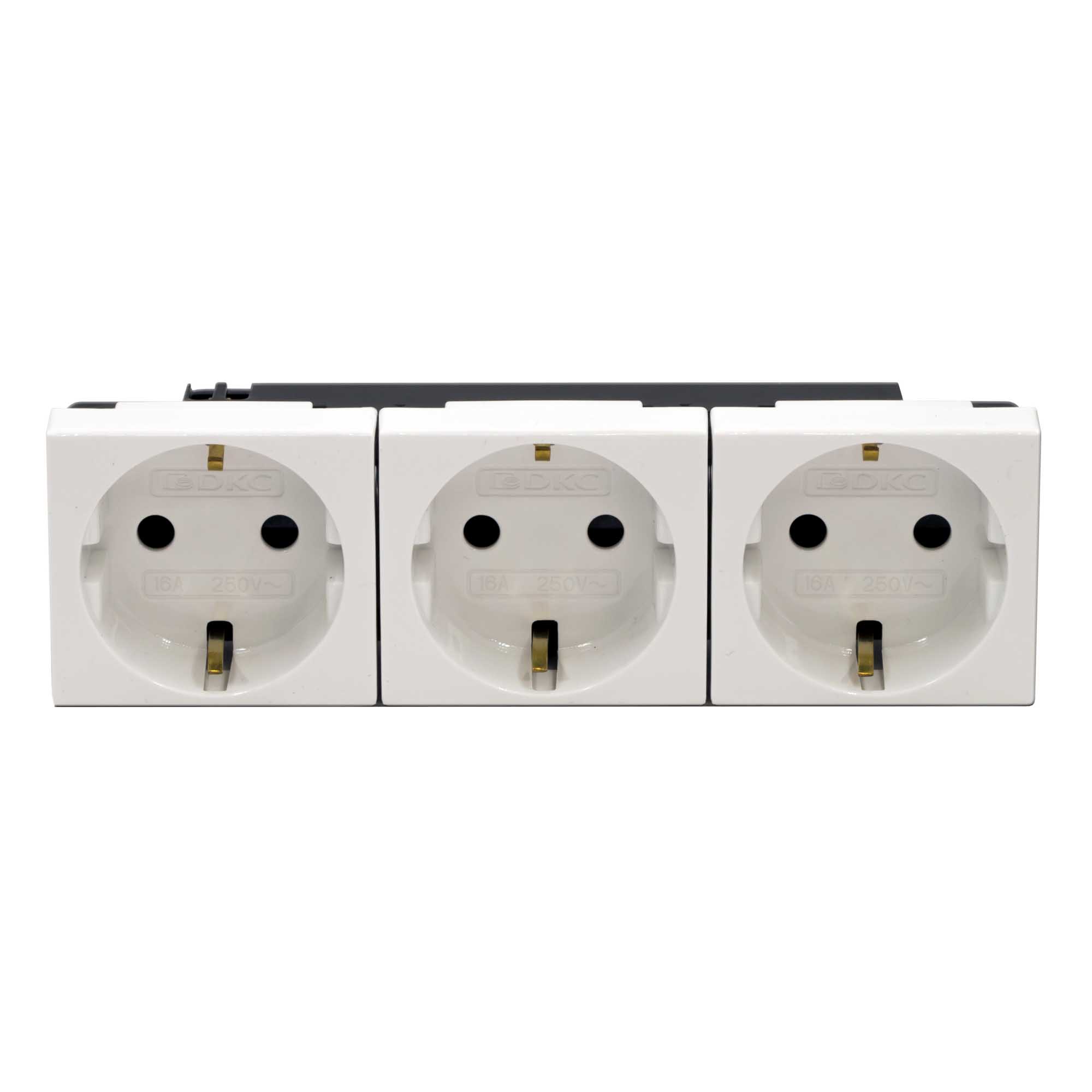

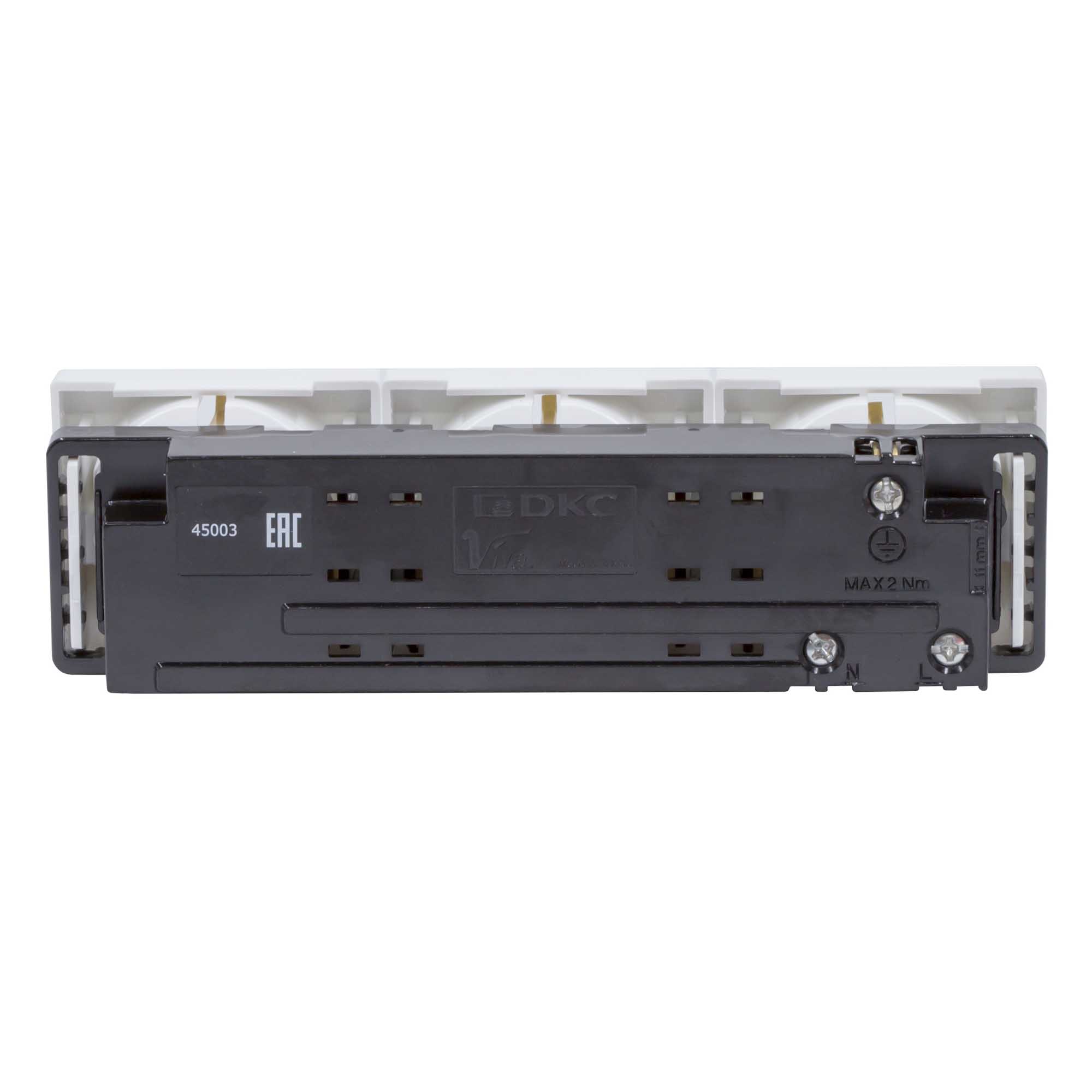

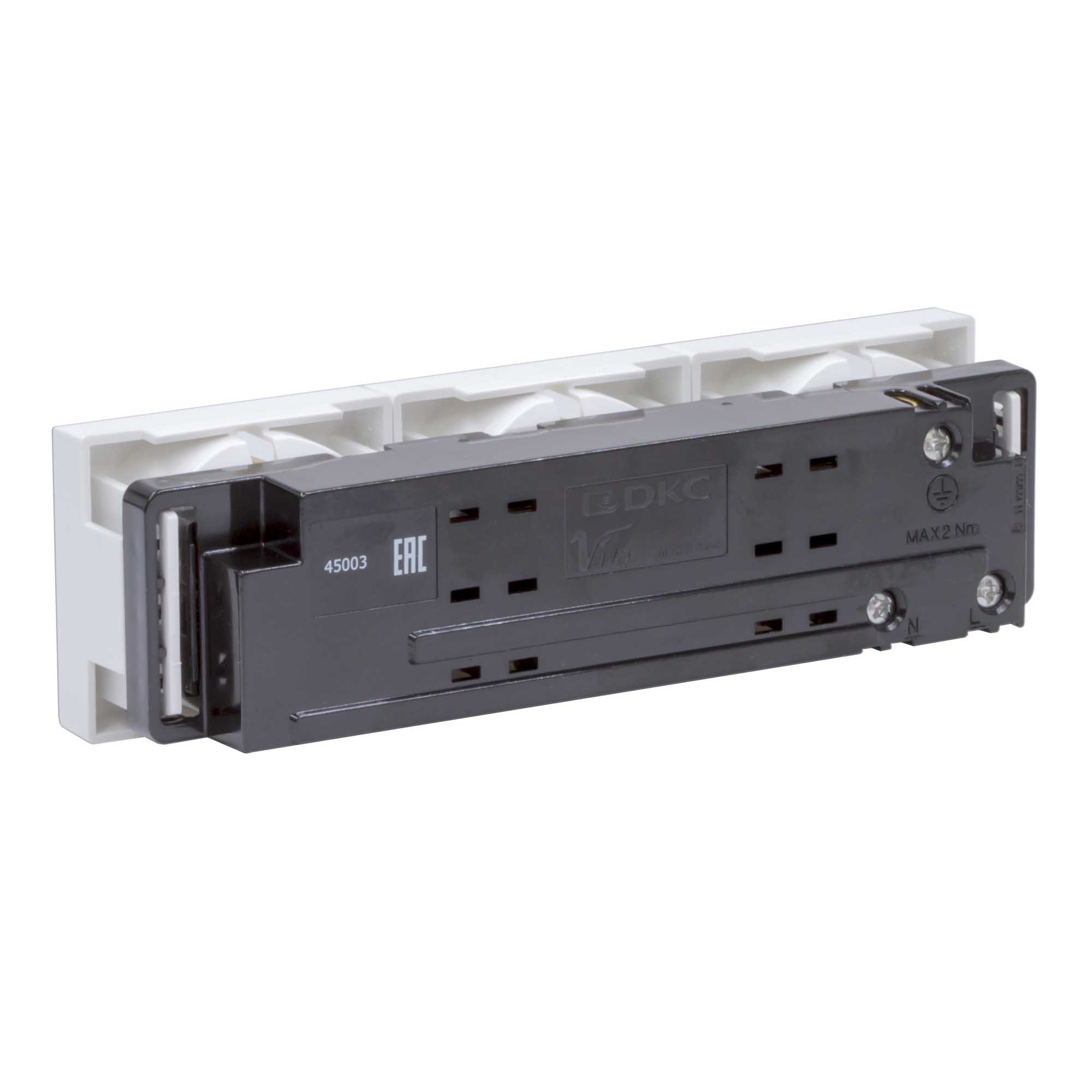

Triple schuko Viva, 6 mod., white

Code: 45003
Nominal current, A 16
Nominal voltage, V 220...250
Mounting method Surface mounted (plaster)
Colour White
Model Earthing pin
Halogen free Yes
Number of units 3
Lockable No
With hinged lid No
Surface protection Decor
With child-protection Yes
Label space/information surface No
Eject-mechanism No
Material quality Other
Switch-off function No
Rotated central insert No
Over voltage protection No
Fault current protection No
Material Plastic
Type of fastening Other
For heavy conditions (in accordance with VDE) No
Imprint/indication Data
Transparent No
Type of surface Brilliant
With miniature fuse No
Suitable for degree of protection (IP) IP20
Phase pickup None
Width of device, mm 150
Height of device, mm 45
Depth of device, mm 39,3
With function lighting No
With orientation lighting No
Special power supply No special power supply
Cover Central cover plate
Number of modules 6
Assembly arrangement Basic element with central cover plate
Connection type Screwed terminal
Complete with plug No
Decoration Декор по эскизу
