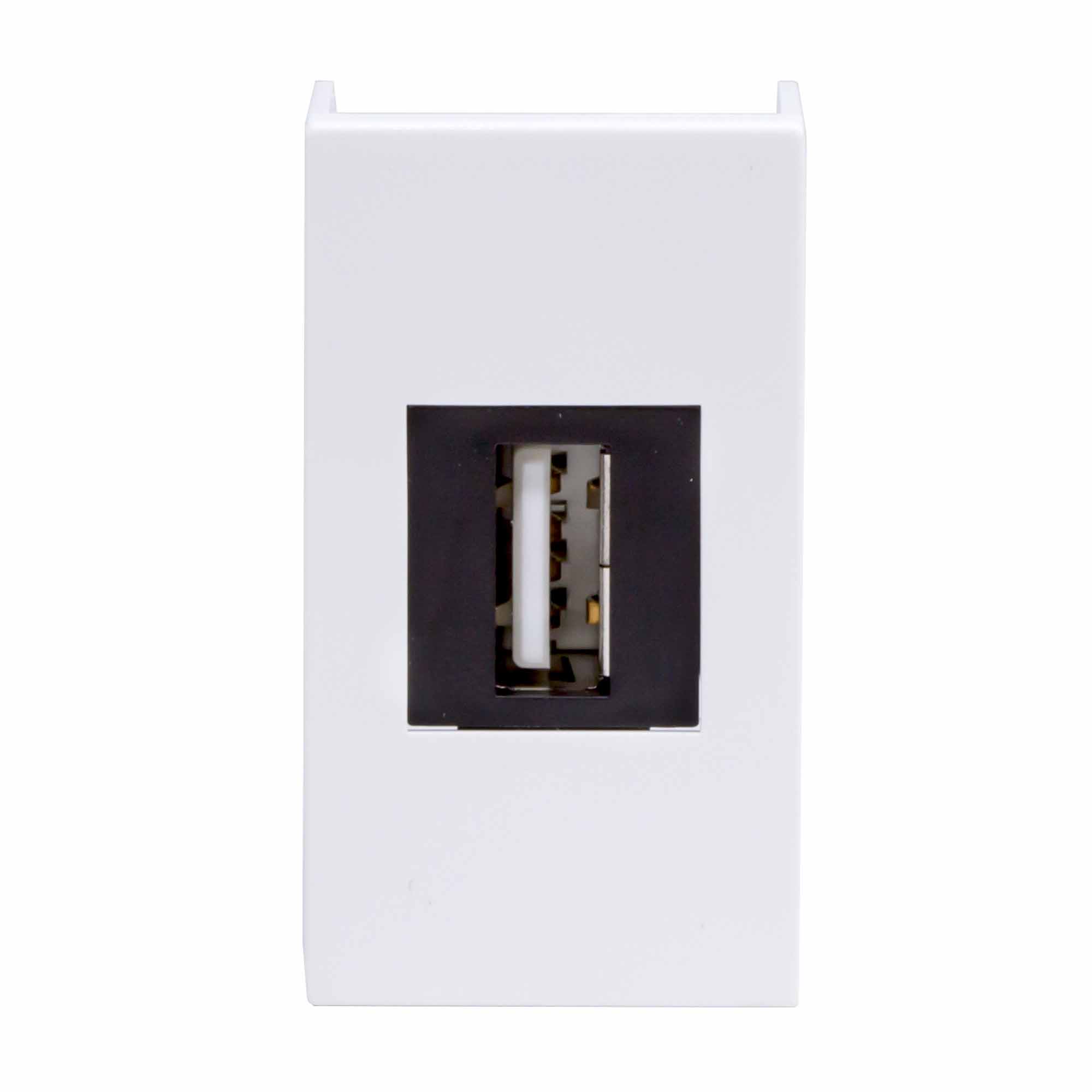

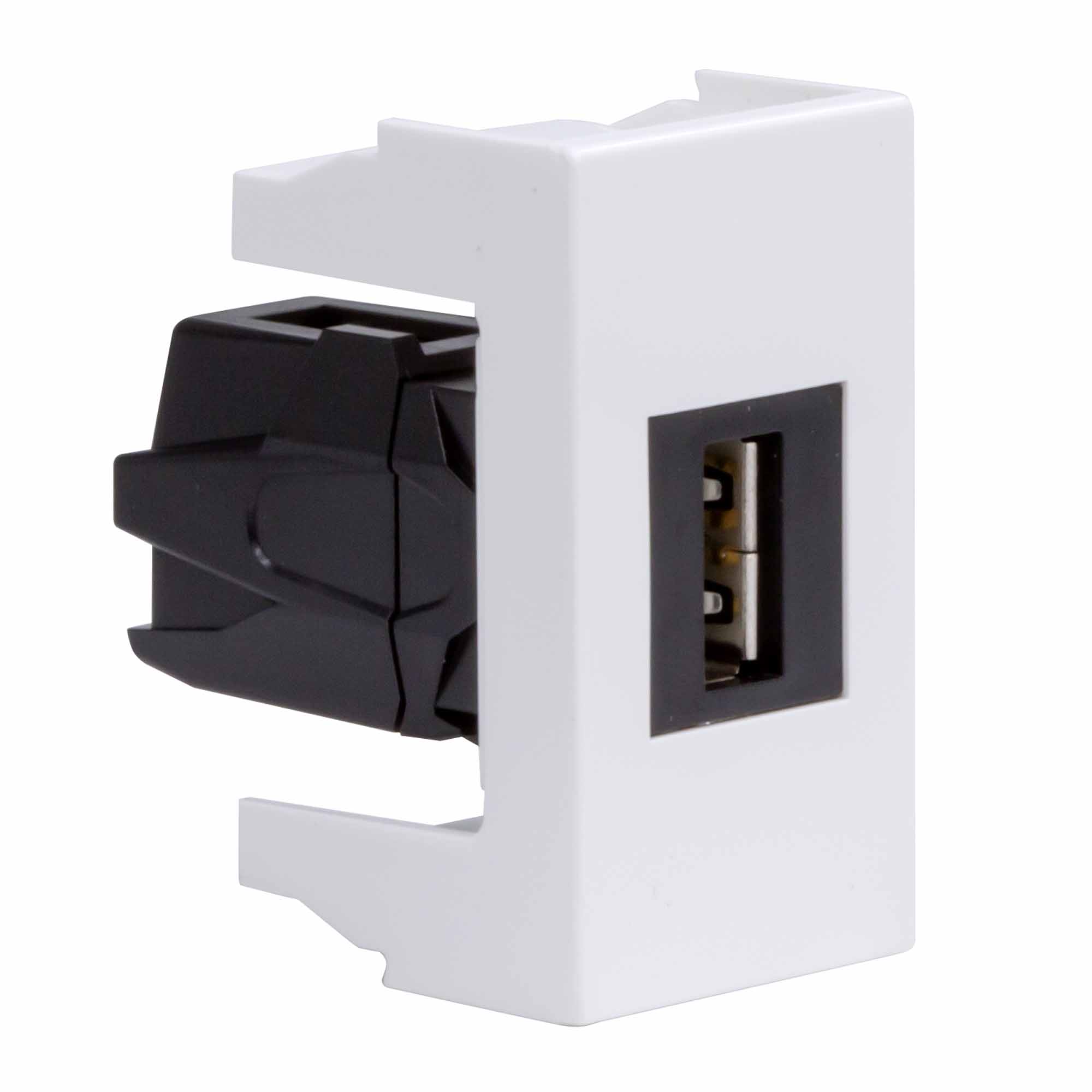

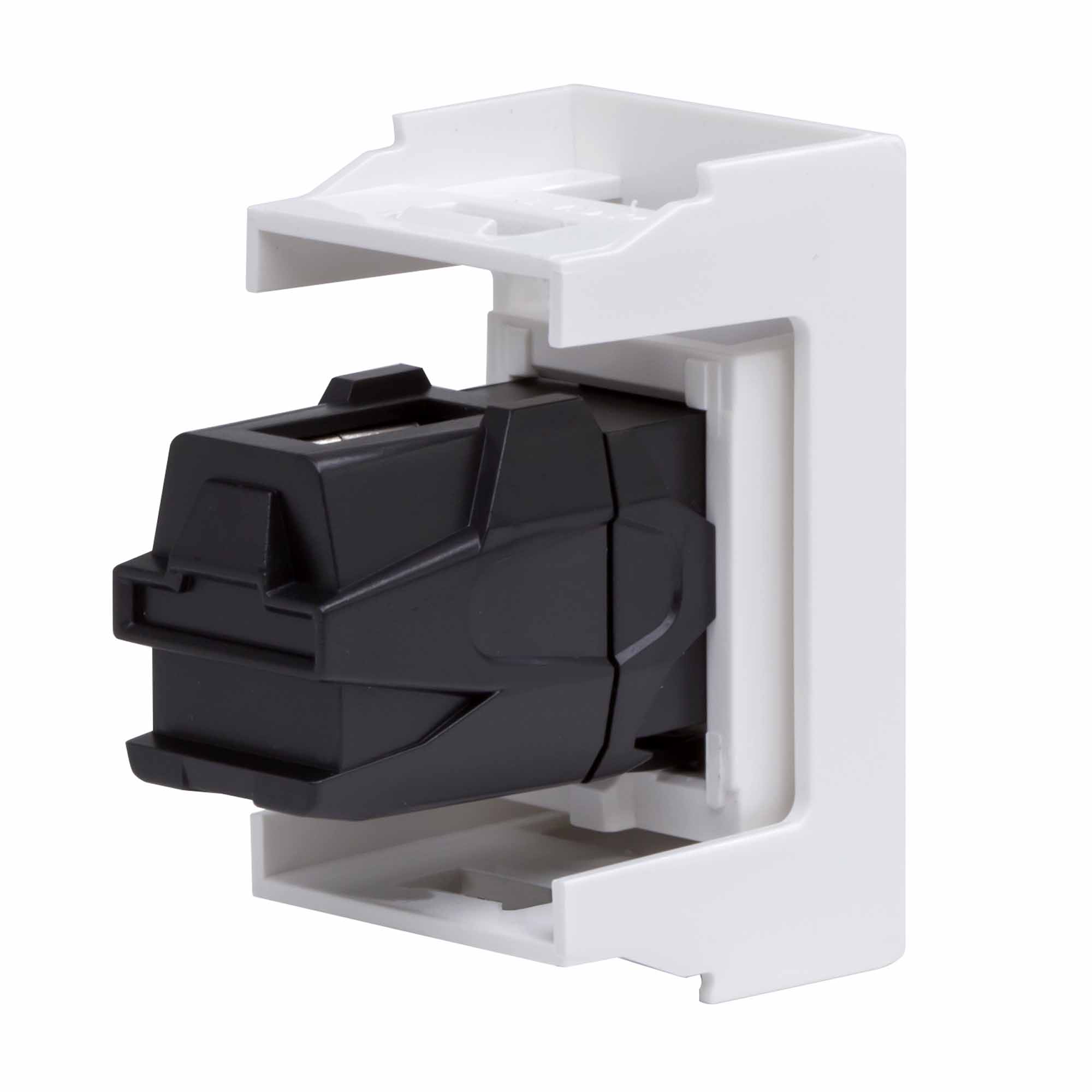

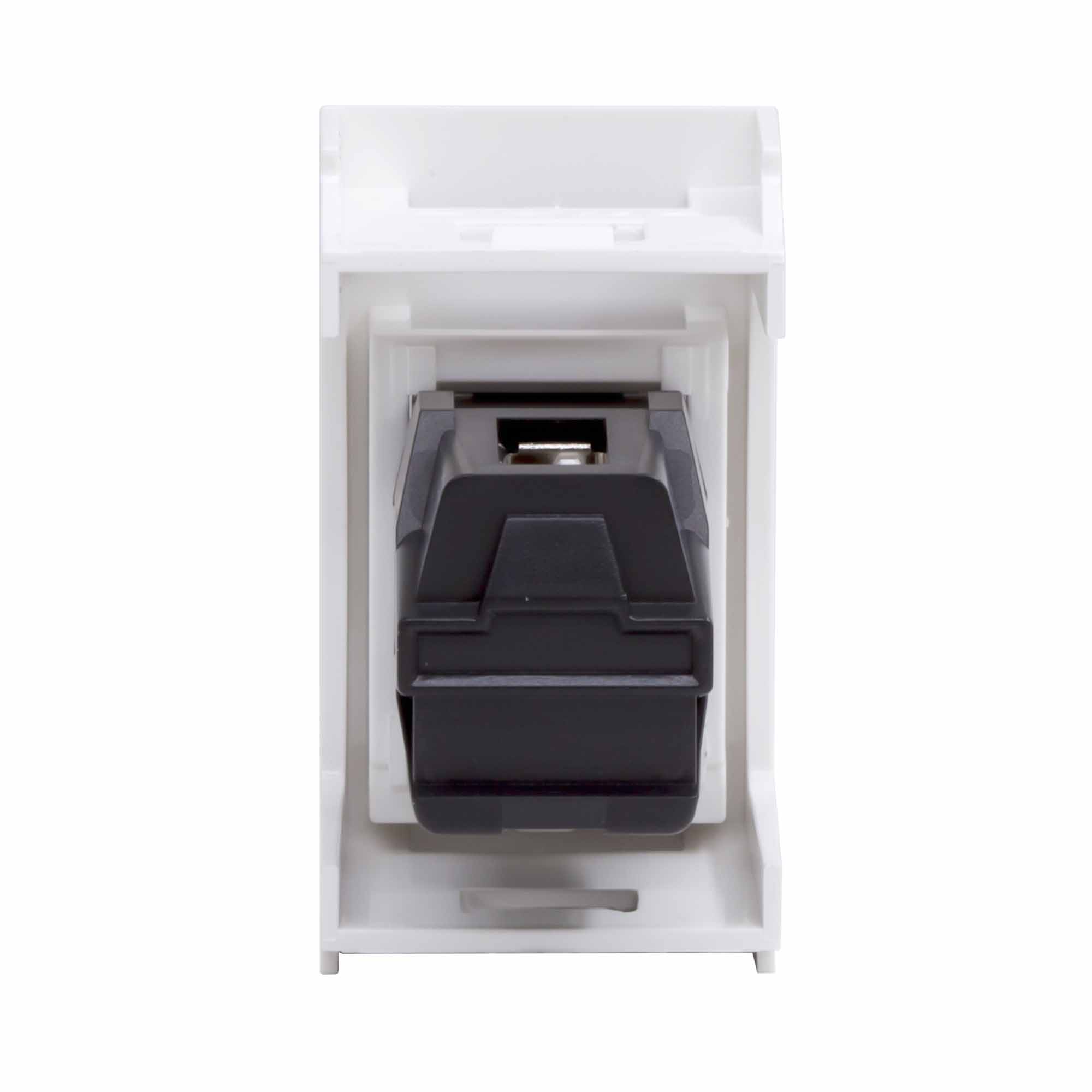

USB 2.0 socket Viva, tipe A-A, 1 mod, white

Code: 42018
USB 2.0 socket Viva, tipe A-A, 1 mod, white
USB 2.0 socket Viva, tipe A-A, 1 mod, white
Mounting method Surface mounted (plaster)
Assembly arrangement Central cover plate
Colour White
Halogen free Yes
With hinged lid No
Utilization USB
Surface protection Other
Strain relief No
Material quality Other
Material Plastic
Type of fastening Other
Luster terminal No
With dust cover No
With imprint No
Support ring No
Transparent No
Type of surface Matt
Suitable for degree of protection (IP) IP20
Imprintable label Without indication field
Type of connector USB
Number of modules 1
Decoration Декор по эскизу
With buses/couplings Yes
Category Other
Suitable for number of connectors 1
Colour coding No
Material of case ABC-plastic
Temperature of mounting, °C ­5°С ... +60°С

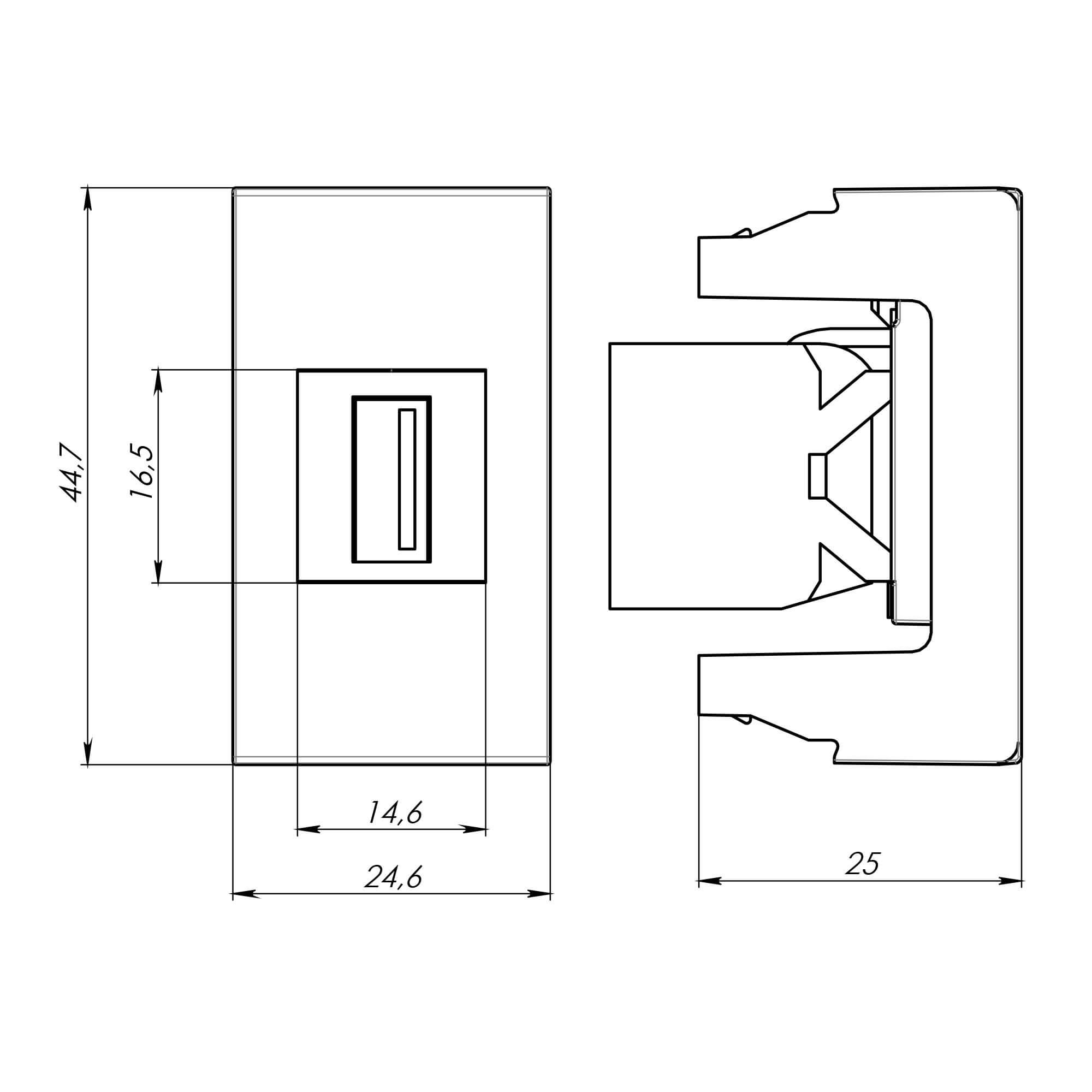

Width (nominal), mm 25
Ingress Protection rating, IP IP20
Temperature of operation, °C ­5°C ... +60°C
Temperature of operation, °C +60°C
Climate version UHL4
Height (nominal), mm 45
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Certificates
Name Document
In-liner_In-liner Front - Exemption letter for Sanitary-epidemiological conclusion for cable ducts and miniducts with accessories_1
PDF
1.14 MB
"In-liner_In-liner Front" - Certificate of conformity to GOST R for miniducts TMR and floor ducts CSP-F
PDF
514.76 kB
Exemption letter for junction boxes “Viva”, ”Express”, ”Octopus”
PDF
467.88 kB
"Viva"_Certificate of conformity to TR TC 004/2011 for power sockets series "Viva"
PDF
655.05 kB
Декларация о соответствии
PDF
2.29 MB
