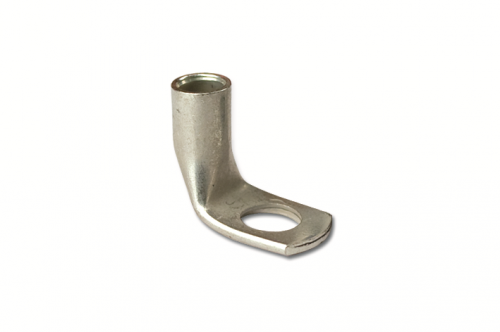

Power terminals screw, curved 90° 150mm² screw 10mm
Code: 2N10C
Power terminals screw, curved 90° 150mm² screw 10mm
Code: 2N10C
Insulated | Yes |
Surface protection | Tinned |
Nominal cross section, mm² | 150 |
Connecting angle | 90° |
Flange shape | Ring shape |
Material | Copper |
Bolt dimension (metric) | 10 |
With sight-hole | Yes |
Slender flange model | Yes |
Insulation | Not isolated |
Flange shape | Ring shape |
Drawings
Seria | Name | Eplan |
---|---|---|
Cable terminals -"Quadro"
|
