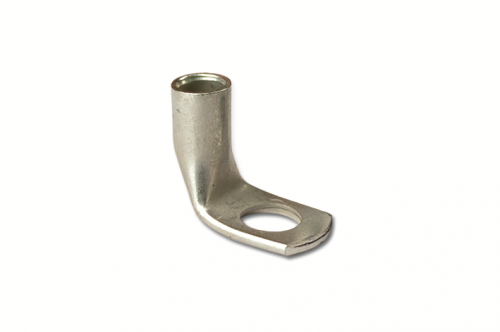

Power terminals screw, curved 90° 120mm² screw 16mm

Code: 2M16C
Power terminals screw, curved 90° 120mm² screw 16mm
Power terminals screw, curved 90° 120mm² screw 16mm
Insulated No
Surface protection Tinned
Nominal cross section, mm² 120
Connecting angle 90°
Flange shape Ring shape
Type of conductor Multi-wire
Material Copper
Bolt dimension metric (M..) 16
With sight-hole No
Slender flange model No
Insulation Not isolated
Flange shape Ring shape
