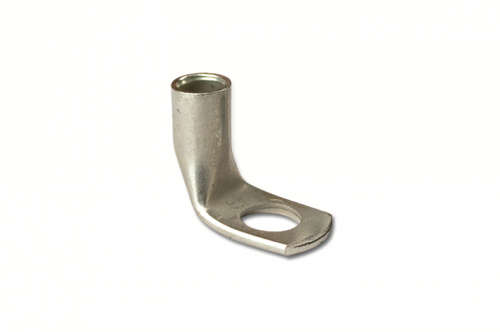

Power terminals screw, curved 90° 95mm² screw 12mm
Code: 2L12C
Power terminals screw, curved 90° 95mm² screw 12mm
Code: 2L12C
Removed from the product range
| Insulated | Yes |
| Surface protection | Tinned |
| Nominal cross section, mm² | 95 |
| Connecting angle | 90° |
| Flange shape | Ring shape |
| Material | Copper |
| Bolt dimension (metric) | 12 |
| With sight-hole | Yes |
| Slender flange model | Yes |
| Insulation | Not isolated |
| Flange shape | Ring shape |
| Product type | Non insulated terminals |
| nominal cross section | 95 mm² |
Drawings
| Seria | Name | Eplan |
|---|---|---|
|
Cable terminals -"Quadro"
|
