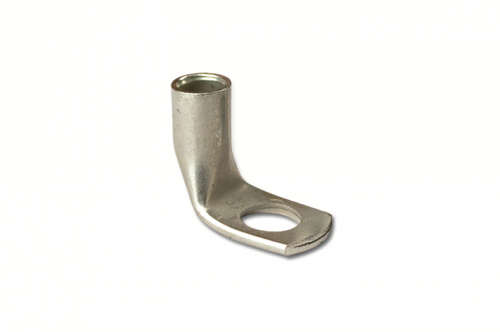

Power terminals screw, curved 90° 50mm² screw 8mm

Code: 2H8C

Power terminals screw, curved 90° 50mm² screw 8mm

Code: 2H8C
Removed from the product range
Insulated Yes
Surface protection Tinned
Nominal cross section, mm² 50
Connecting angle 90°
Flange shape Ring shape
Material Copper
Bolt dimension (metric) 8
With sight-hole Yes
Slender flange model Yes
Insulation Not isolated
Flange shape Ring shape
Product type Non insulated terminals
nominal cross section 50 mm²
Drawings
Seria Name Eplan
Cable terminals -"Quadro"
