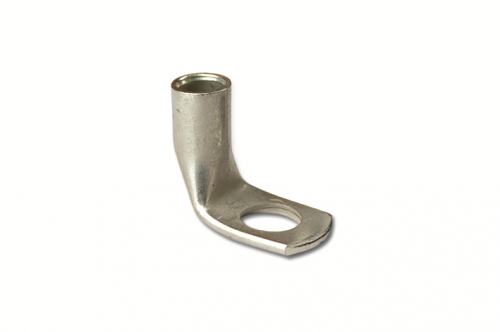

Power terminals screw, curved 90° 25mm² screw 5mm
Code: 2F5C
Power terminals screw, curved 90° 25mm² screw 5mm
Code: 2F5C
Insulated | Yes |
Surface protection | Tinned |
Nominal cross section, mm² | 25 |
Connecting angle | 90° |
Flange shape | Ring shape |
Material | Copper |
Bolt dimension (metric) | 5 |
With sight-hole | Yes |
Slender flange model | Yes |
Insulation | Not isolated |
Flange shape | Ring shape |
Drawings
Seria | Name | Eplan |
---|---|---|
Cable terminals -"Quadro"
|
