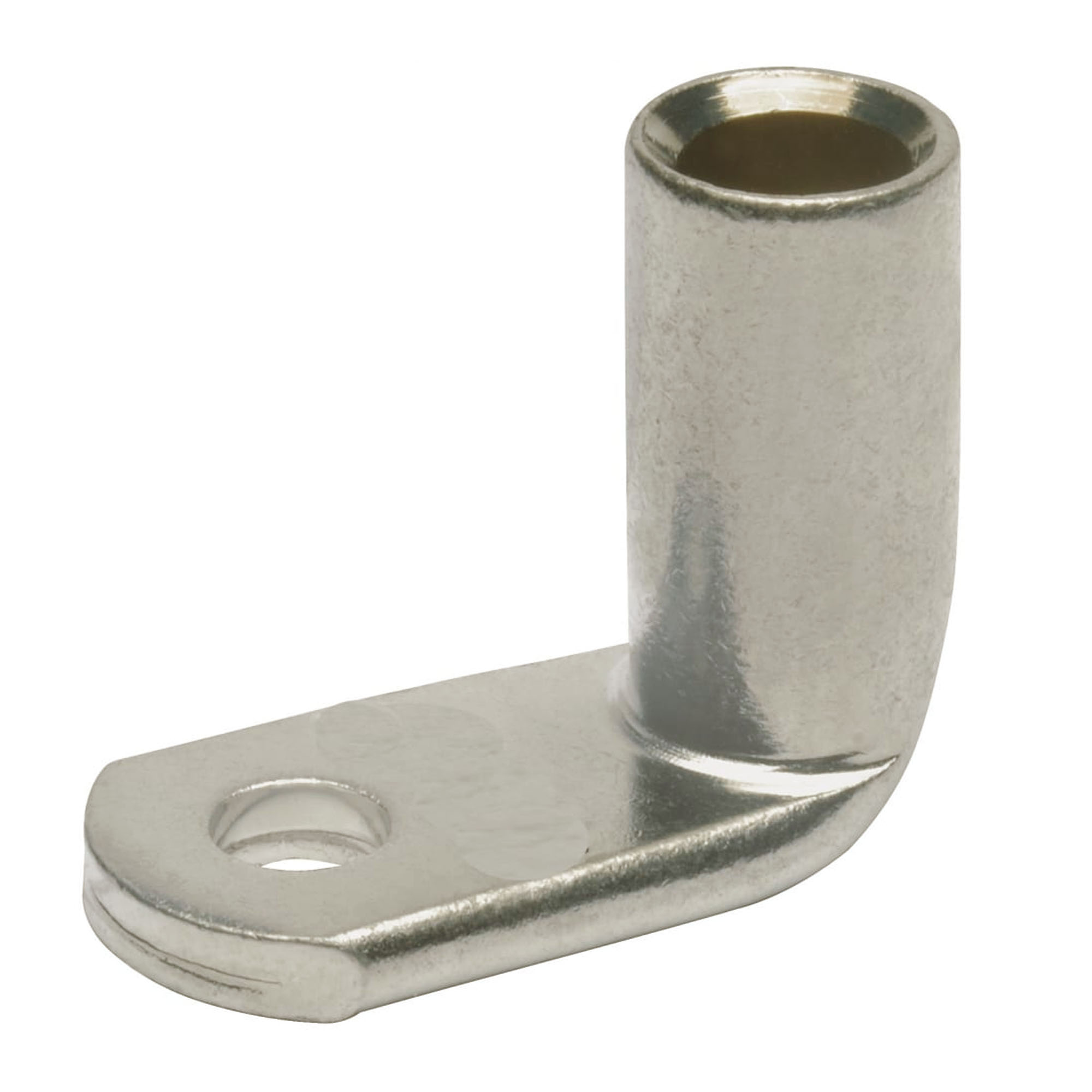

Power terminals screw, curved 90° 16mm² screw 4mm

Code: 2E4C
Power terminals screw, curved 90° 16mm² screw 4mm
Power terminals screw, curved 90° 16mm² screw 4mm
Material Brass
Width, mm 12
Length, mm 29
Insulated No
Surface protection Tinned
Nominal cross section, mm2 16
Connecting angle 90°
Flange shape Ring shape
Type of conductor Multi-wire
Material Copper
Bolt dimension metric (M..) 4
With sight-hole No
Slender flange model No
