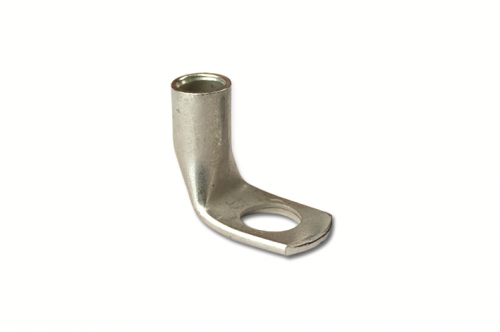

Power terminals screw, curved 90° 10mm² screw 6mm

Code: 2D6C

Power terminals screw, curved 90° 10mm² screw 6mm

Code: 2D6C
Removed from the product range
Insulated Yes
Surface protection Tinned
Nominal cross section, mm² 10
Connecting angle 90°
Flange shape Ring shape
Material Copper
Bolt dimension (metric) 6
With sight-hole Yes
Slender flange model Yes
Insulation Not isolated
Flange shape Ring shape
Product type Non insulated terminals
nominal cross section 10 mm²
