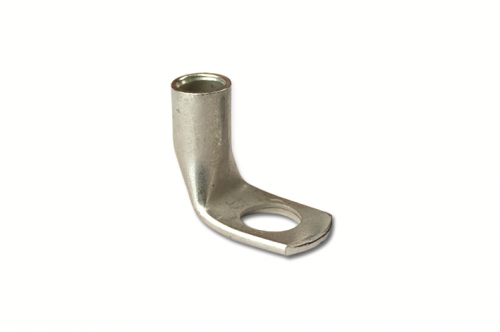

Power terminals screw, curved 90° 10mm² screw 4mm

Code: 2D4C
Removed from the product range
Power terminals screw, curved 90° 10mm² screw 4mm
  • To ask a question
Insulated No
Surface protection Tinned
Nominal cross section, mm² 10
Connecting angle 90°
Flange shape Ring shape
EF001340 EV000424
Material Copper
Bolt dimension (metric) 4
With sight-hole No
Slender flange model No
Insulation Not isolated
Flange shape Ring shape
Product type Non insulated terminals
nominal cross section 10 mm²
Drawings
Seria Name Eplan
Cable terminals -"Quadro"
