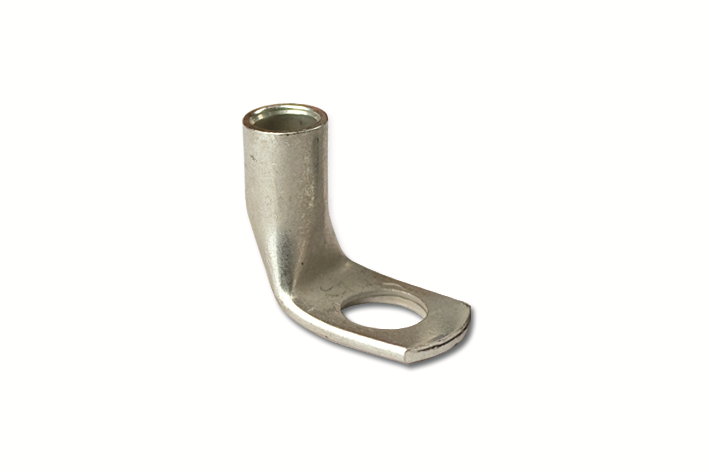

Power terminals screw, curved 90° 10mm² screw 3mm

Code: 2D3C
Material Brass
Width, mm 10
Length, mm 26
Insulated No
Surface protection Tinned
Nominal cross section, mm2 10
Connecting angle 90°
Flange shape Ring shape
Type of conductor Multi-wire
Material Copper
Bolt dimension metric (M..) 3
With sight-hole No
Slender flange model No
Drawings
Seria Name Eplan
Quadro - cable terminals
