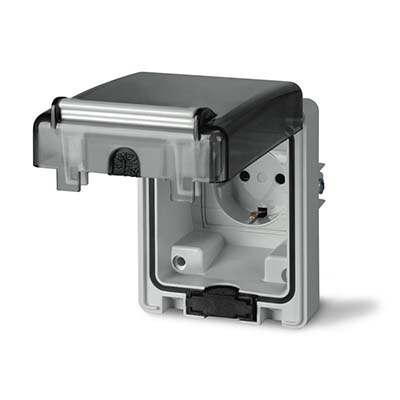

Flush mounting socket with extended protection. IP66. Compact
Code: DIS5706407
Flush mounting socket with extended protection. IP66. Compact
Code: DIS5706407
Number of poles | 3 |
Material | Plastic |
IEC-amperage, A | 16 |
Degree of protection (IP) | IP66 |
Military model | No |
Clock hour position, h | 6 |
Identification colour | Grey |
Voltage according to EN 60309-2 | Other |
Flange size vertical, mm | 107 |
Flange size horizontal, mm | 84 |
Angle of plug | Angled |
Connection system | Screwed terminal |
Contact less detection of the sense of rotation | No |
For heavy conditions (according to VDE) | No |
Phase inverter | No |
Empty locations on mounting rail | No |
Number of height units | 1 |
With earth leakage switch | No |
Total number of groups | 1 |
Width of device | 84 |
Height of device | 107 |
Depth of device | 111 |
Color | gray |
Material of case | Ployamide |
Height, mm | 106.5 |
Width, mm | 84 |
Temperature of mounting, °C | -50...+60 |
Ingress Protection rating, IP | IP66 |
Temperature of operation, °C | -50 - +60 |
Temperature of operation, °C | 60 |
Shock resistance, J | 5 |
Depth, mm | 97.3 |
Product type | Domestic flush-mounting socket |
Voltage | 230 V |
