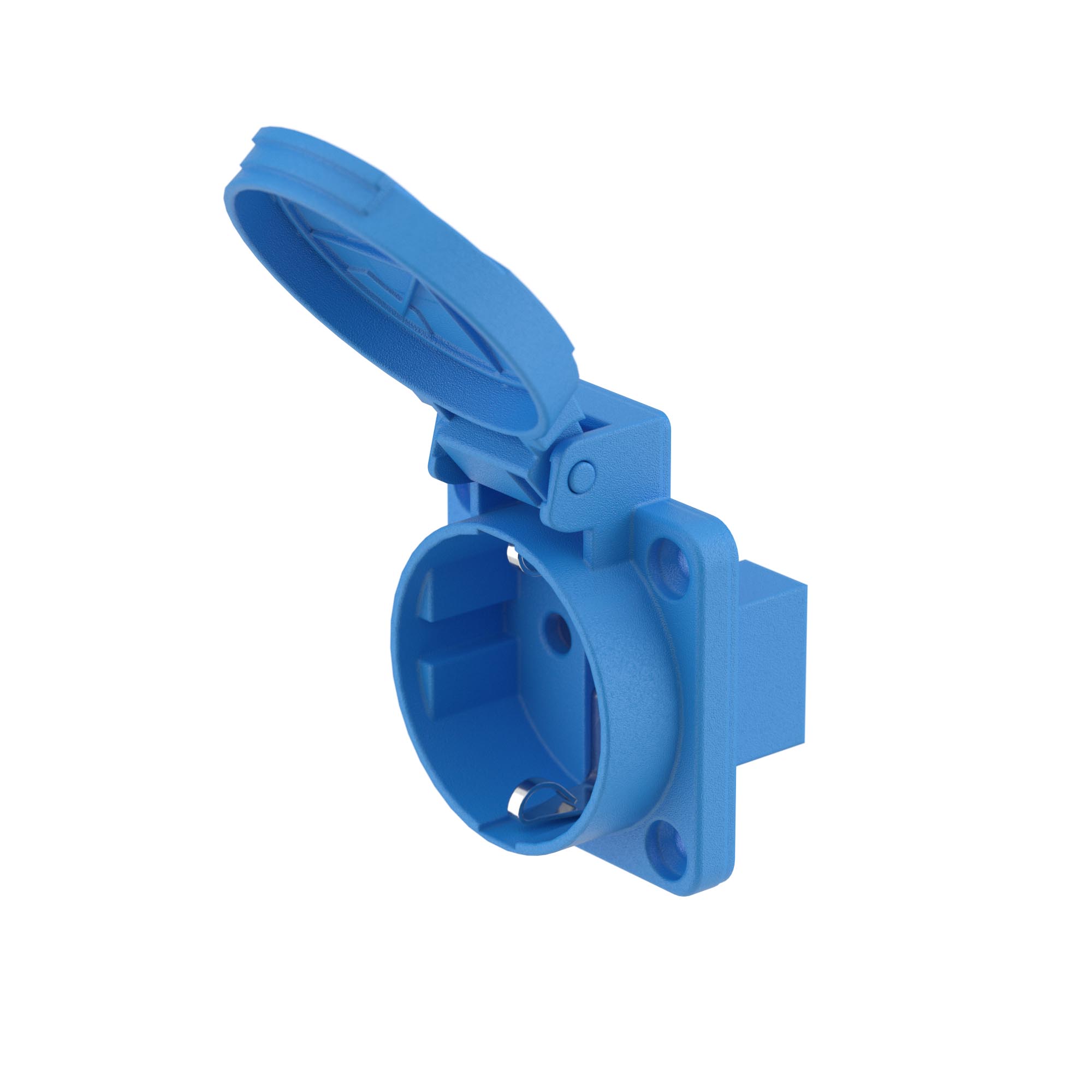

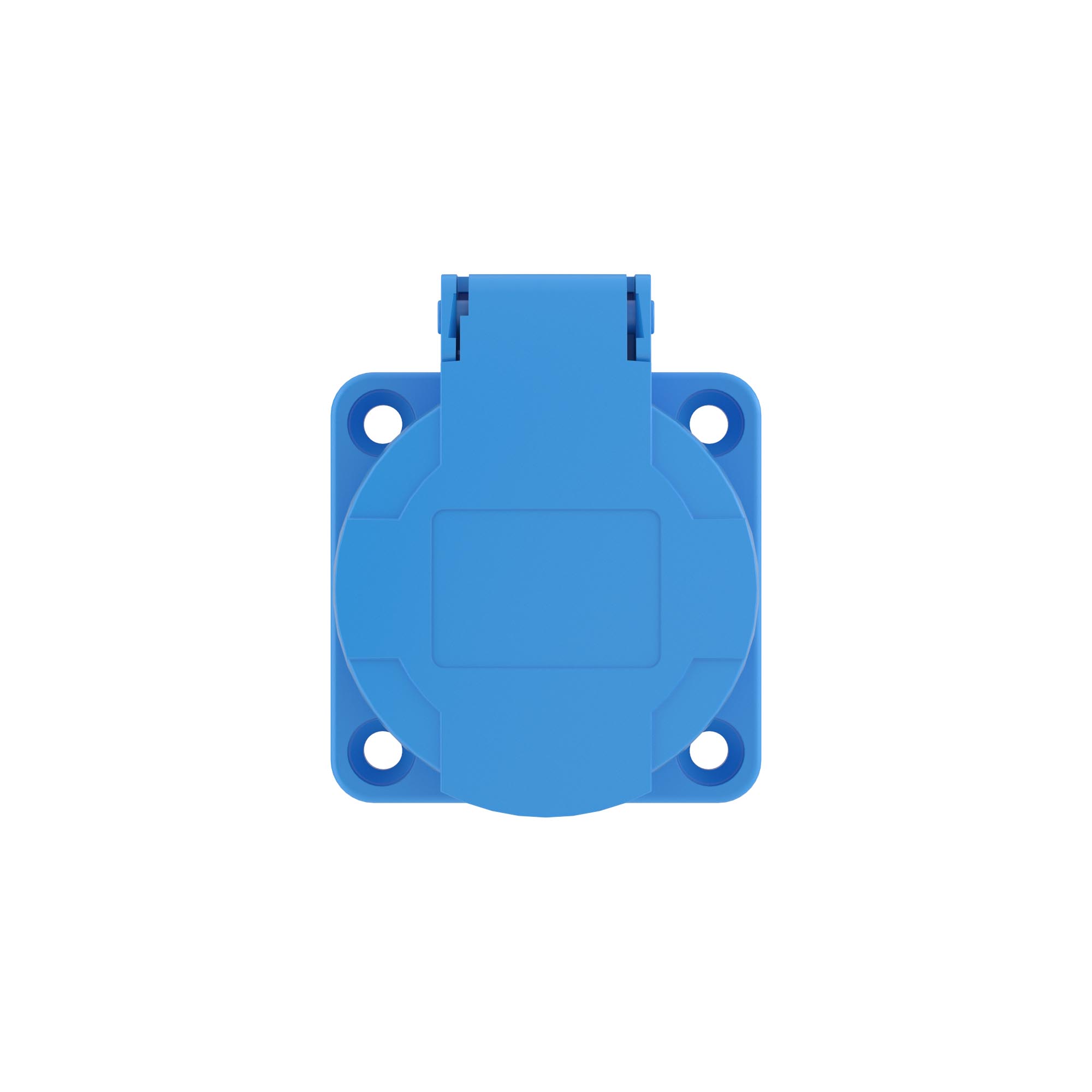

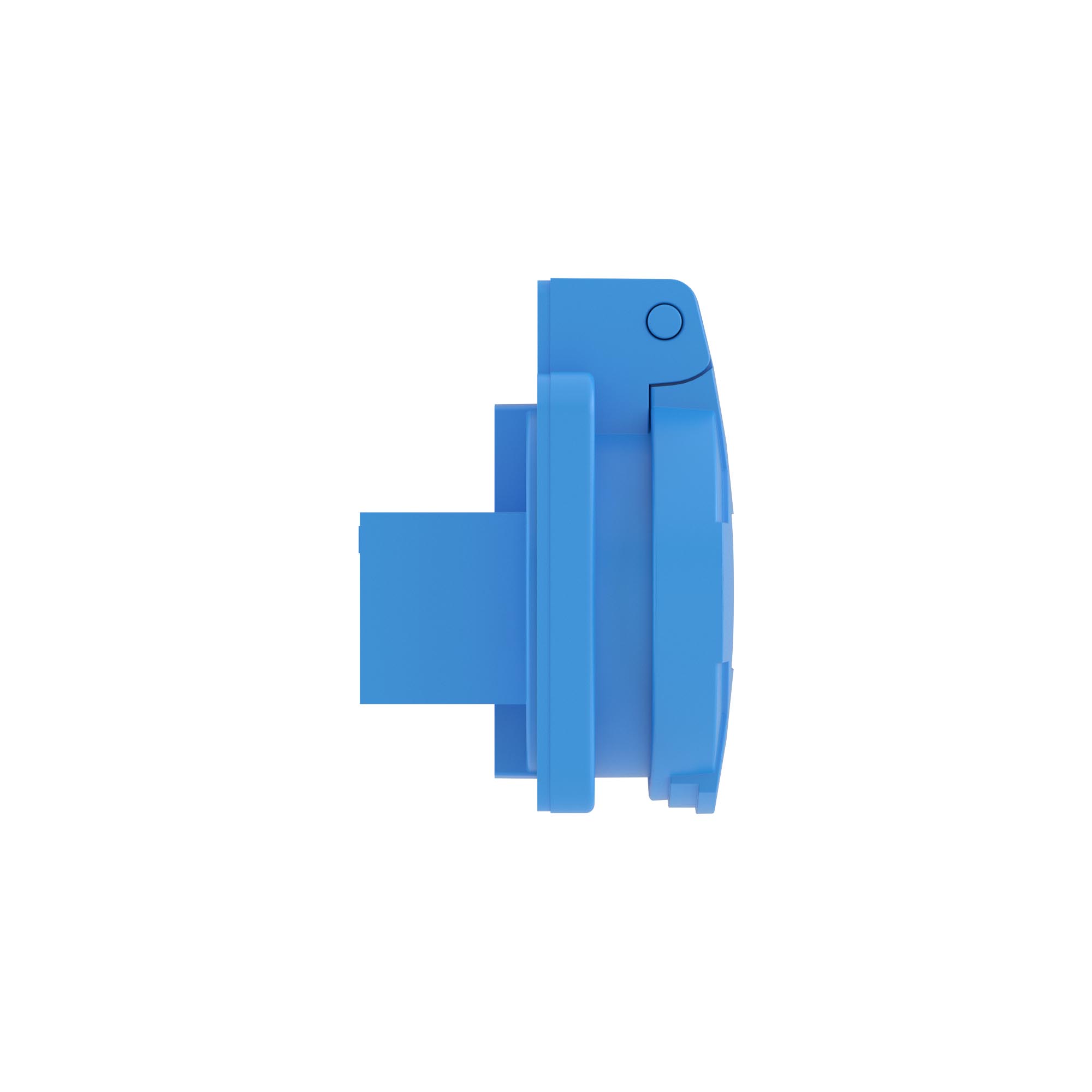

Shuko socket. IP54 protection

Code: DIS5702061
Shuko socket. IP54 protection
Shuko socket. IP54 protection
Height, mm 54
Width, mm 54
Temperature of operation, °C 60
Shock resistance, J 5
Depth, mm 44
Number of poles 3
Material Plastic
IEC-amperage, A 16
Degree of protection (IP) IP54
Military model No
Clock hour position, h 6
Identification colour Blue
Voltage acc. EN 60309-2 Other

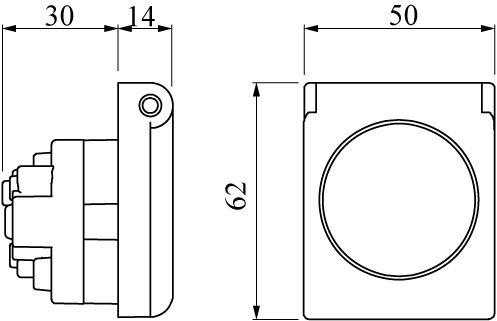

Flange size vertical, mm 62
Flange size horizontal, mm 50
Angle of plug Straight
Connection system Screwed terminal
Contact less detection of the sense of rotation No
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Width of device 96
Height of device 82
Depth of device 47
