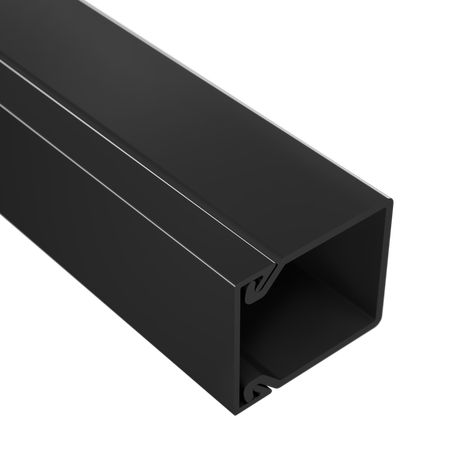

TA-EN 25x30 Cable trunking with cover, black

Code: 00323A
TA-EN 25x30 Cable trunking with cover, black
  • To ask a question
Colour Black
Width, mm 25
Height, mm 30
RAL-number 9016
Surface protection Other
Cover model Loose
Material quality PVC
Length, mm 2000
Material Plastic
Type of fastening Snapper mounting
With cable fixing clip No
With duct connector No
Useful cross section, mm² 568
Protection film No
Delivery on roll No
Transparent No
Suitable for circuit integrity No
Color Black
Material PVC
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 25
Ingress Protection rating, IP IP40
Average filled area, sq.mm 568
Summarized profile area (max), sq.mm 568
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Shock resistance, J 6
Climate version UHL4
Q'ty of bays 1
Voltage of disruption, V More 2500
Height (nominal), mm 30
Fire protection It is not spread combustion (corresponds to the requirements of №123-ФЗ 22.07.2008, ГОСТ Р 53313-2009)
Self-glueing base false
Type magistral
Product type Cable duct with a cover
