| Mounting method | Flush mounted (plaster) |
| Colour | Grey |
| Width, mm | 73 |
| Model | Single |
| Halogen free | No |
| Surface protection | Other |
| Construction type | Built-in installation box (device box) |
| Length, mm | 127 |
| Sealable | No |
| Circuit integrity | None |
| Material | Plastic |
| Number of inlets | 2 |
| Mounting switching equipment | Screwing |
| Luminaire hook mounting | No |
| With screening | No |
| With nail lugs | No |
| With screws | No |
| Wind proof | Yes |
| Degree of protection (IP) | IP67 |
| Inlet from the rear | Yes |
| Pipe locking | No |
| Clamp position fixed | No |
| Nozzle | Other |
| Width of device | 73 |
| Height of device | 127 |
| Depth of device | 83 |
| Shape | Other |
| For tube diameter | Other |
| Type of housing feed-through | Preembossing |
| Equipped with | Other |
| Cover attachment | Screwed |
| Number of modules | 1 |
| Depth | 83 |
| Temperature of mounting, °C | -50 ... +60 |
| Temperature of operation, °C | from -50 to +60 |
| Temperature of operation, °C | 60 |
| Shock resistance, J | 2 |
| Depth, mm | 83.1 |
| Product type | Accessories |

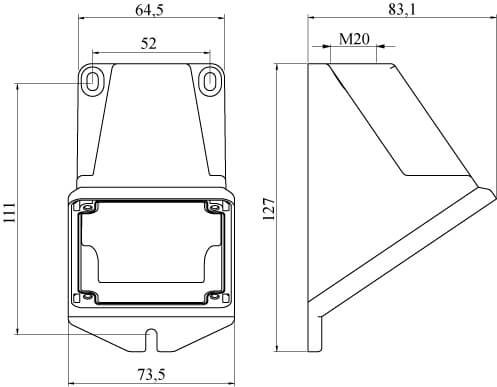

Drawings
| Seria | Name | DWG | Eplan |
|---|---|---|---|
|
Industrial plugs
|
|
||
|
Industrial plugs
|
|
