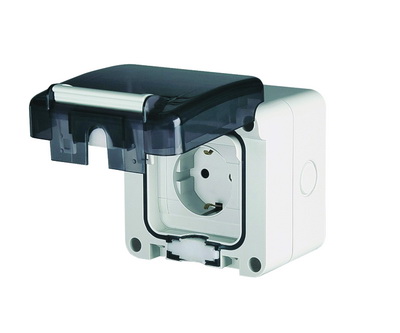

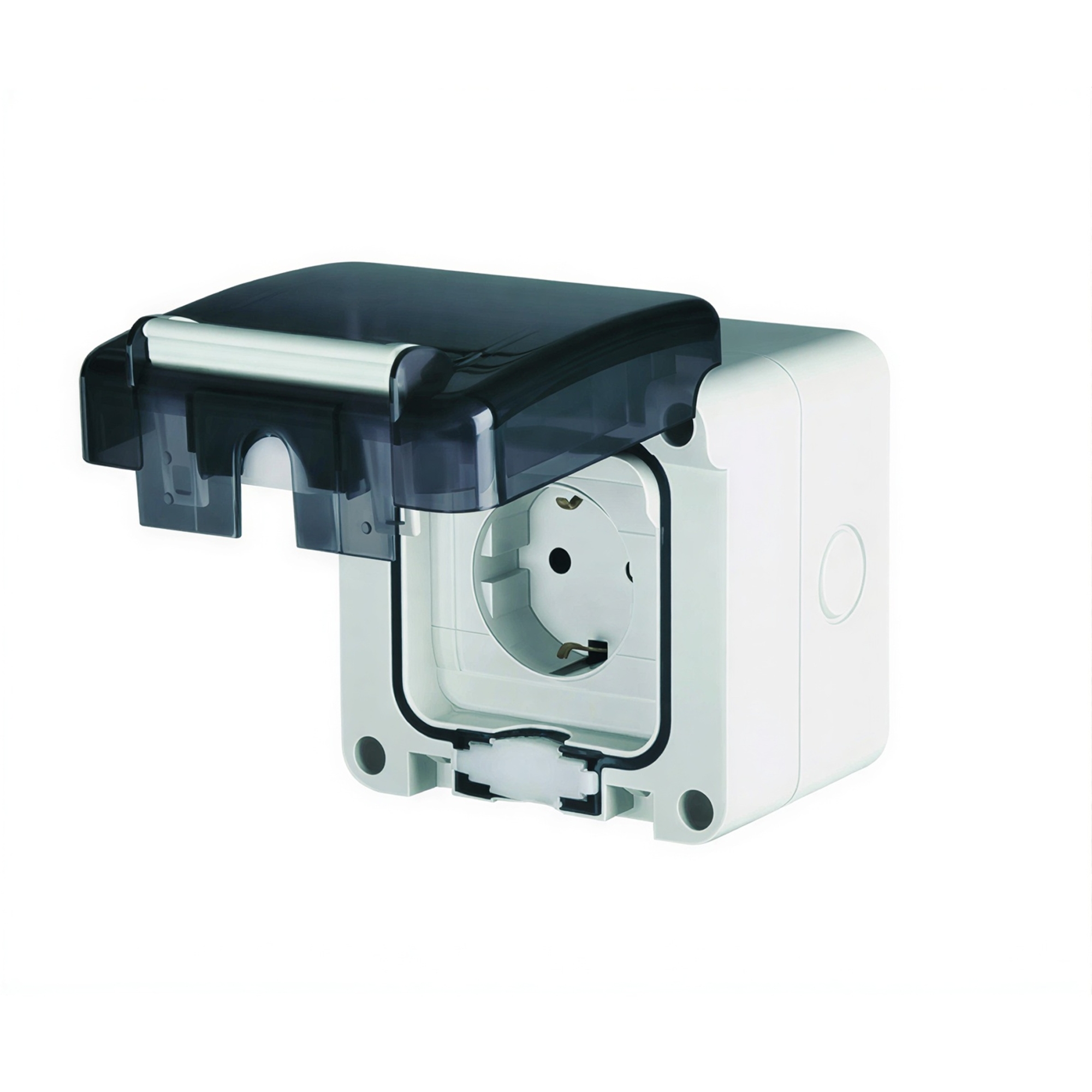

Waterproof socket. Surface
Code: DIS1376407
Waterproof socket. Surface
Code: DIS1376407
| Number of poles | 3 |
| Material | Plastic |
| IEC-amperage, A | 16 |
| Degree of protection (IP) | IP66 |
| Military model | No |
| Identification colour | Grey |
| Voltage according to EN 60309-2 | Other |
| Flange size vertical, mm | 95 |
| Flange size horizontal, mm | 95 |
| Angle of plug | Angled |
| Connection system | Screwed terminal |
| Contact less detection of the sense of rotation | No |
| For heavy conditions (according to VDE) | No |
| Phase inverter | No |
| Empty locations on mounting rail | No |
| Number of height units | 1 |
| With earth leakage switch | No |
| Total number of groups | 1 |
| Width of device | 95 |
| Height of device | 95 |
| Depth of device | 91 |
| Ingress Protection rating, IP | IP66 |
| Temperature of operation, °C | -50 - +60 |
| Temperature of operation, °C | 60 |
| Shock resistance, J | 2 |
| Product type | Domestic surface mounting socket |
| Voltage | 230 V |

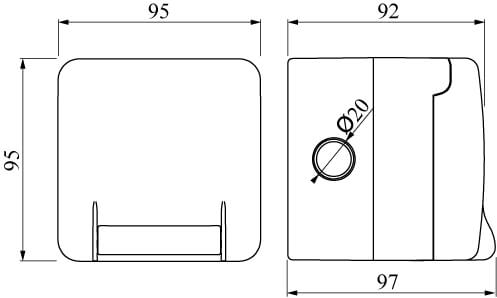

Drawings
