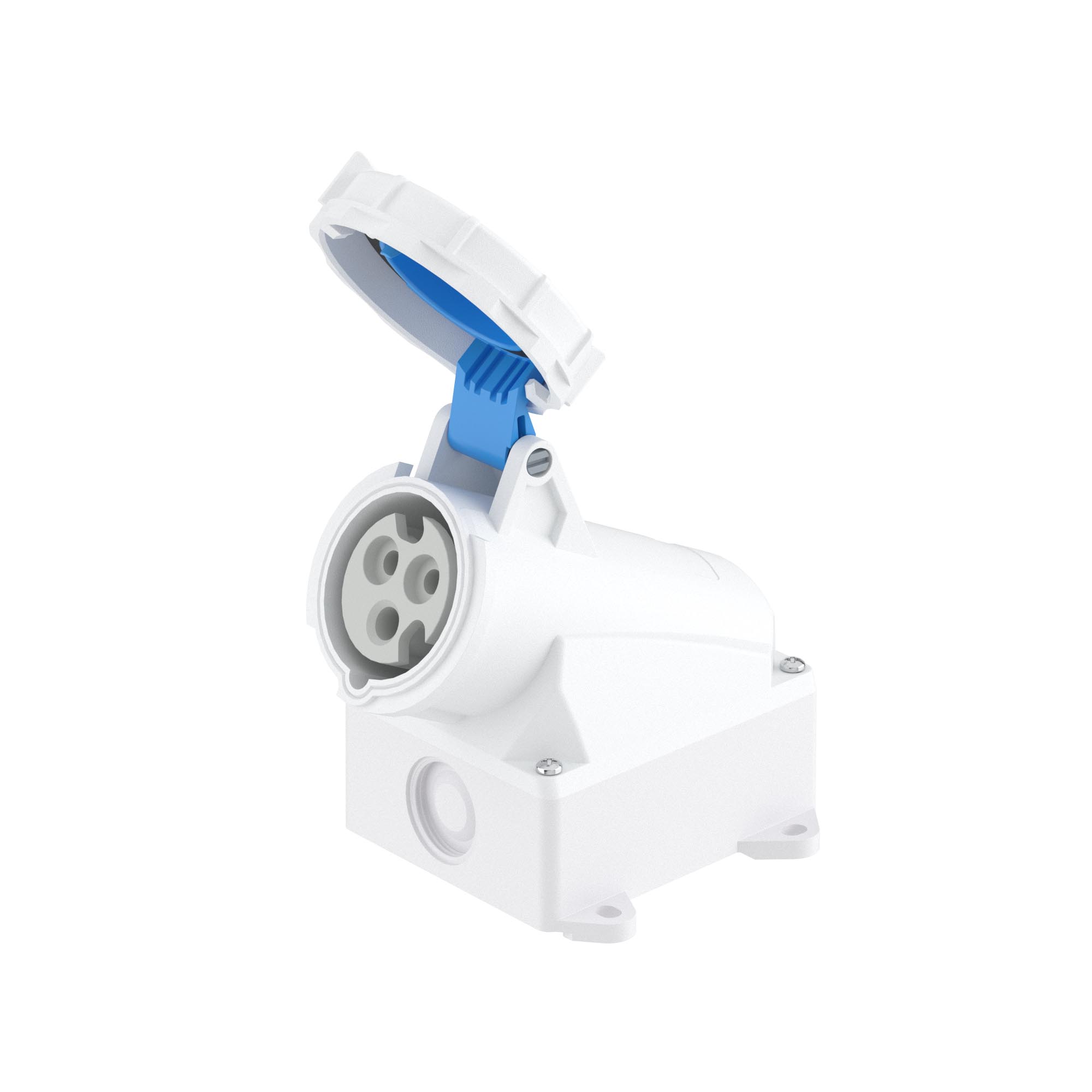

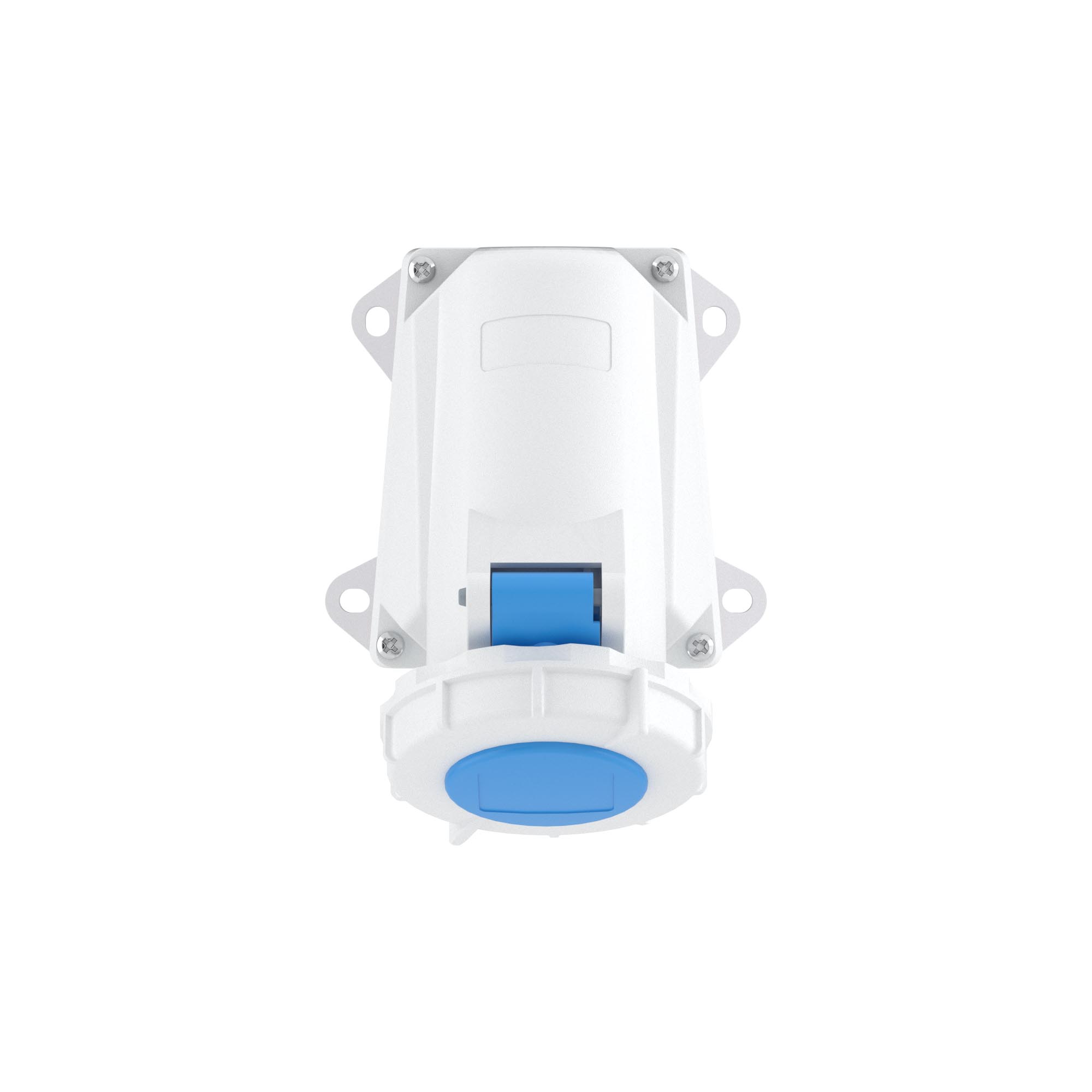

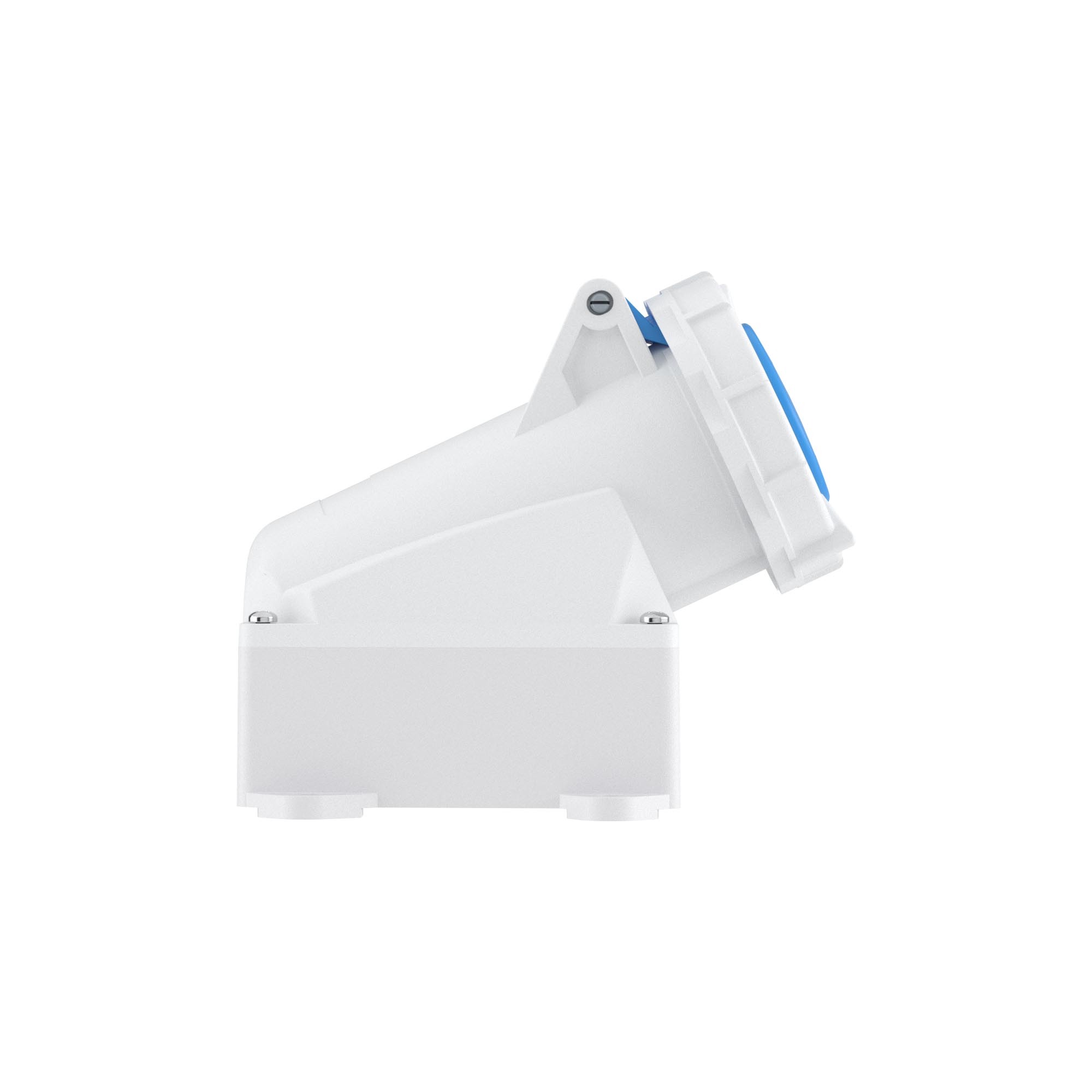

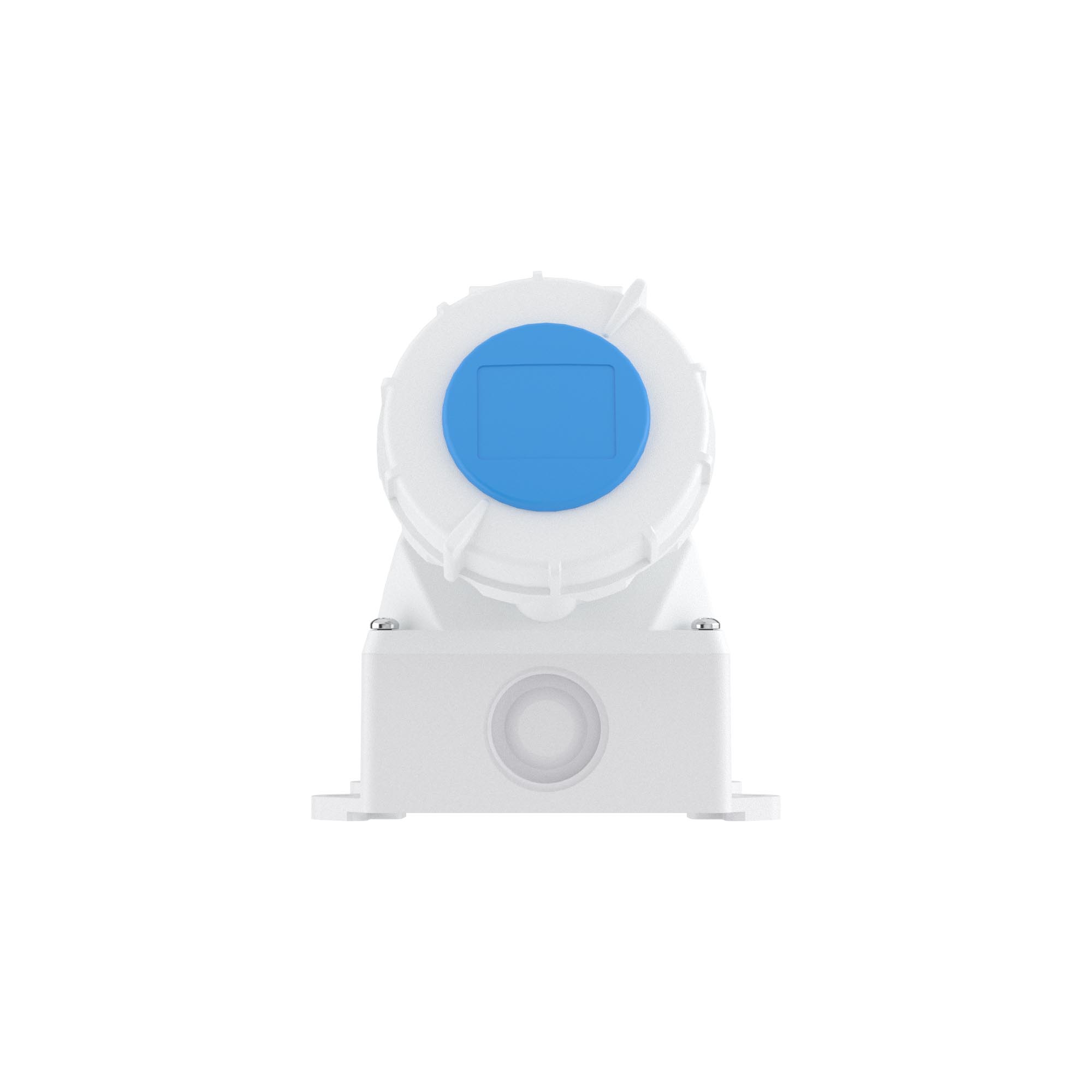

Surface mounting socket IP67 16A 2P+E 230V

Code: DIS5181653T

Surface mounting socket IP67 16A 2P+E 230V

Code: DIS5181653T
Model Surface mounted (plaster)
Number of poles 3
Material Plastic
Type of fastening External mounting
IEC-amperage, A 16
Degree of protection (IP) IP67
Military model No
Identification colour Blue
Voltage according to EN 60309-2 230 V (50+60 Hz) blue
Connection system Screwed terminal
Contact less detection of the sense of rotation No
Angle of plug Straight
For heavy conditions (according to VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Flange size vertical 96
Flange size horizontal 94
Width of device 94
Height of device 132
Depth of device 110
Height, mm 131
Width, mm 94
Temperature of operation, °C 60
Shock resistance, J 5
Depth, mm 110
Product type Surface mounting socket
Voltage 230 V

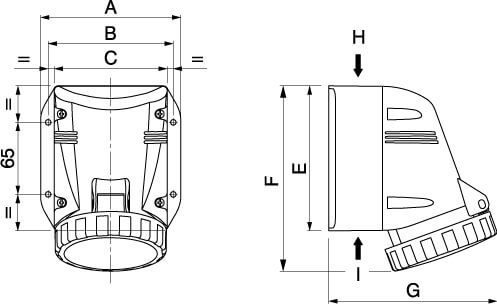

Drawings
