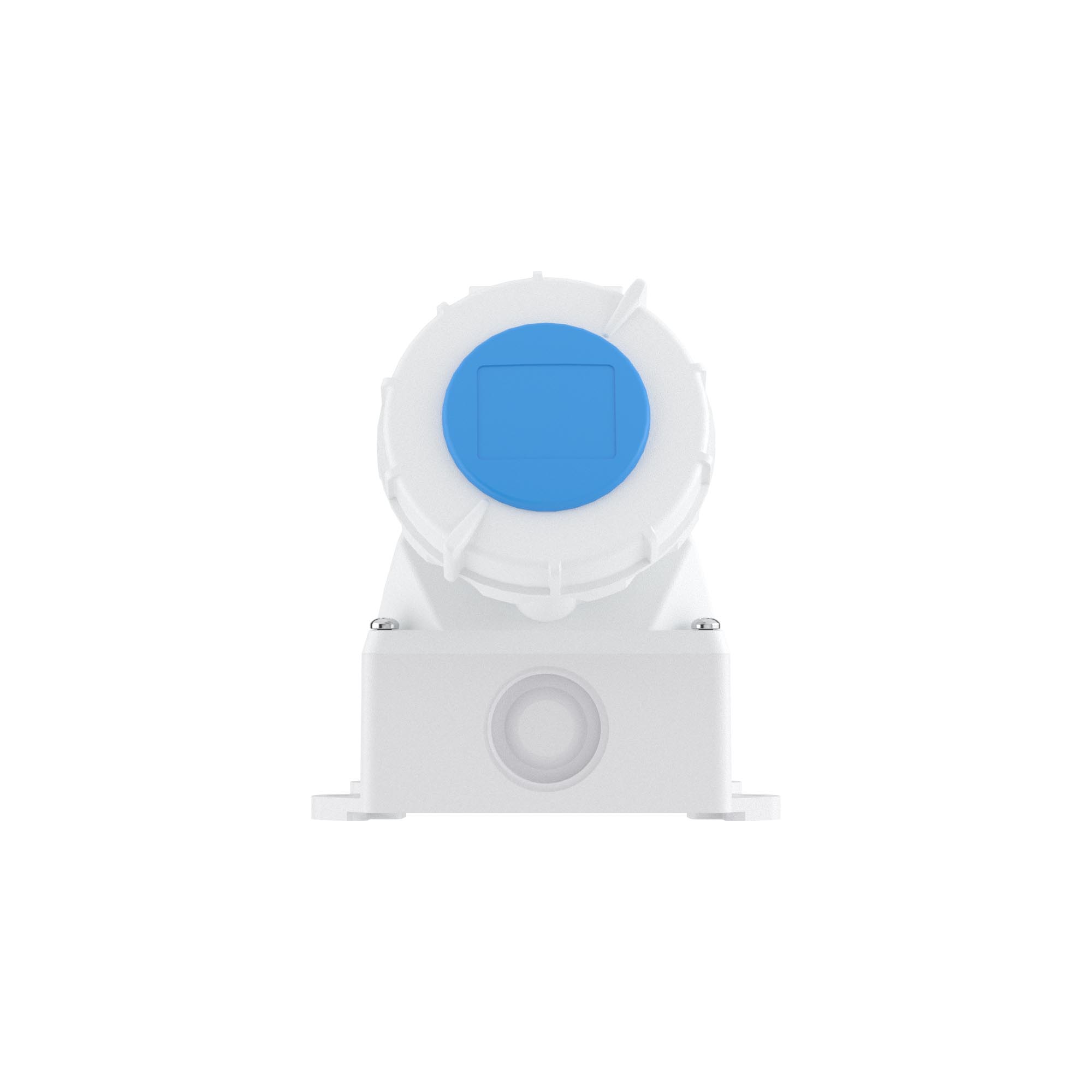

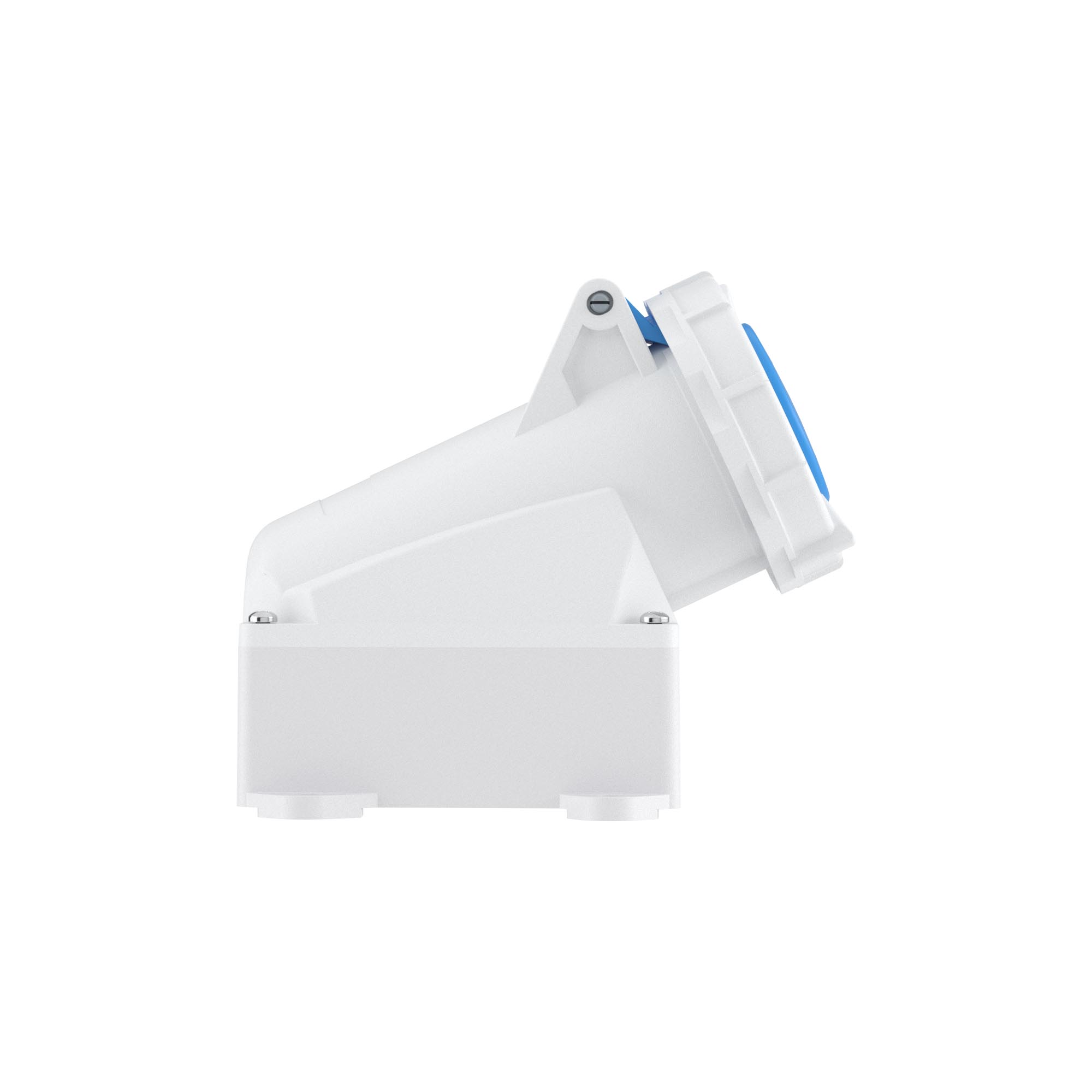

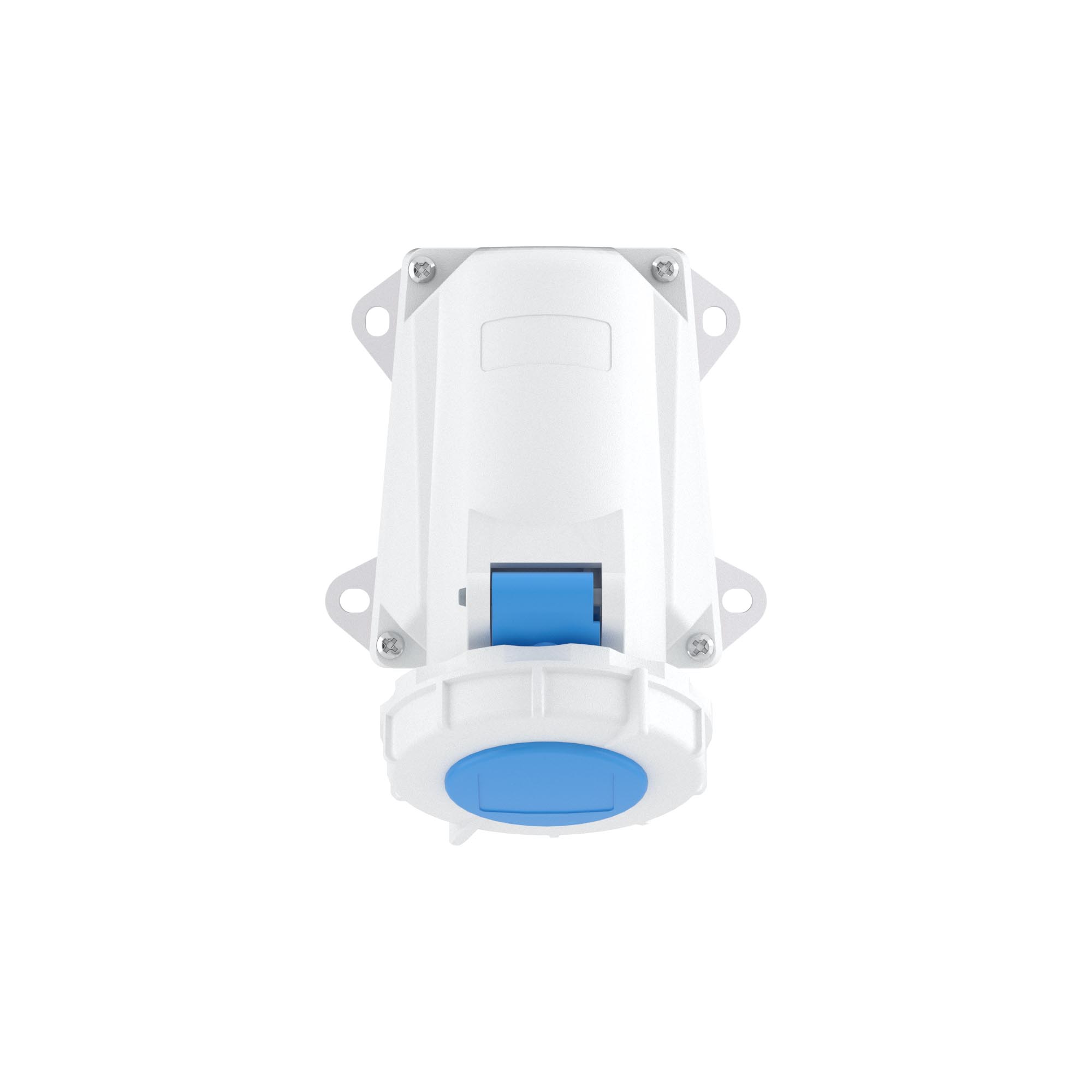

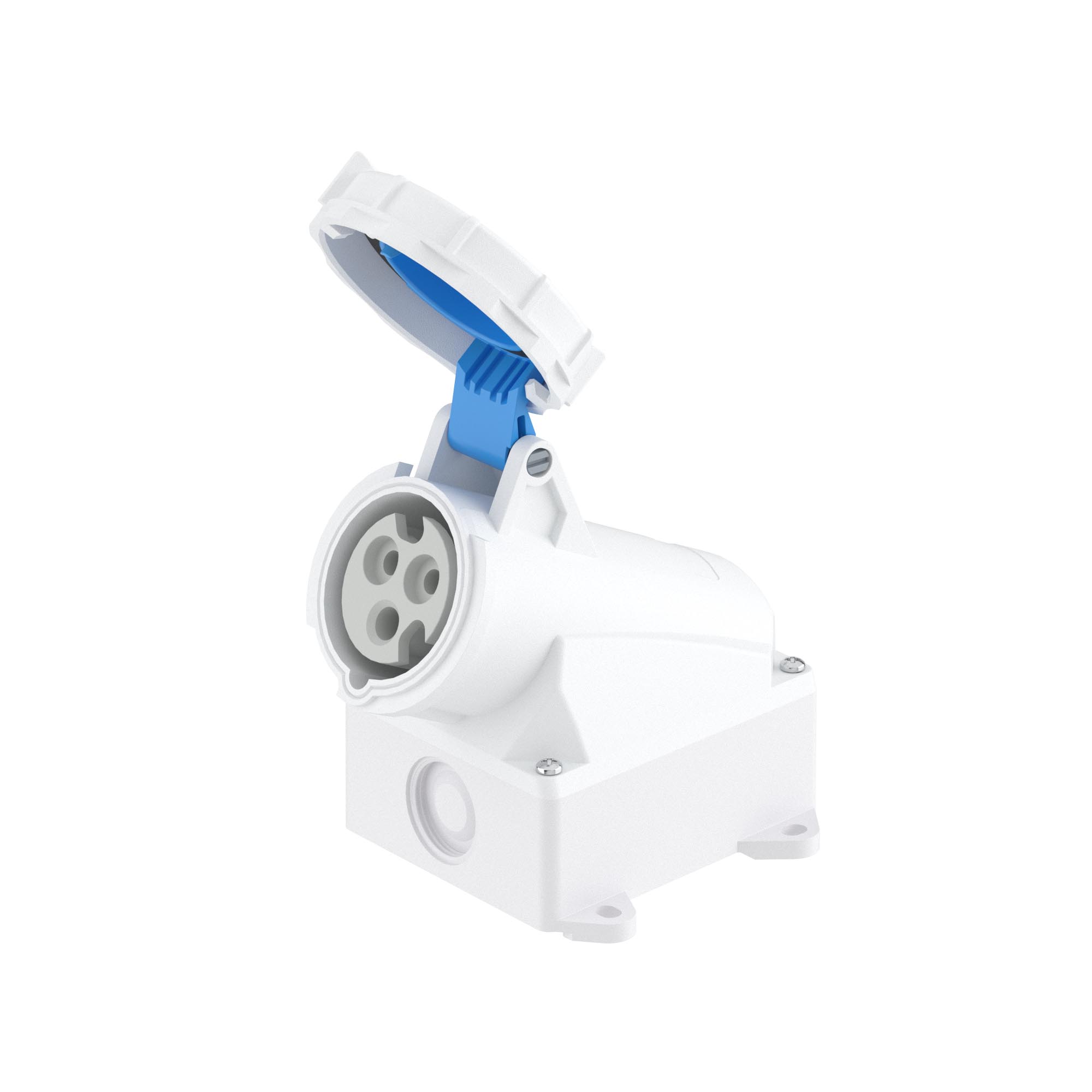

Surface mounting socket IP67 63A 2P+E 230V

Code: DIS5156353

Surface mounting socket IP67 63A 2P+E 230V

Code: DIS5156353
Model Surface mounted (plaster)
Number of poles 3
Material Plastic
Type of fastening External mounting
IEC-amperage, A 63
Degree of protection (IP) IP67
Military model No
Identification colour Blue
Voltage according to EN 60309-2 230 V (50+60 Hz) blue
Connection system Screwed terminal
Contact less detection of the sense of rotation No
Angle of plug Straight
For heavy conditions (according to VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Flange size vertical 165
Flange size horizontal 118
Width of device 118
Height of device 218
Depth of device 176
Height, mm 267
Width, mm 115
Temperature of operation, °C 60
Shock resistance, J 5
Depth, mm 125
Product type Surface mounting socket
Voltage 230 V

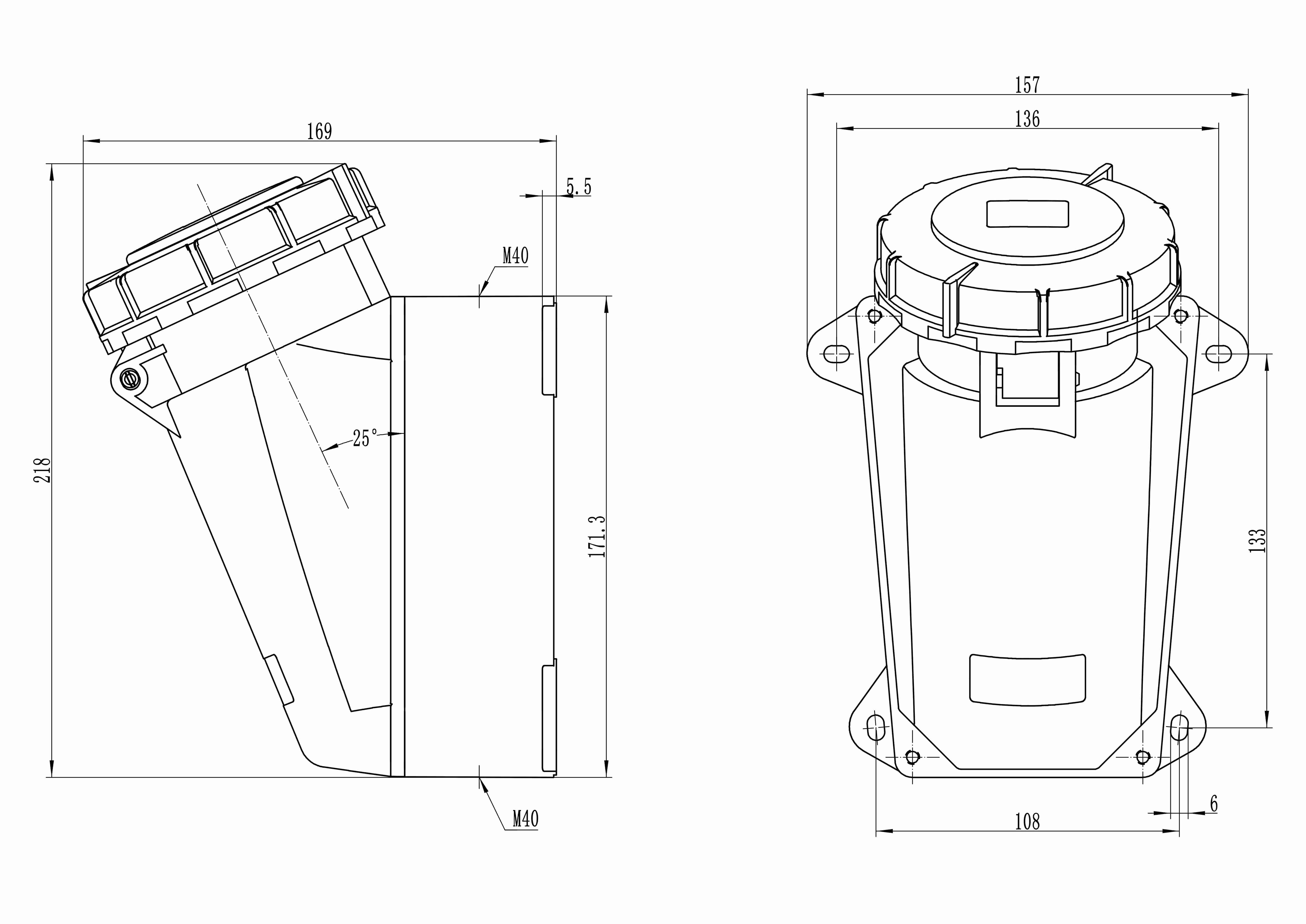

Drawings
