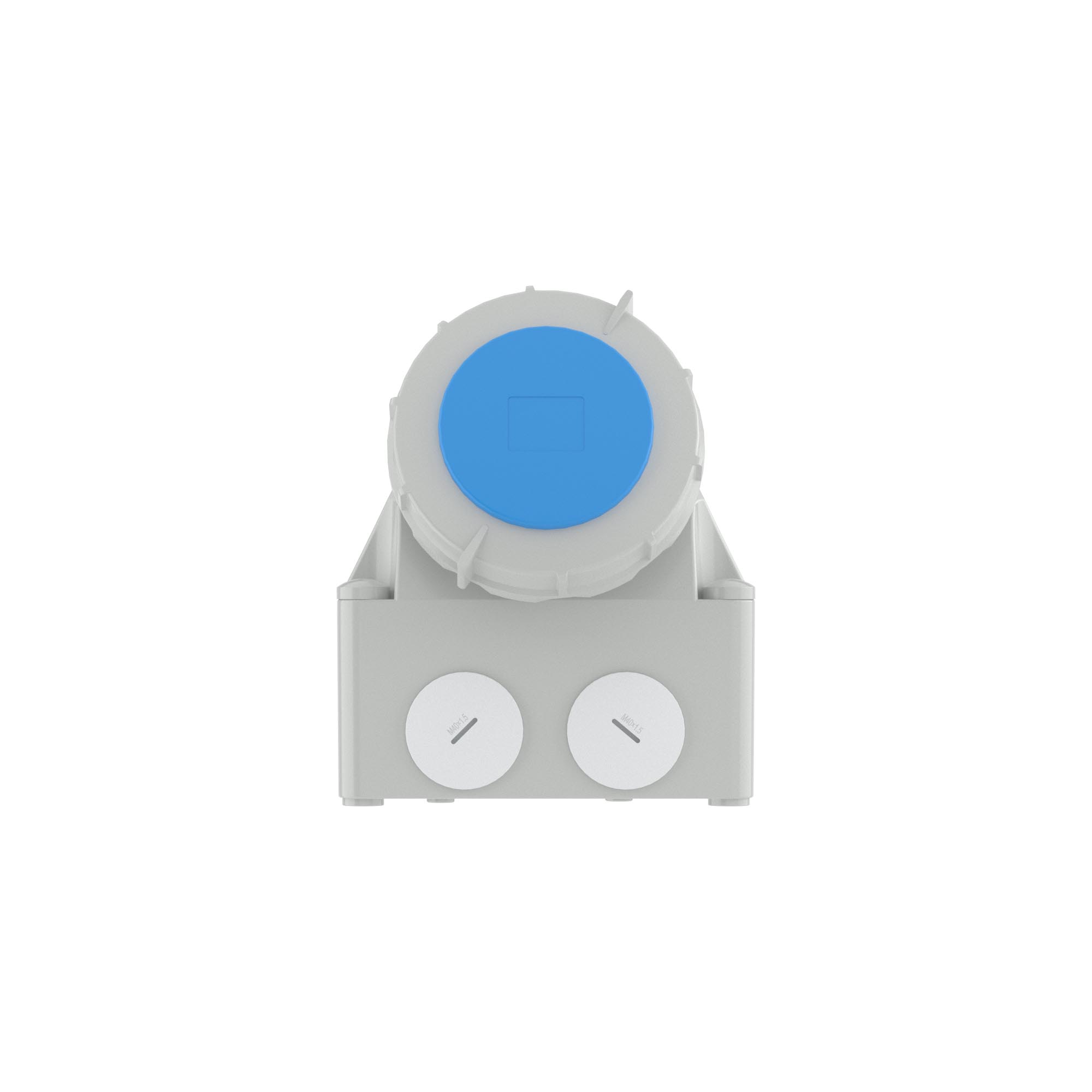

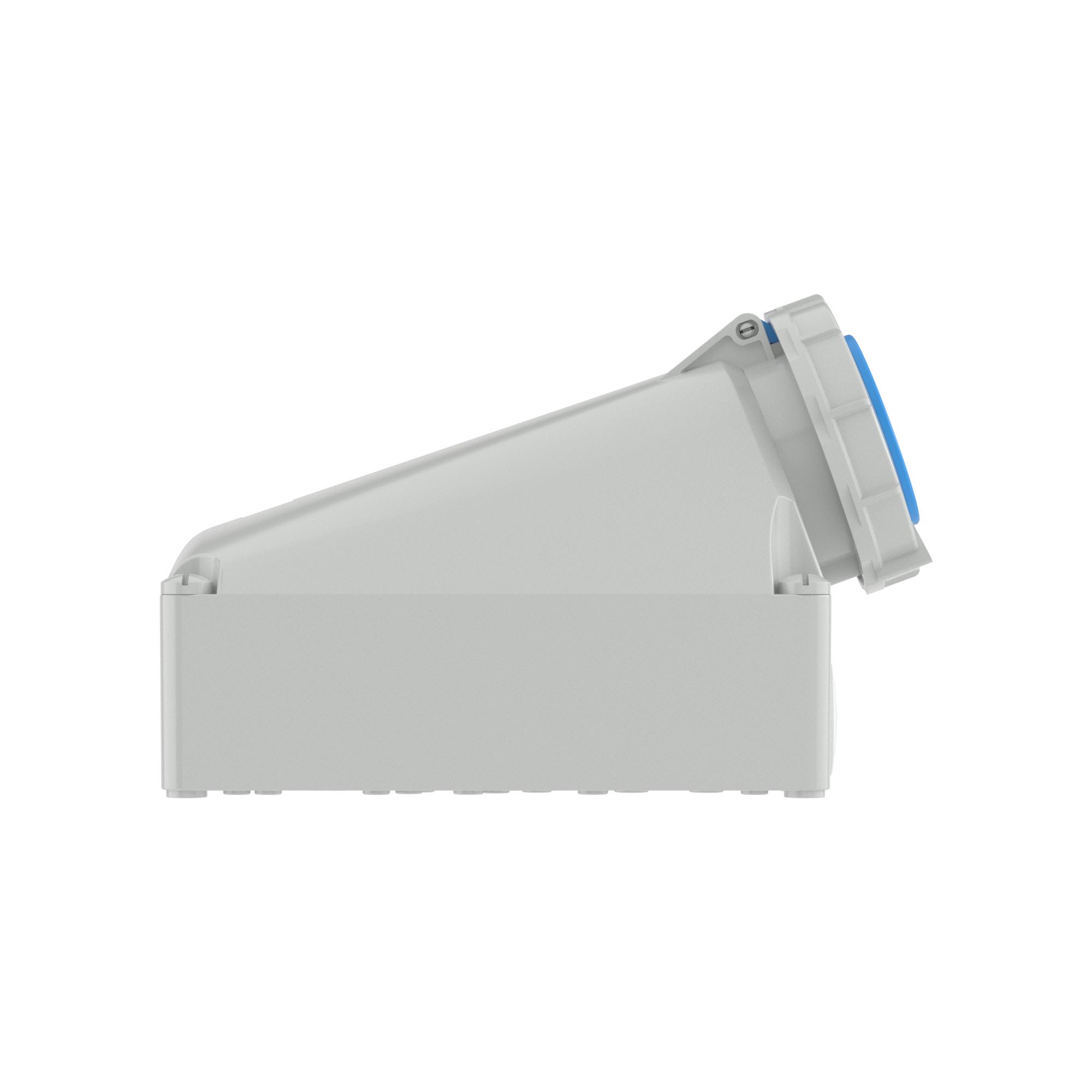

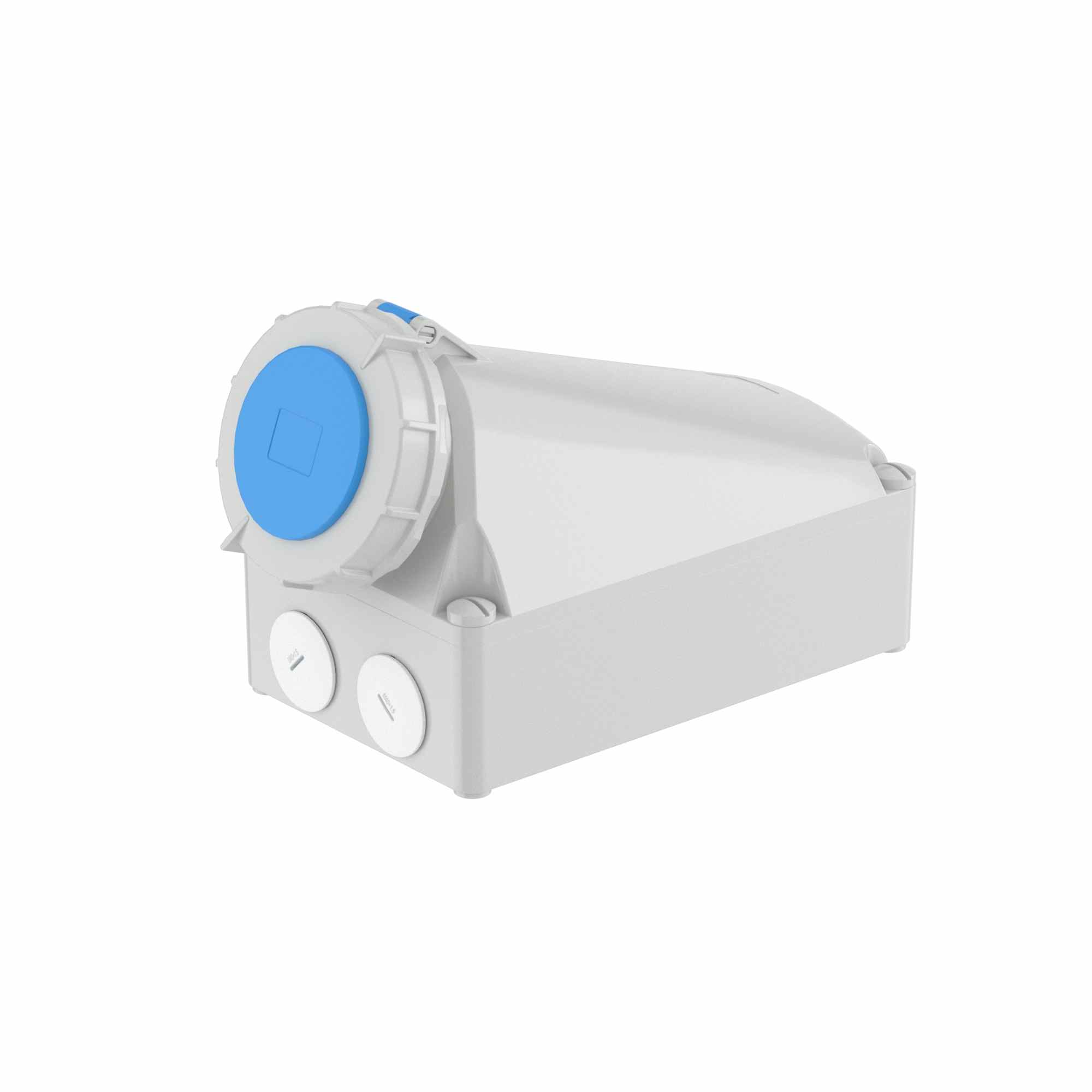

Surface mounting socket IP67 125A 2P+E 230V

Code: DIS51512553
Surface mounting socket IP67 125A 2P+E 230V
Surface mounting socket IP67 125A 2P+E 230V
Height, mm 346
Width, mm 135
Temperature of operation, °C 60
Shock resistance, J 5
Depth, mm 157
Model Surface mounted (plaster)
Number of poles 3
Material Plastic
Type of fastening External mounting
IEC-amperage, A 125
Degree of protection (IP) IP67
Military model No
Identification colour Blue
Voltage acc. EN 60309-2 230 V (50+60 Hz) blue
Connection system Screwed terminal
Contact less detection of the sense of rotation No
Angle of plug Straight
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Flange size vertical 114
Flange size horizontal 90
Width of device 93
Height of device 162
Depth of device 162

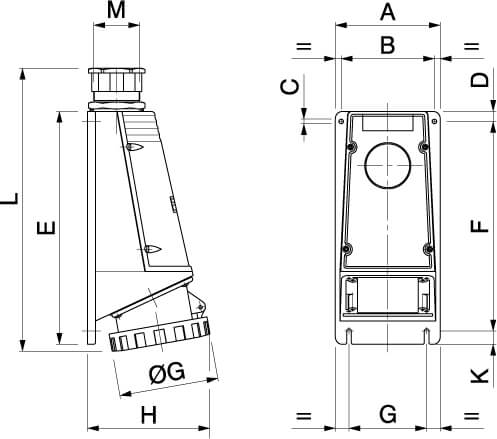

Drawings
