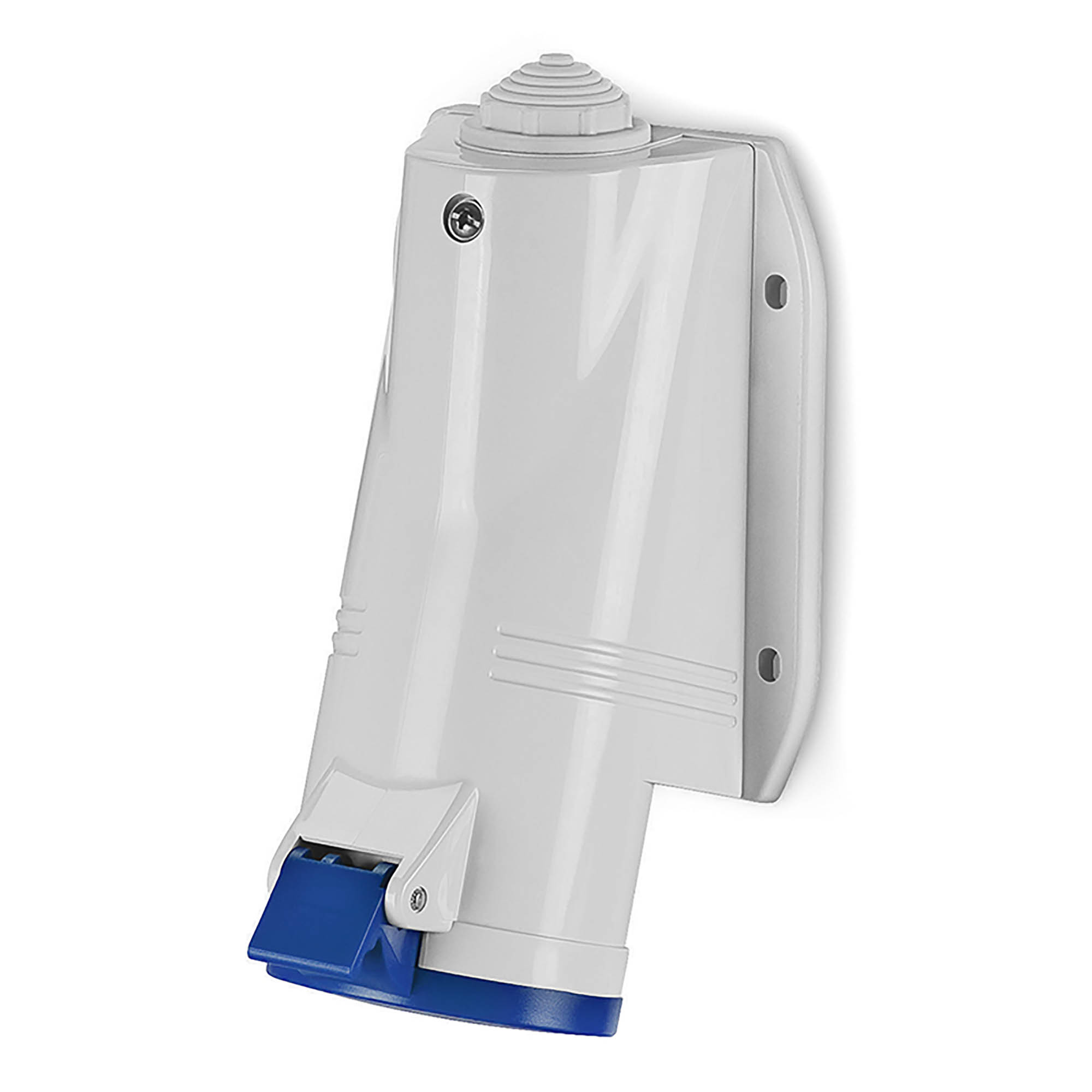

Surface mounting socket IP44 16A 2P+E 230V

Code: DIS5131653
Model Surface mounted (plaster)
Number of poles 3
Material Plastic
Type of fastening External mounting
IEC-amperage, A 16
Degree of protection (IP) IP44
Military model No
Identification colour Blue
Voltage acc. EN 60309-2 230 V (50+60 Hz) blue
Connection system Screwed terminal
Contact less detection of the sense of rotation No
Angle of plug Straight
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Flange size vertical 87
Flange size horizontal 70
Width of device 65
Height of device 162
Depth of device 162
Height, mm 133
Width, mm 76
Temperature of operation, °C 60
Shock resistance, J 5
Depth, mm 98

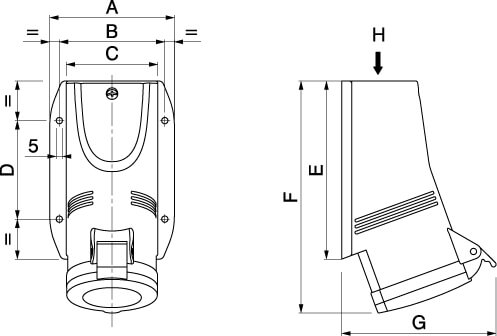

Drawings
