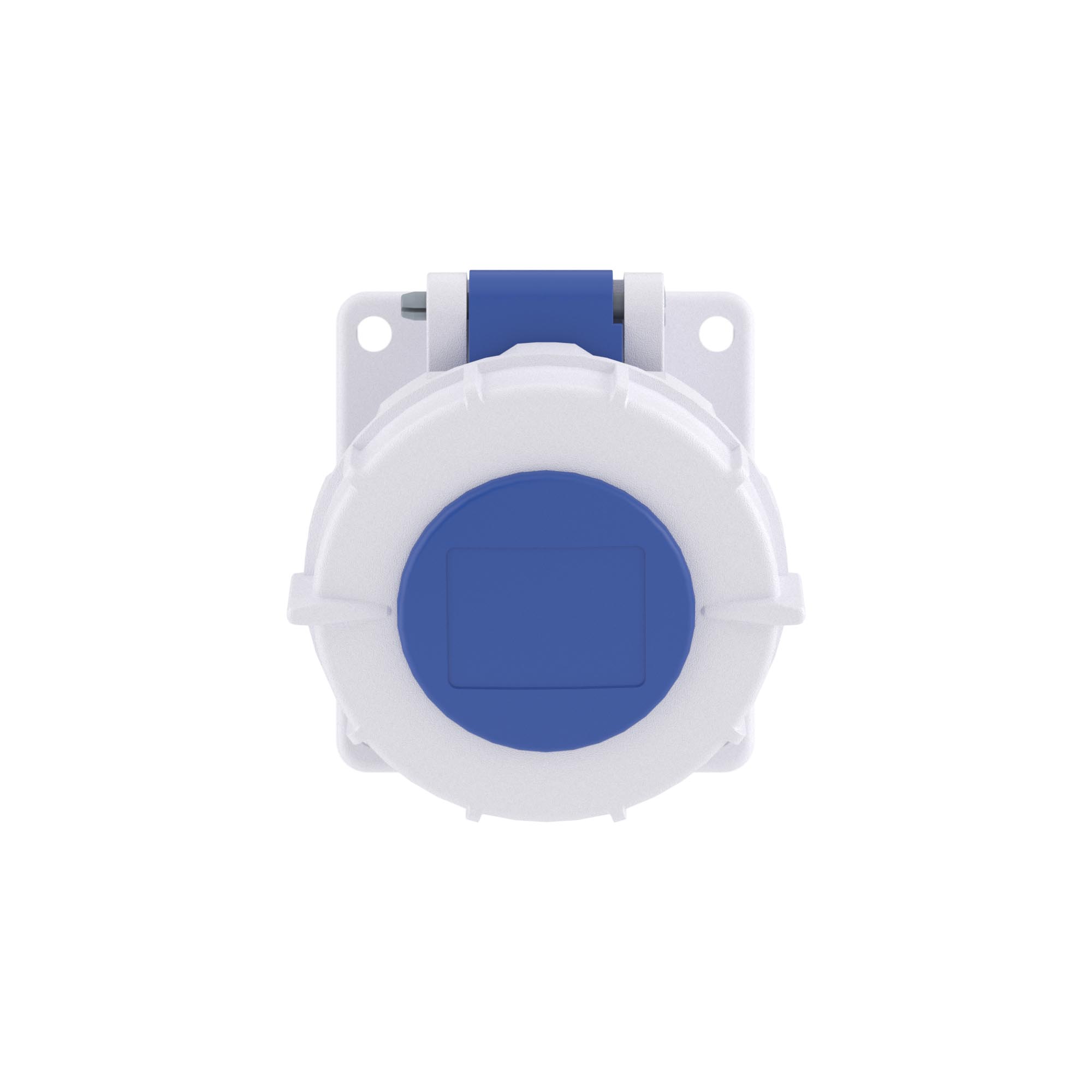

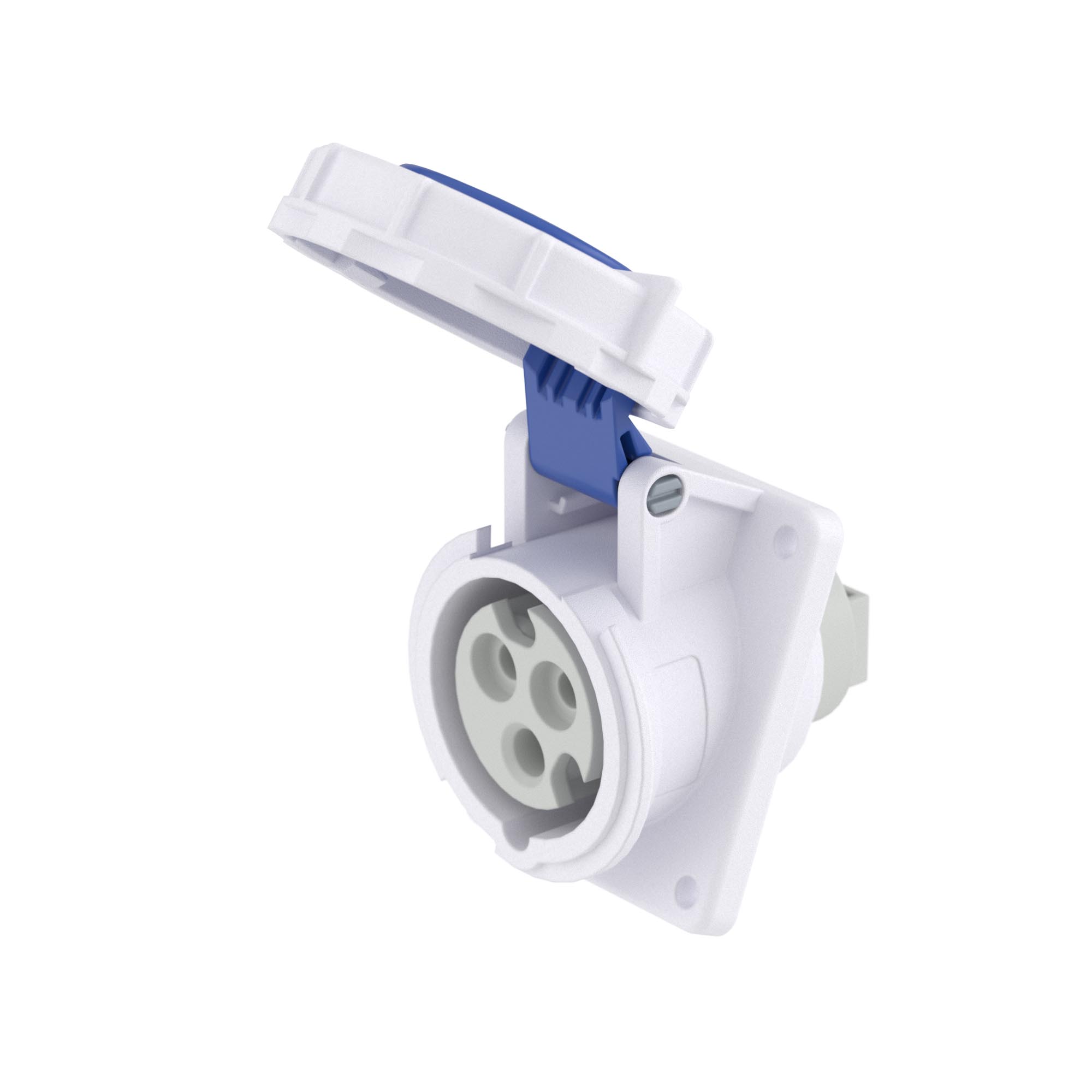

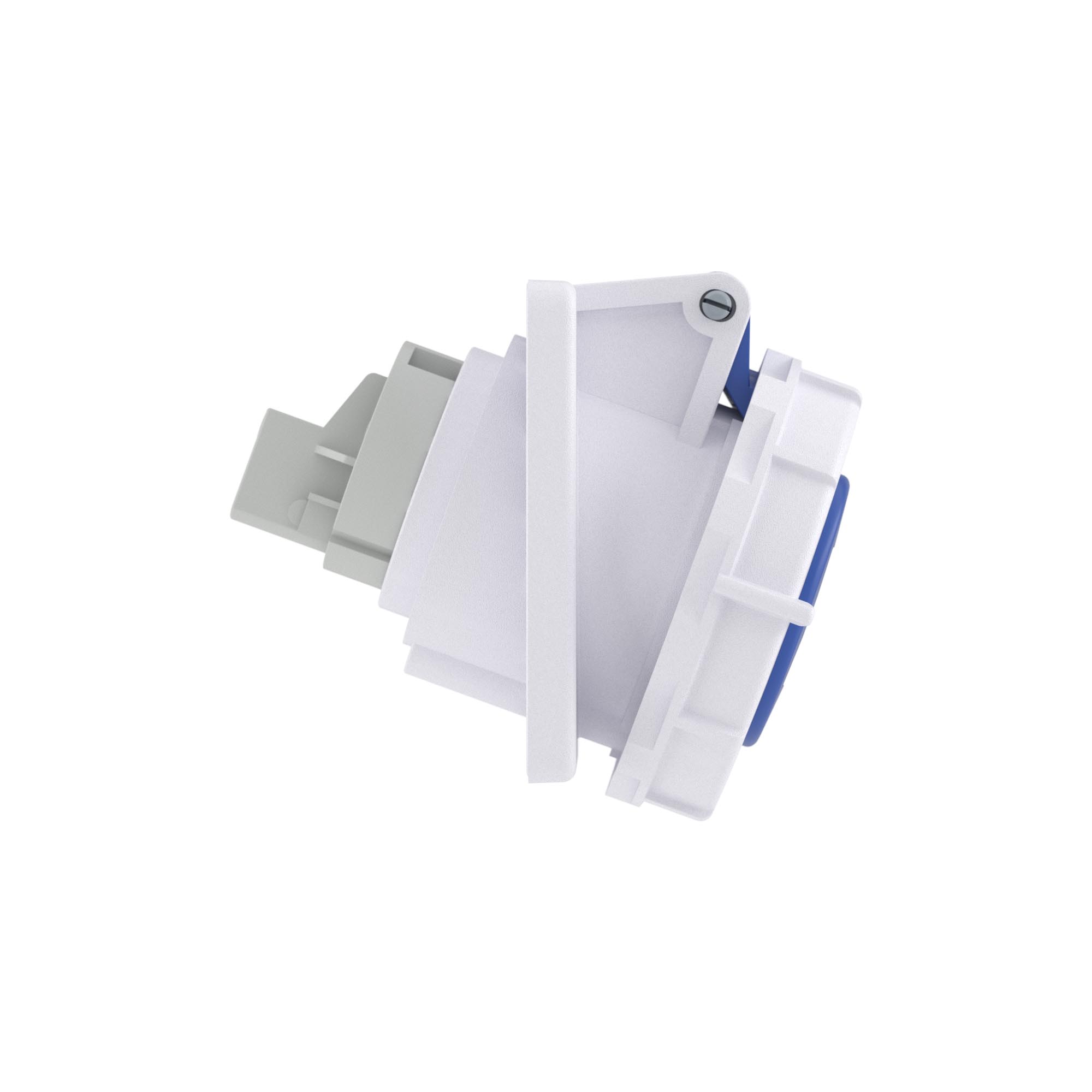

Flush mounting angled socketIP67 32A 2P+E 230V

Code: DIS4183263
Number of poles 3
Material Plastic
IEC-amperage, A 32
Degree of protection (IP) IP67
Military model No
Clock hour position, h 6
Identification colour Blue
Voltage acc. EN 60309-2 230 V (50+60 Hz) blue
Flange size vertical, mm 106
Flange size horizontal, mm 90
Angle of plug Angled
Connection system Screwed terminal
Contact less detection of the sense of rotation No
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Width of device 70
Height of device 109
Depth of device 109
Color gray
Material of case Polyamide
Height, mm 106
Width, mm 90
Temperature of mounting, °C -50...+40
Ingress Protection rating, IP IP67
Temperature of operation, °C -50 - +40
Temperature of operation, °C 60
Shock resistance, J 5
Depth, mm 61

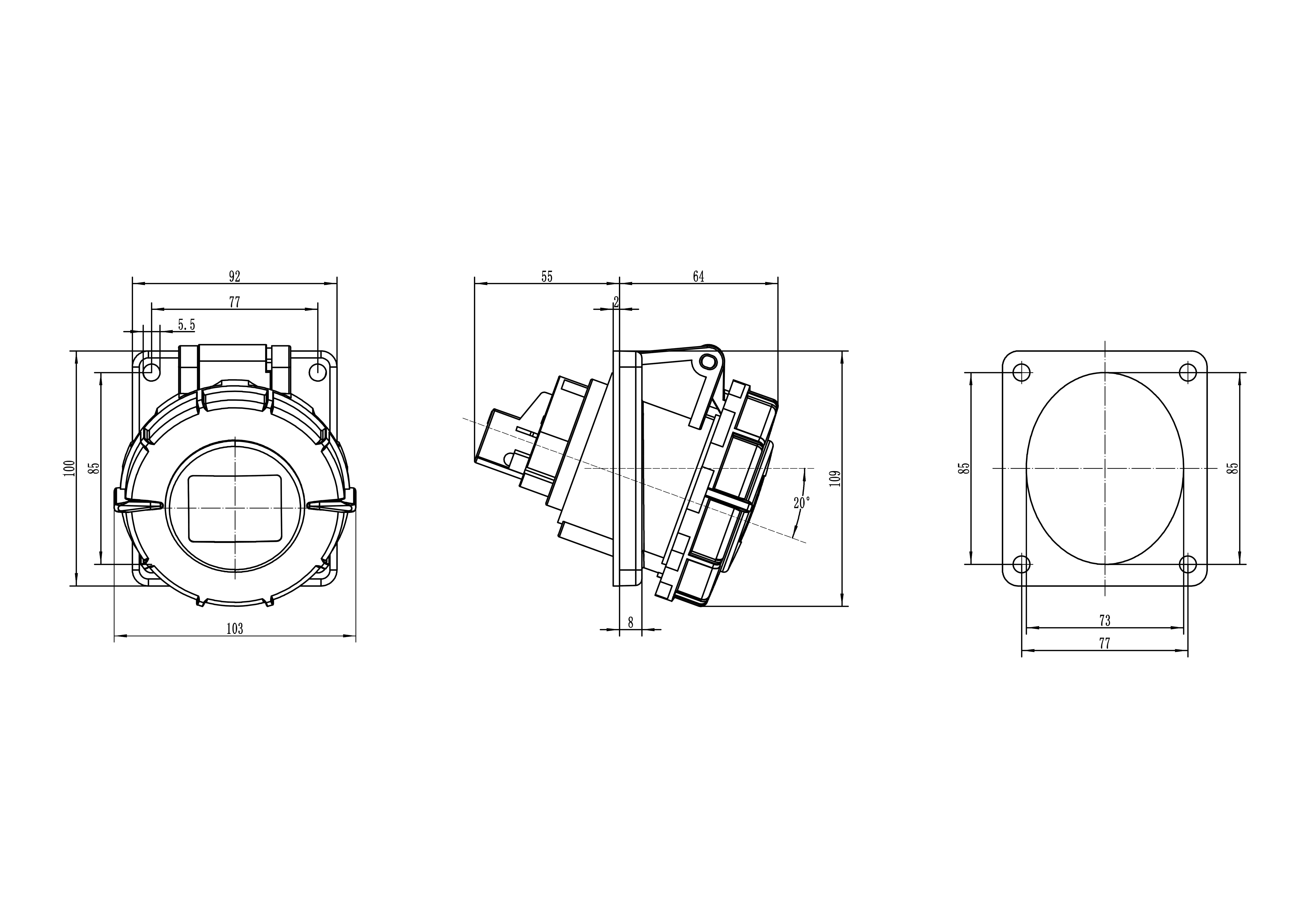

Drawings
