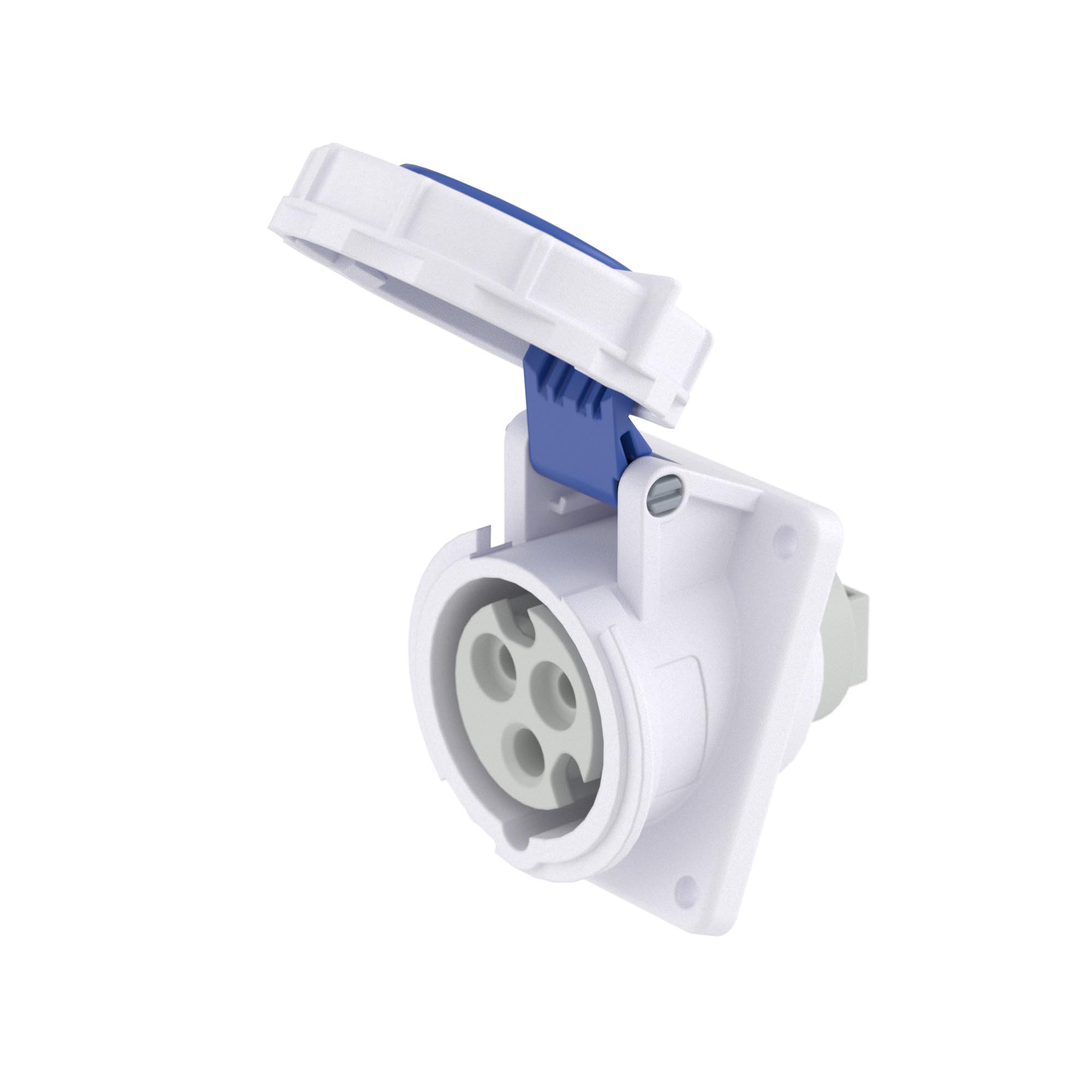

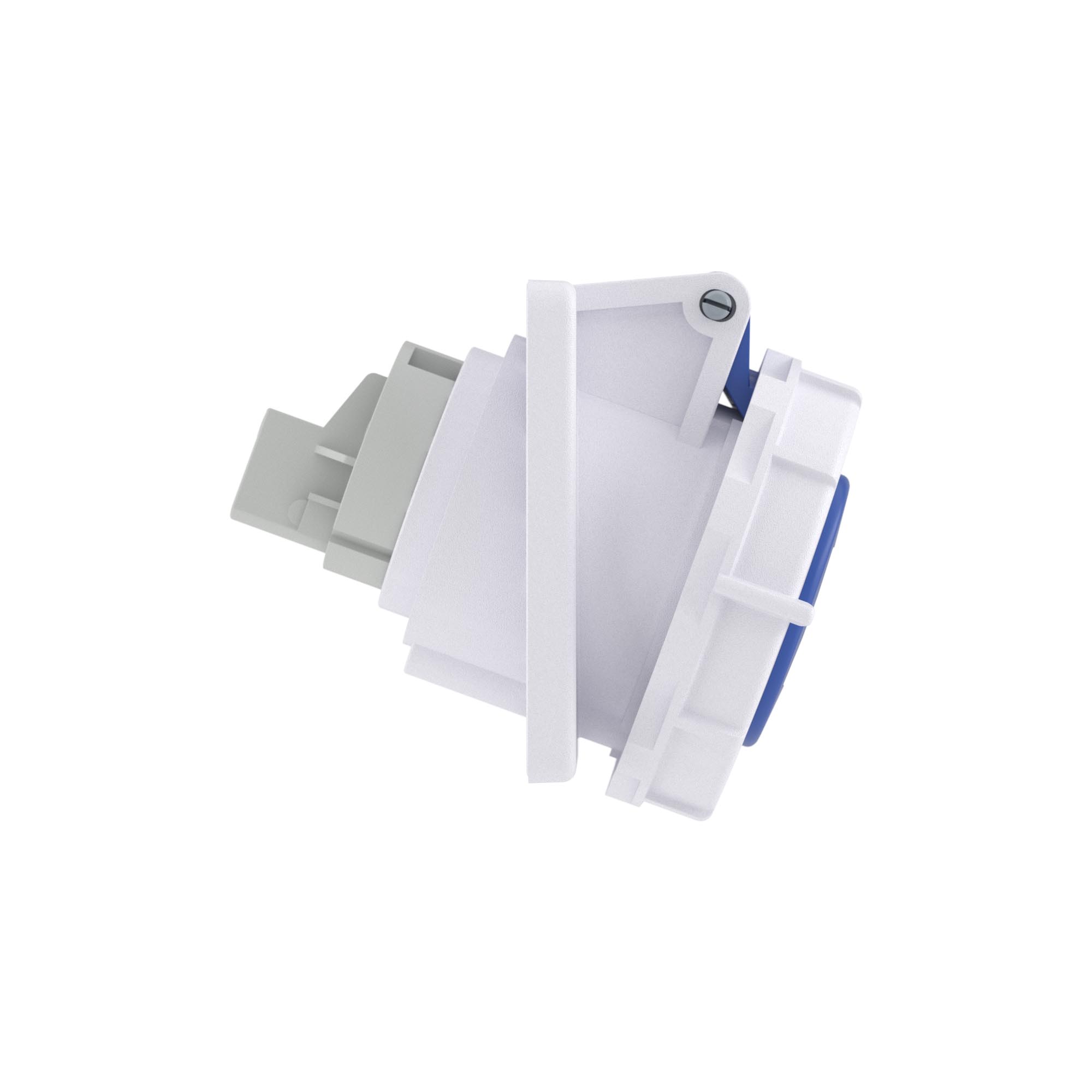

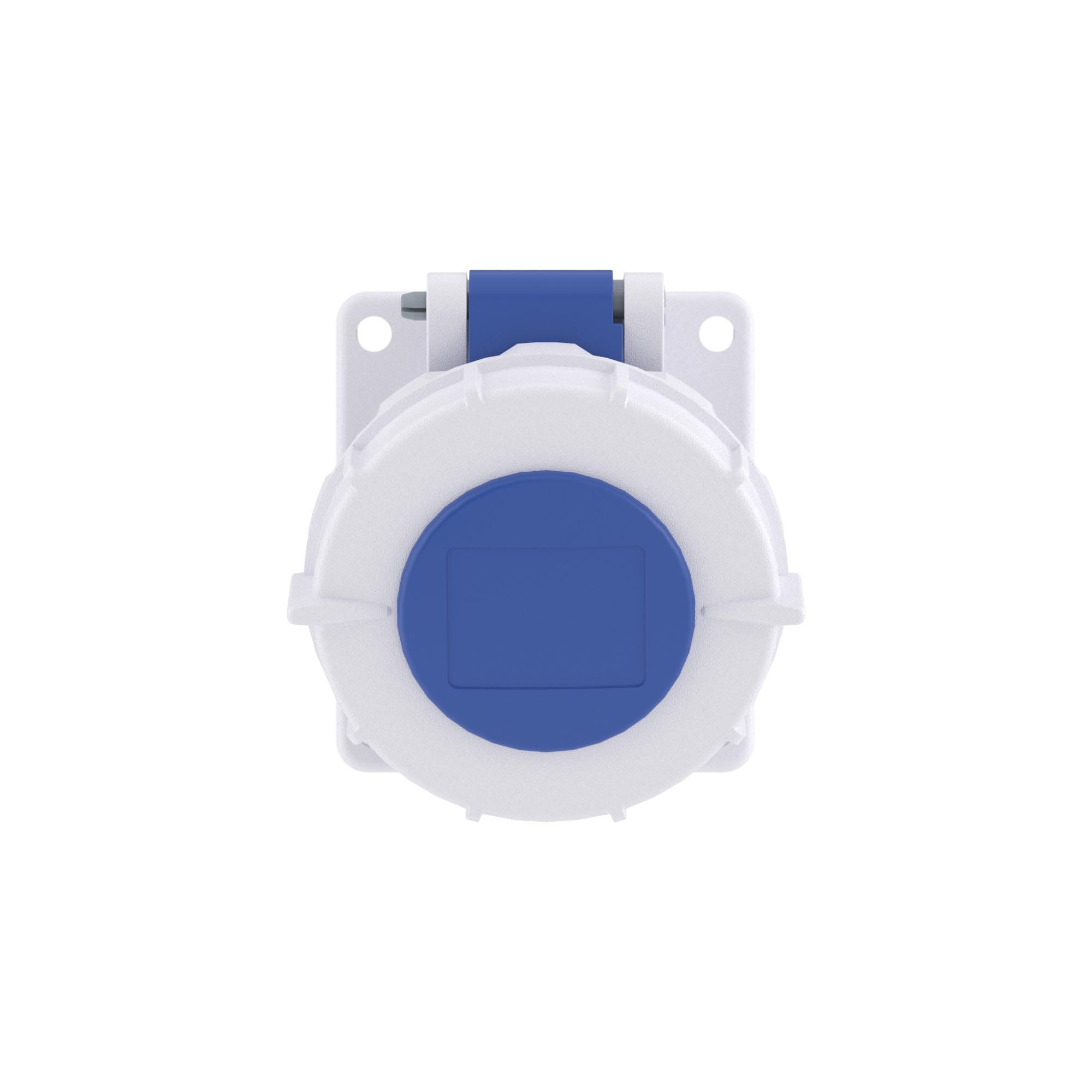

Flush mounting angled socketIP67 16A 2P+E 230V

Code: DIS4181663
Flush mounting angled socketIP67 16A 2P+E 230V
Flush mounting angled socketIP67 16A 2P+E 230V
Number of poles 3
Material Plastic
IEC-amperage, A 16
Degree of protection (IP) IP67
Military model No
Clock hour position, h 6
Identification colour Blue
Voltage acc. EN 60309-2 230 V (50+60 Hz) blue
Flange size vertical, mm 87
Flange size horizontal, mm 70
Angle of plug Angled
Connection system Screwed terminal
Contact less detection of the sense of rotation No
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Width of device 112
Height of device 220
Depth of device 220
Color gray
Material of case Polyamide
Height, mm 87
Width, mm 70
Temperature of mounting, °C -50...+40
Ingress Protection rating, IP IP67
Temperature of operation, °C -50 - +40
Temperature of operation, °C 60
Shock resistance, J 5
Depth, mm 52

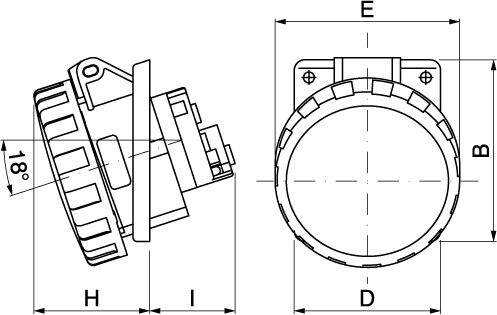

Drawings
Seria Name Eplan DWG
Industrial plugs
The System "Quadro"
RAR
27.23 MB
Industrial plugs
The system "Quadro" industrial connectors
ZIP
31.52 MB
Certificates
Name Document
The certificate of expert opinion on an electrical plug connectors for industrial use series “SCAME PARRE S.p.A.”
PDF
5.39 MB
Certificate of conformity to for the sockets and plugs (50 – 400 V) SCAME PARRE S.P.A.
PDF
4.91 MB
