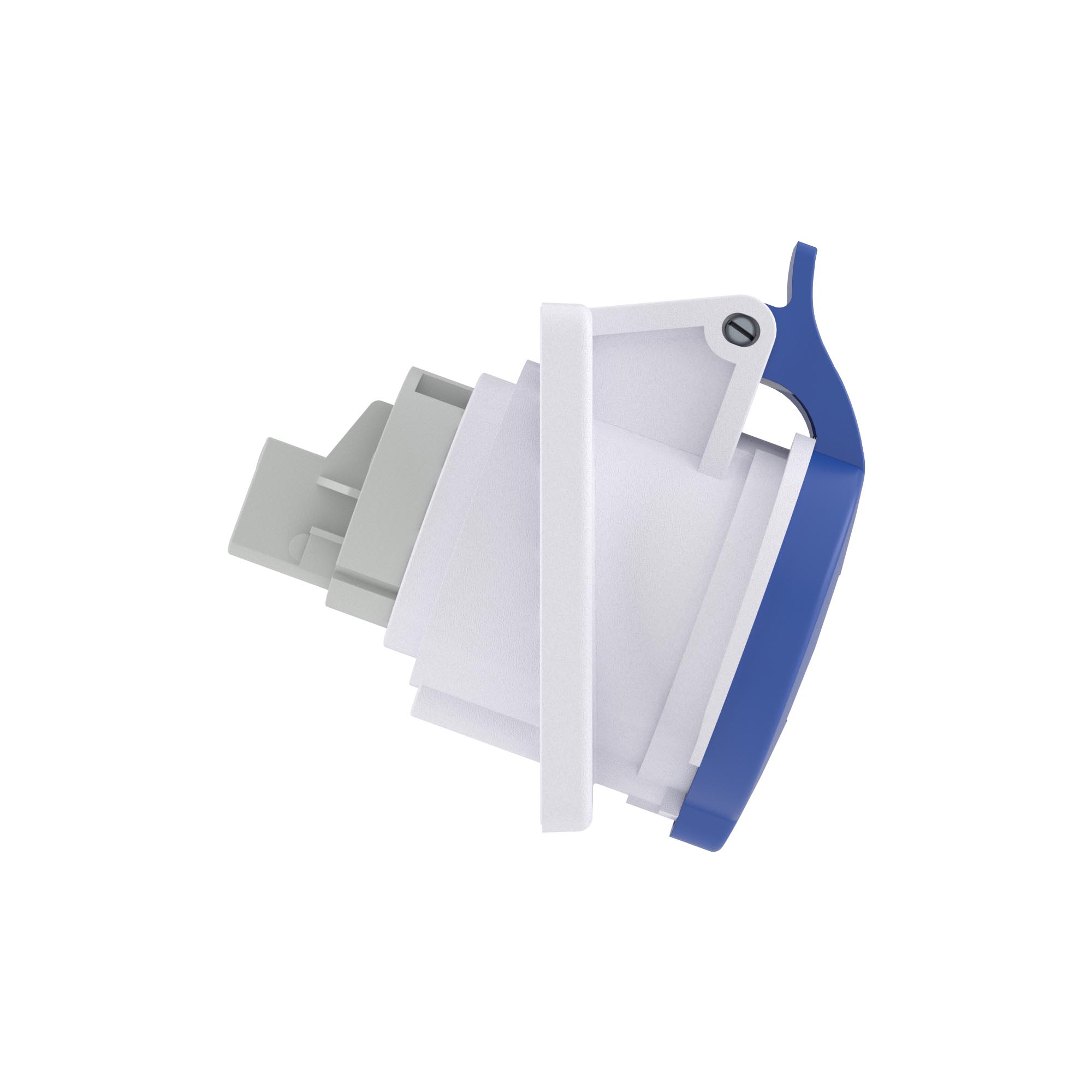

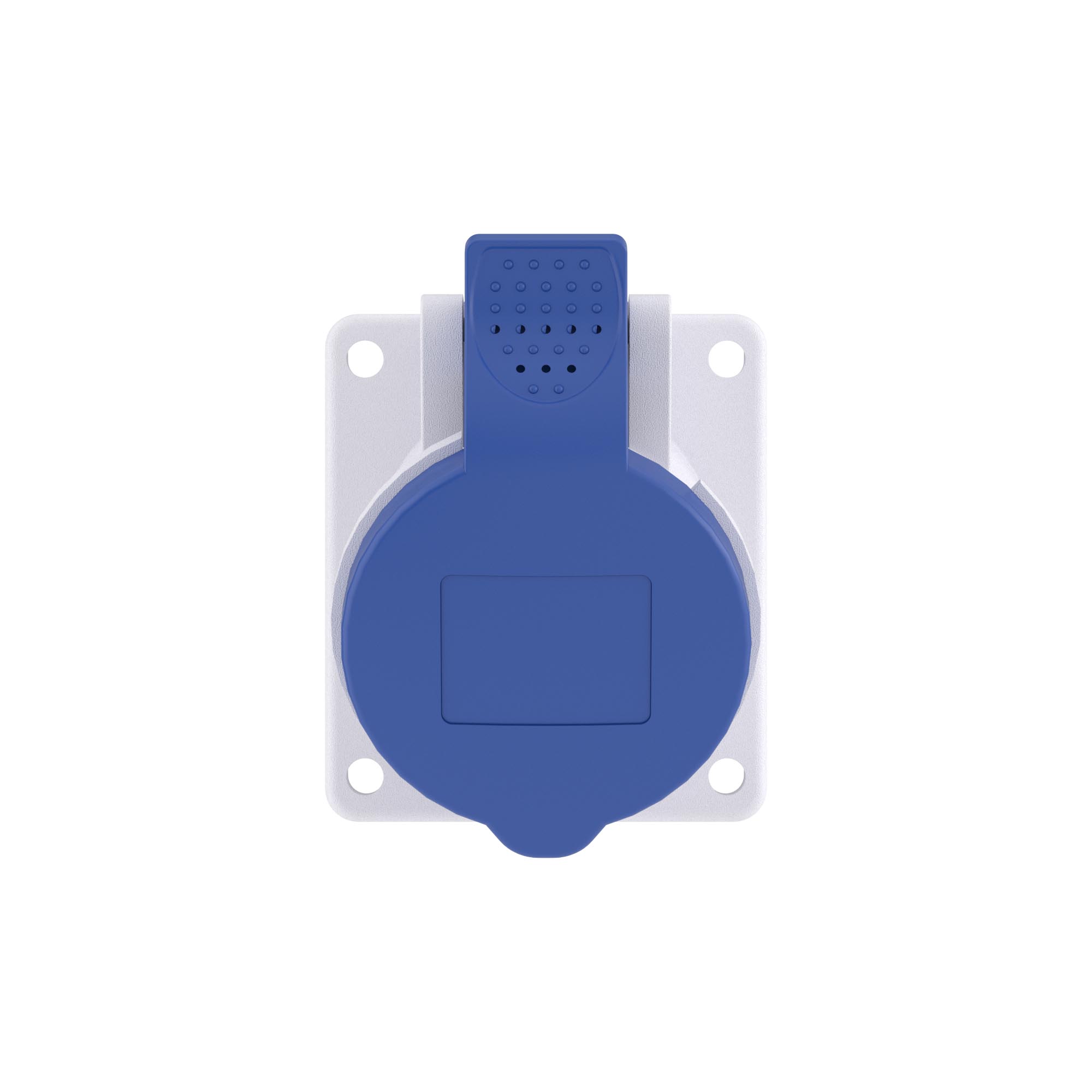

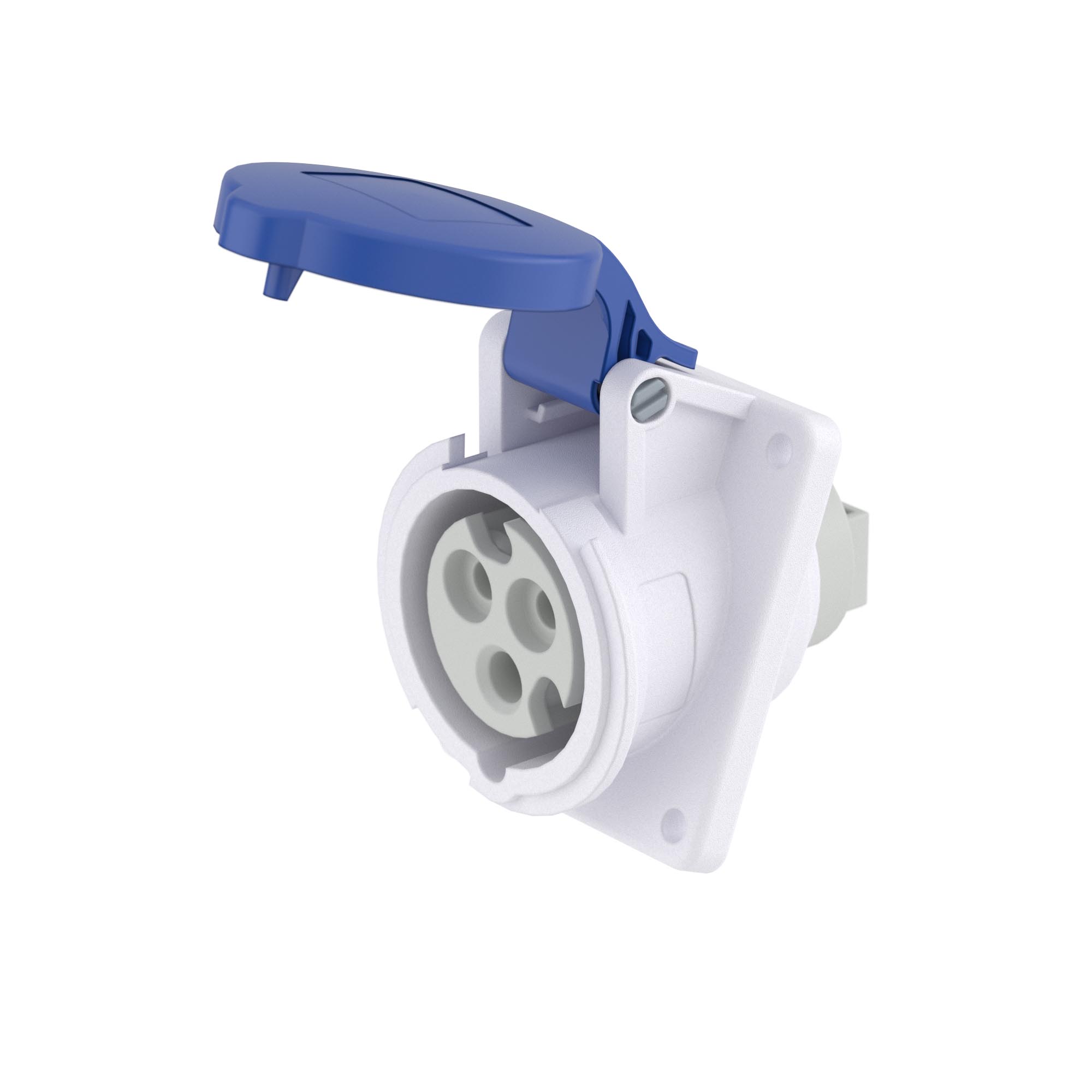

Flush mounting angled socket IP44 16A 2P+E 230V

Code: DIS4131663
Number of poles 3
Material Plastic
IEC-amperage, A 16
Degree of protection (IP) IP44
Military model No
Clock hour position, h 6
Identification colour Blue
Voltage acc. EN 60309-2 230 V (50+60 Hz) blue
Flange size vertical, mm 87
Flange size horizontal, mm 70
Angle of plug Angled
Connection system Screwed terminal
Contact less detection of the sense of rotation No
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Width of device 65
Height of device 162
Depth of device 162
Color gray
Material of case Polyamide
Height, mm 87
Width, mm 70
Temperature of mounting, °C -50...+40
Ingress Protection rating, IP IP44
Temperature of operation, °C -50 - +40
Temperature of operation, °C 60
Shock resistance, J 5
Depth, mm 45

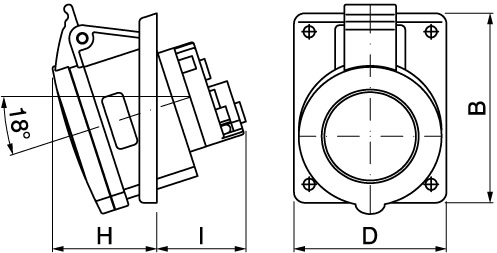

Drawings
