Temperature of operation, °C 60
Shock resistance, J 5
Model Surface mounted (plaster)
Number of poles 3
Material Plastic
Type of fastening External mounting
IEC-amperage, A 63
Degree of protection (IP) IP67
Military model No
Identification colour Blue
Voltage acc. EN 60309-2 230 V (50+60 Hz) blue
Connection system Screwed terminal
Contact less detection of the sense of rotation No
Angle of plug Straight
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Flange size vertical 575
Flange size horizontal 280
Width of device 65
Height of device 162
Depth of device 162

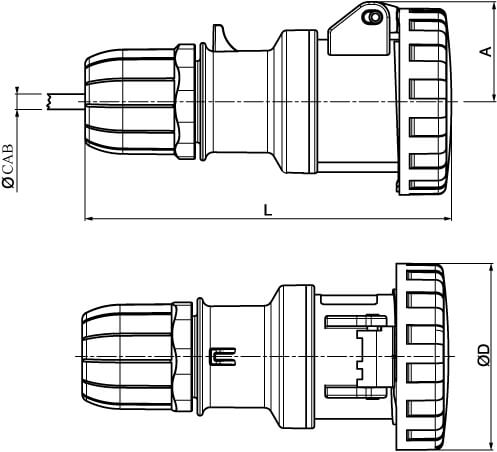

Drawings
Seria Name Eplan DWG
Quadro - industrial plugs
Quadro - industrial plugs
